Manitowoc Grove GMK 5250L Maintenance Manual

Maintenance work on the carrier
7.4 Fuel system
09.03.2018
Maintenance manual 3 302 744 en 7 - 29
GMK5250L
7.4.2 Replacing fuel filter 1
Spare parts and
tools
– Receptacle, approx. 5 l (1.5 gal); à p. 2 - 4.
– Torque wrench for torque of 55 Nm (40.5 lbf ft).
Prerequisites – The truck crane must be level and on outriggers; à Operating manual.
– The main boom must be fully raised; à Operating manual.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
– If the fuel is contaminated: Reduce the maintenance interval.

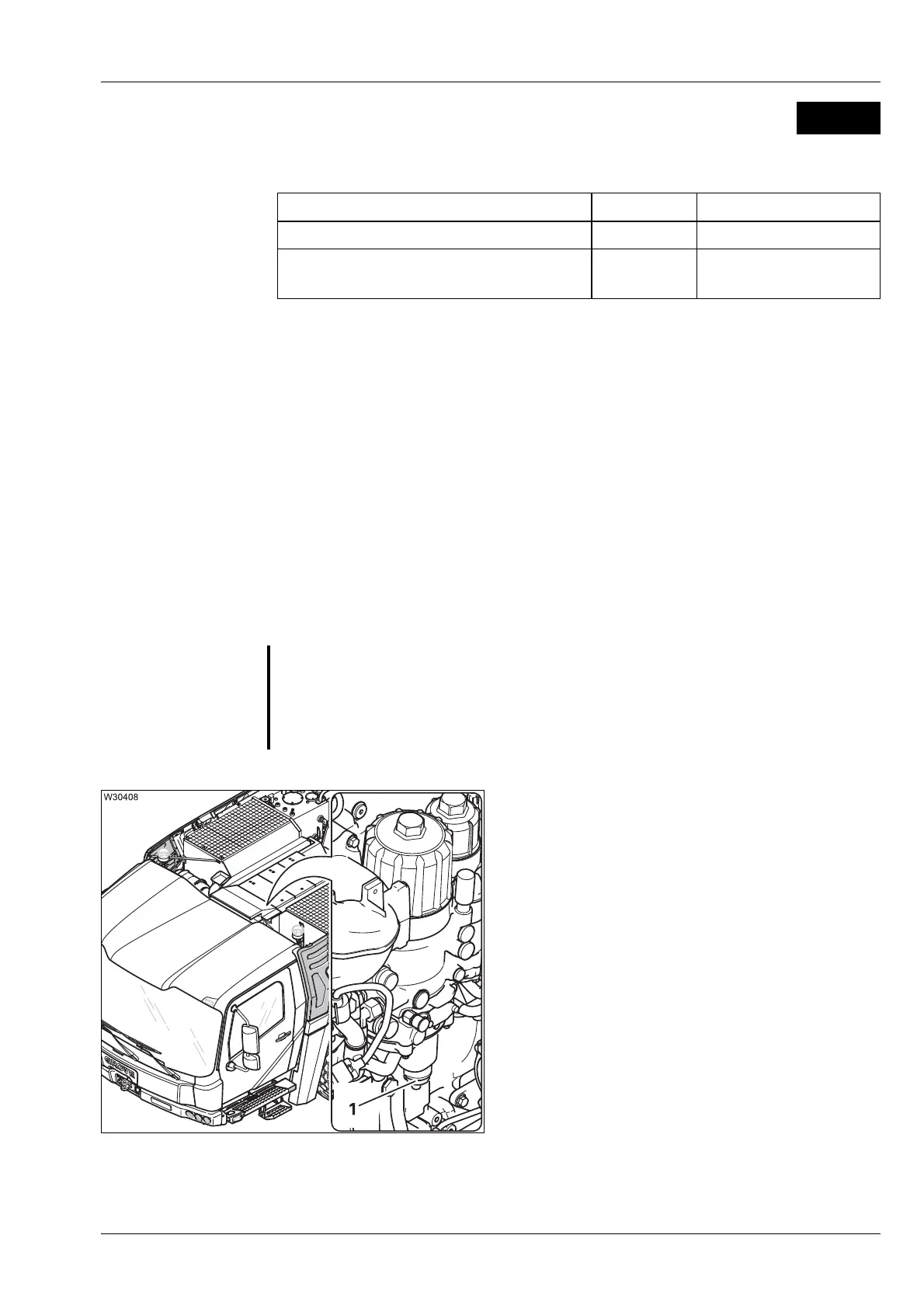

Changing
• Place a receptacle underneath the filter.
• Open the valve (1) and let the consumable
drain out.
s
M 3
Designation Quantity GROVE part no.
Filter (large) 1 04161567
Alternatively:
Set of both filters 1 + 2 (large + small)
1 04180966
O
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that have leaked.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
