Manitowoc Grove GMK 5250L Maintenance Manual

Maintenance work on the carrier
7.5 Exhaust system with exhaust emission control
09.03.2018
Maintenance manual 3 302 744 en 7 - 33
GMK5250L
7.5 Exhaust system with exhaust emission control
Overview To comply with the exhaust emission regulations, the truck crane may
only be run with the exhaust system with SCR catalytic converter
(SCR = Selective Catalytic Reduction).
The exhaust gas is cleaned with an AdBlue system (DEF). To do this, AdBlue
(DEF) (Diesel Exhaust Fluid) from the AdBlue tank is injected into the
exhaust system.
The motor output is automatically sharply reduced when there is not
enough AdBlue solution available. Driving with an empty AdBlue tank will
invalidate the truck crane's licence for use on public roads;
à Operating
manual
, à Engine manufacturer's documentation.

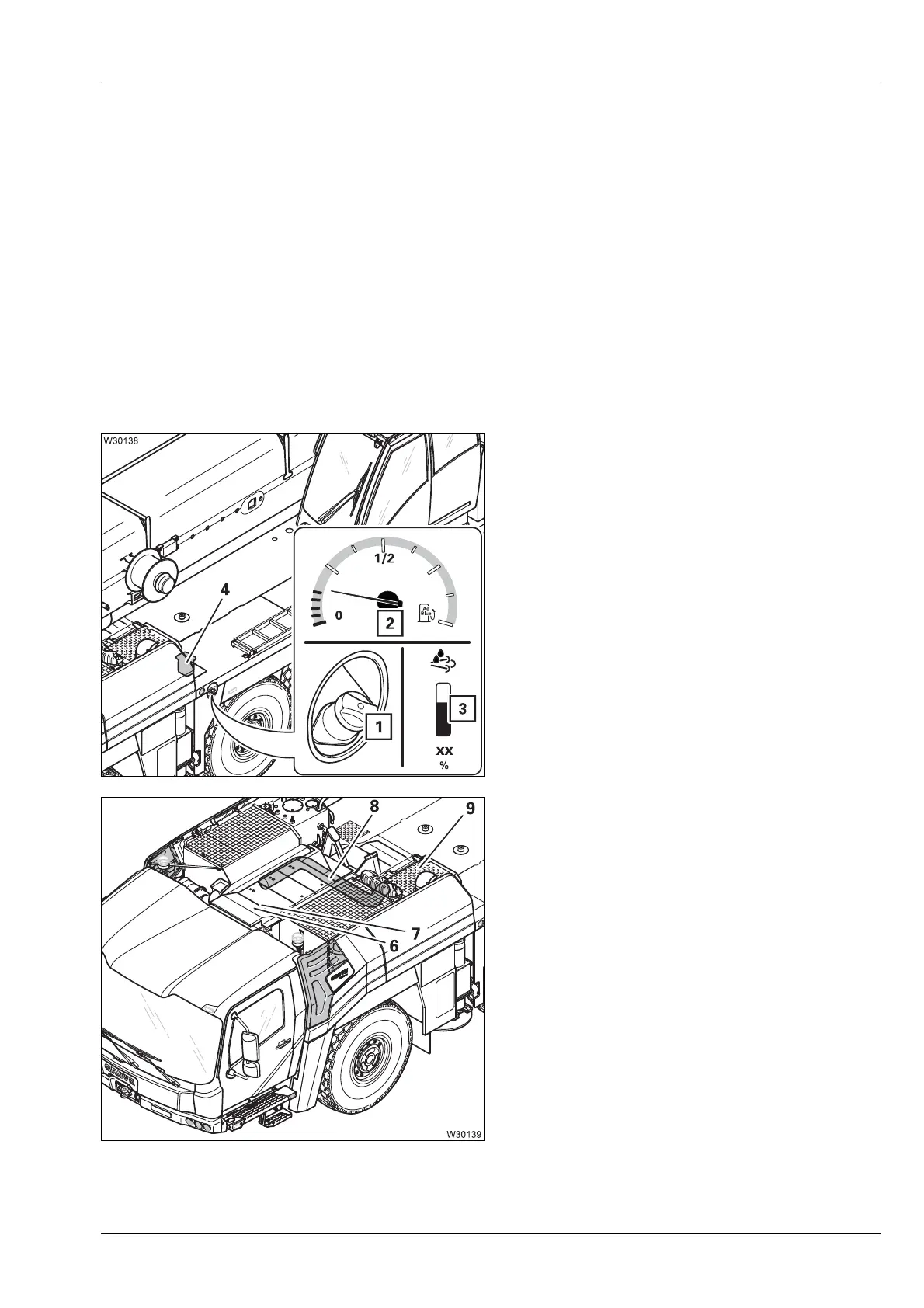

AdBlue system
1 AdBlue tank
4 Pump unit
for pumping AdBlue to the dosing unit
on the diesel engine and for pumping
engine coolant for preheating the
AdBlue tank.
2 Tank level gauge, AdBlue tank
3 Tank level gauge, AdBlue tank
with warning symbol
6 Diesel engine
with dosing unit for AdBlue (compressed
air supply) and a solenoid valve for pre-
heating the AdBlue tank using engine
coolant.
7 Injection nozzle
for injecting the AdBlue/compressed air
mixture.
8 Exhaust pipes
9 Exhaust silencer
with SCR catalytic converter
