Maintenance work on the superstructure
8.12 Electrical system
8 - 80 3 302 744 en Maintenance manual
GMK5250L
09.03.2018
• Have faulty lamps in the spotlights replaced only by qualified personnel.
8.12.2 Have the battery on the electronics board replaced
Spare parts and
tools
Prerequisites – The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
Changing

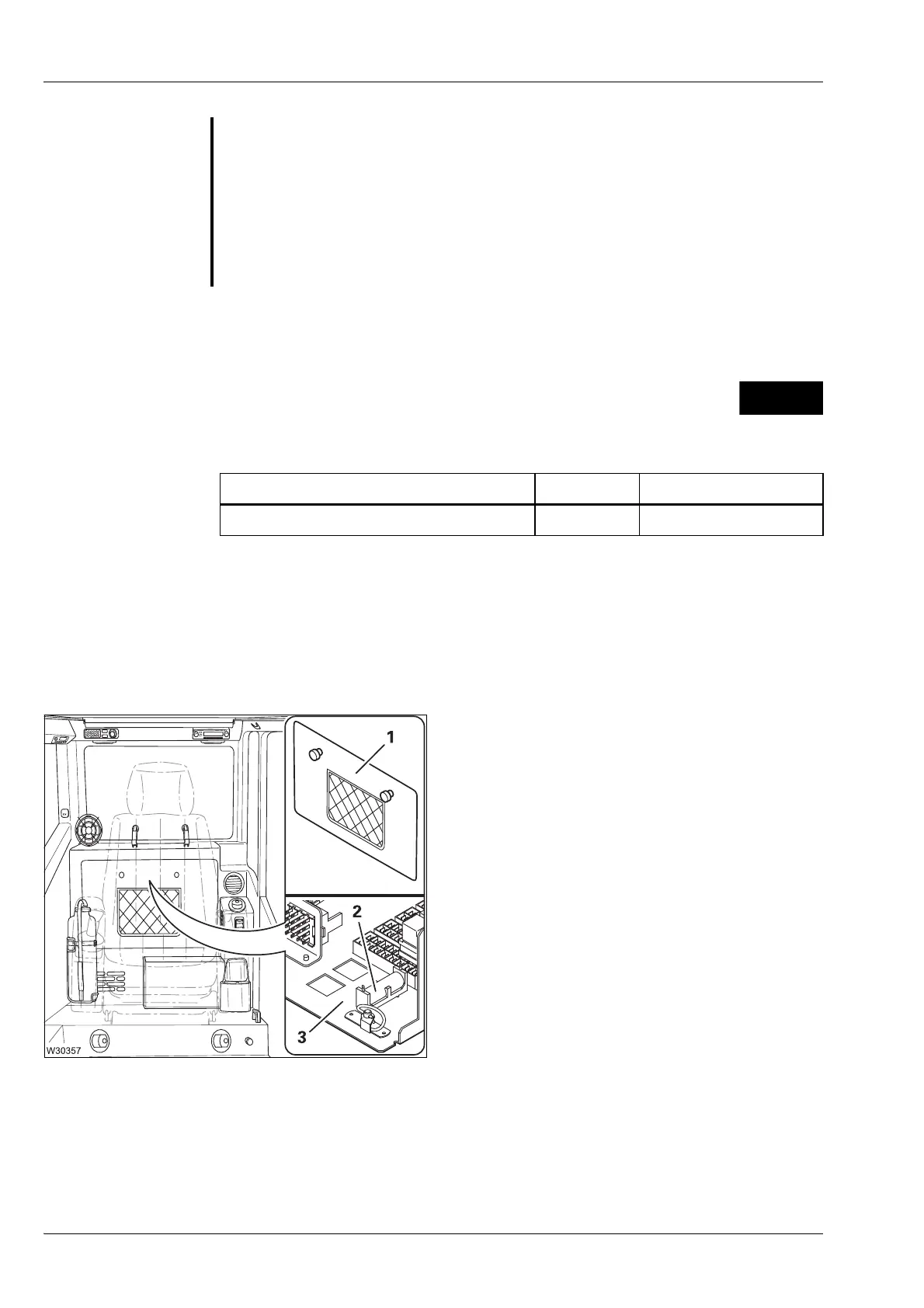

• Open the cover (1) behind the seat in the
crane cab.
• Changing the battery (2) on the electronics
board (3).
• Close the cover.
• Check the correct operation of all controls.
G
Risk of accidents from exploding glass bodies and high voltage.
The glass bodies of gas discharge lamps (xenon lights) are pressurised. If
the lamp breaks, the glass splinters explosively and shards scatter.
Xenon lights operate at high voltage. While changing the lamp, there is still
a danger of residual voltage discharging (electric shock) even when the bat-
tery master switch is switched off.
Have faulty lamps replaced only by properly qualified personnel who use
the relevant protective equipment.
Y 10
Designation Quantity GROVE part no.
Lithium battery 3.6 V 1 03143172
