Manitowoc Grove GMK 5250L Maintenance Manual

Maintenance work on the carrier
7.6 Transmission
7 - 42 3 302 744 en Maintenance manual
GMK5250L
09.03.2018
7.6.3 Checking the transmission oil level
Spare parts and
tools
– Receptacle, approx. 5 l (1.5 gal); à p. 2 - 4.
– Torque wrench for torque of 25 Nm (18.4 lbf ft).
Prerequisites – The gear oil must be at operating temperature (70 to 95 °C (160 to 200 °F)).
– The truck crane must be raised on outriggers or parked over an inspection
pit.
– The truck crane must not running and secured against unauthorised use;
à p. 2 - 3.
Checking the oil
level

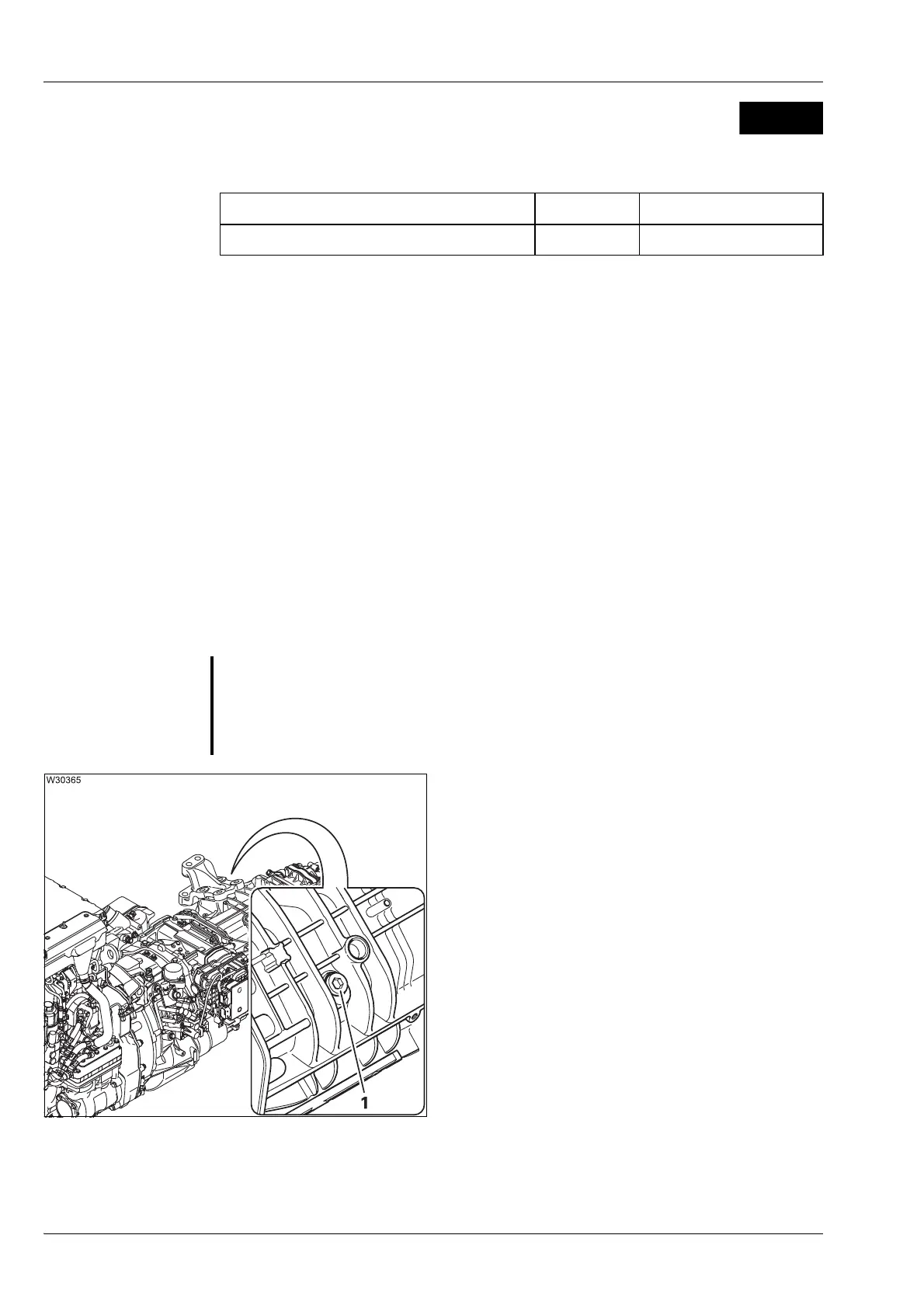

• Remove the drain plug (1).
• Check the oil level; it must reach to the lower
edge of the opening.
• Replace the gasket and tighten the drain
plug – torque 25 Nm (18.4 lbf ft).
If the oil level is too low
• Top up the oil; à p. 7 - 48.
M 12
Designation Quantity GROVE part no.
Gasket 24 x 29 Cu DIN 7603 1 00117145
S
Risk of damage to the transmission.
If the oil level is too low or too high, this can lead to malfunctions and dam-
age to the transmission.
Check the oil level at the correct intervals.
