Manitowoc Grove GMK 5250L Maintenance Manual

Maintenance work on the carrier
7.9 Axle lines
7 - 64 3 302 744 en Maintenance manual
GMK5250L
09.03.2018
Prerequisites – The truck crane must be raised on outriggers or parked over an inspection
pit.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
2
nd
and 5
th
axle
lines

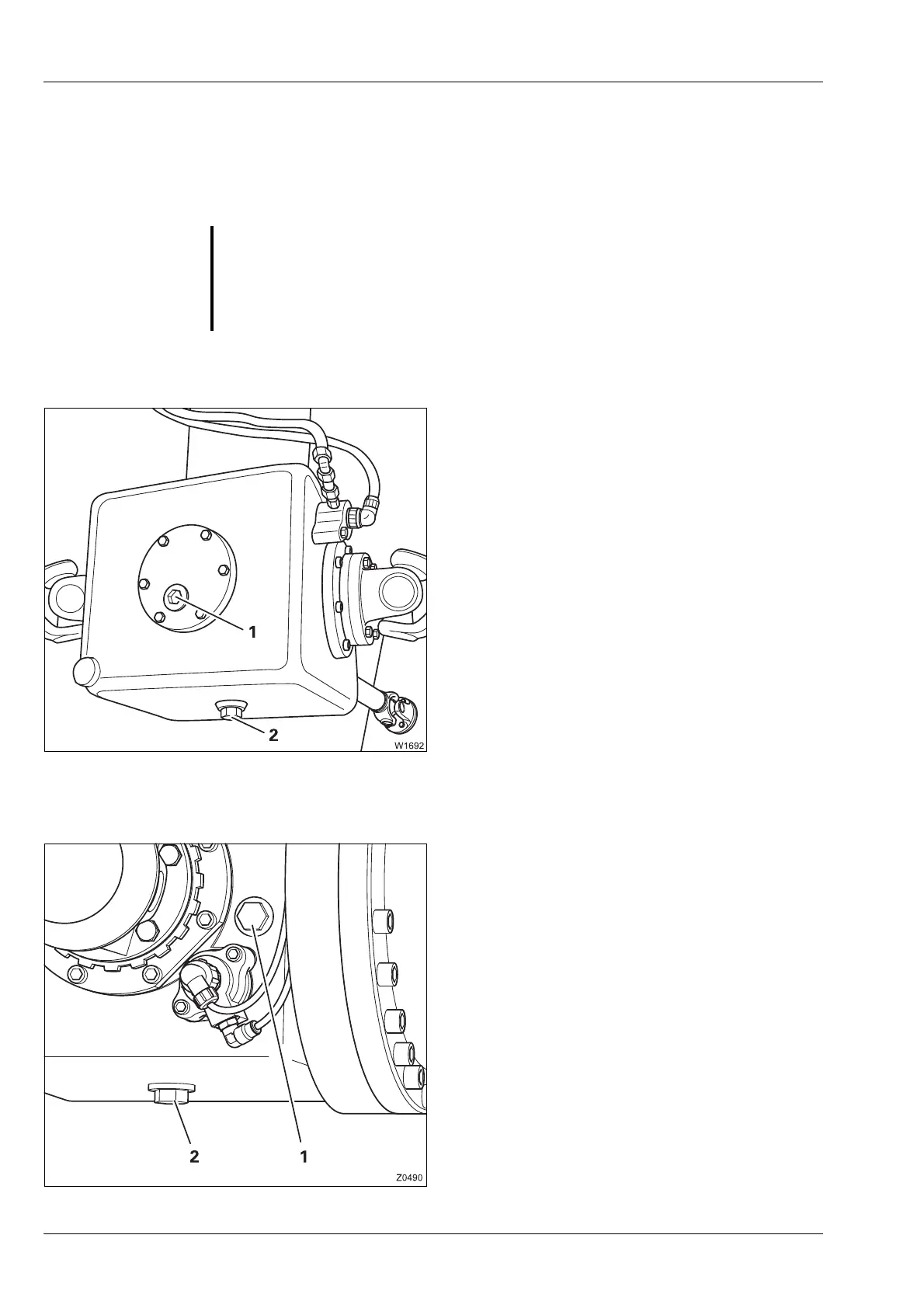

• Place a receptacle under the screw (2).
• Unscrew the screws (1) and (2) and allow the
oil to drain off.
• Fit a new gasket and tighten the drain
screw (2).
• Fill the oil up to the lower edge of the open-
ing.
• Fit a new gasket and tighten the drain
screw (1).
3
rd
axle line This axle centre drive is available only with the 10 x 8 x 10 drive and is
flanged directly to the transfer case;
à Transfer case, p. 7 - 49.
• Place a receptacle under the screw (2).
• Unscrew the screws (1) and (2) and allow the
oil to drain off.
• Fit a new gasket and tighten the drain
screw (2).
• Fill the oil up to the lower edge of the open-
ing.
• Fit a new gasket and tighten the drain
screw (1).
O
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that have leaked.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
