Maintenance work on the carrier
7.15 Hydraulic system
7 - 104 3 302 744 en Maintenance manual
GMK5250L
09.03.2018
Cleaning the
magnetic rods

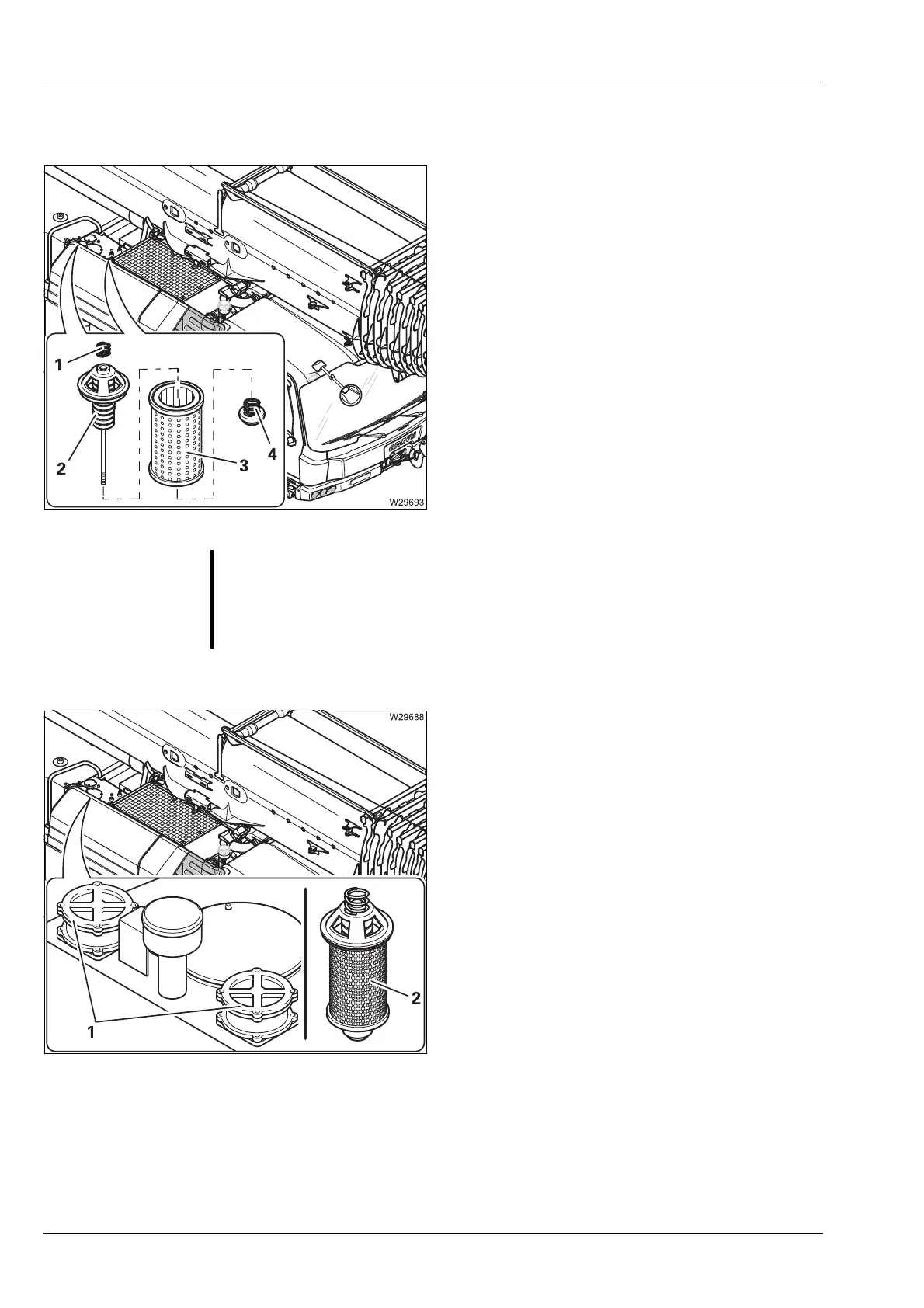

• Loosen the cover and pull out the filters.
• Place the filters in a receptacle.
• Remove the spring (1).
• Undo the nut (4).
• Take the magnetic rod (2) out of the filter
cage (3) and clean it.
• Replace any damaged parts, where neces-
sary.
• Assemble the filters (2) and insert them.
• Replace the gaskets if necessary and fasten
the cap (1).
• Start the engine and check for leaks.
S
Risk of damage to the hydraulic system.
Large amounts of metal particles are a sign of damage in the hydraulic sys-
tem. Have the hydraulic system checked by
Manitowoc Crane Care or an
authorised GROVE dealer or your qualified repair crew.
