Maintenance work on the superstructure
8.4 Slewing gear
8 - 20 3 302 744 en Maintenance manual
GMK5250L
09.03.2018

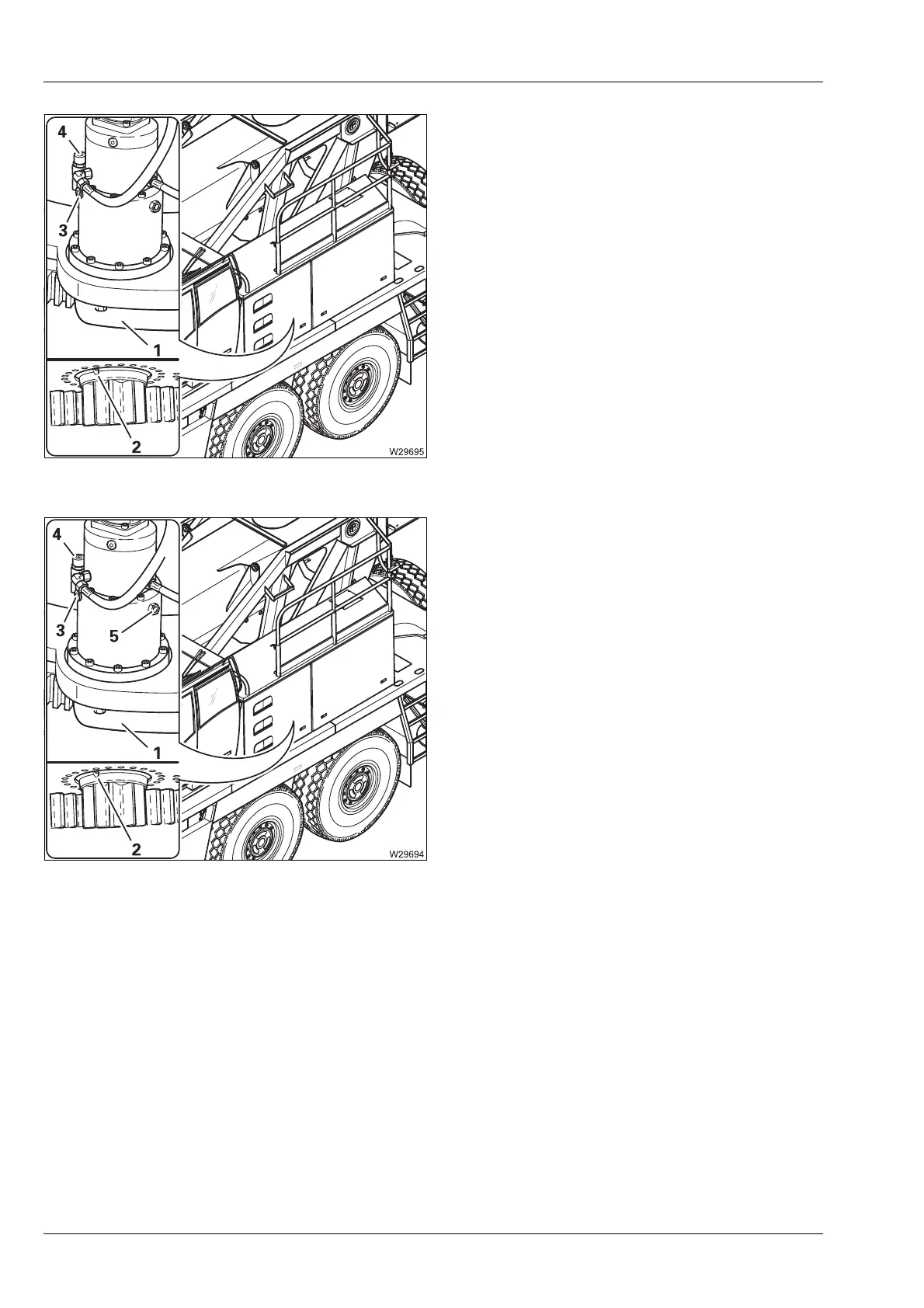

Draining oil
• Remove the plate (1).
• Place a container under the screws (2).
• Unscrew the filter (4) and screws (3) and (2).
• Drain the oil.
• Replace the gasket and tighten the
screws (2).
Topping up oil
• Top up the oil through the filler neck (4)
until oil is visible in the inspection
glass (5).
• Replace the gaskets and tighten the
screw (3) and the filter (4).
• Replace the plate (1).
Checking the oil Check the waste oil that was drained from the slewing gears for abrasion
particles, or have it tested at a laboratory.
• Pour the waste oil through a clean filter mat.
• Examine the oil, i.e. the residues on the filter mat using a magnifying
glass.
If you find abrasion particles or solid materials on the mat, the slewing gear
transmission must be removed and inspected by the manufacturer.
