Maintenance work on the superstructure
8.14 Other maintenance work
09.03.2018
Maintenance manual 3 302 744 en 8 - 91
GMK5250L
Spraying
• Make sure that you do not spray running
surfaces. There is a risk of slipping.
• Spray the corrosion protection with a spray
gun aimed only at the pumps, valve blocks,
screw connections, pipes, hoses of the
hydraulic system of the superstructure:

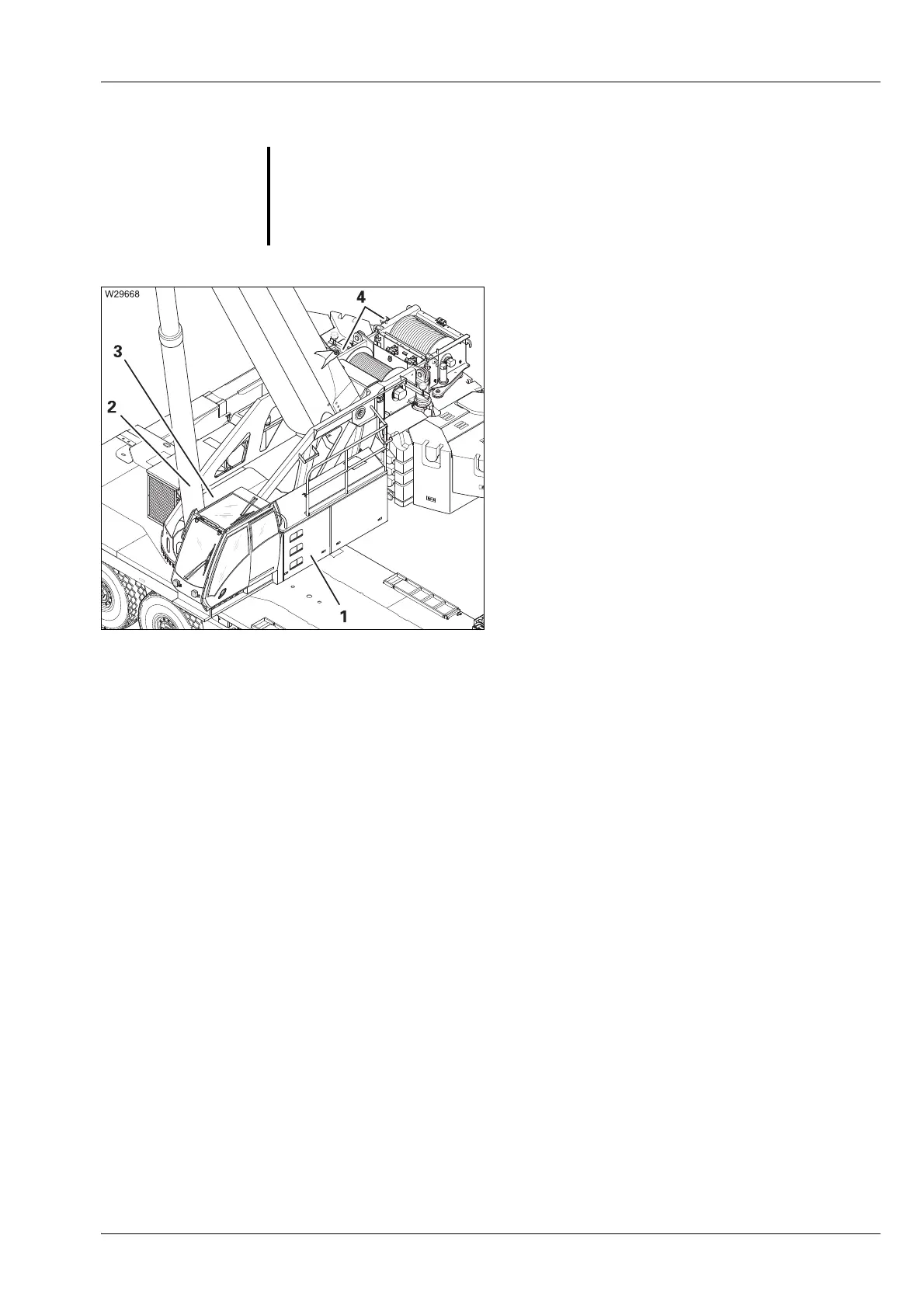

– On the derricking cylinder (2)
– On the slewing gears (1)
– On the slewing duct (3)
– On the hoists (4)
• Clean surfaces sprayed by accident immedi-
ately with water.
• Let the corrosion protection dry for one hour.
• Check that a transparent waxy protective film has covered the entire sur-
face.
G
Risk of injury to the eyes.
While working with the spray extension you could be hit by the spray jet or
spray droplets. Wear protective goggles, protective clothing and gloves.
