5-58 Published 7-23-2020, Control # 668-02
SET-UP AND INSTALLATION GRT9165 OPERATOR MANUAL
NOTE: This procedure assumes the boom extension base
and fly sections are stowed on the side of the main
boom.
1. Make sure the counterweight is installed. For more
information, see Counterweight Removal and
Installation, page 5-12.
2. Make sure the crane is set up on fully-extended
outriggers. For more information, see Using the
Outriggers, page 4-21.
3. Retract and lower the boom to horizontal.
4. Connect boom extension electrical connectors. For
more information, see Boom Extension and Lattice
Insert Electrical Connections, page 5-72.
5. If erecting a hydraulic boom extension, connect
hydraulic hoses. For more information, see Hydraulic
Boom Extension Connections, page 5-73.

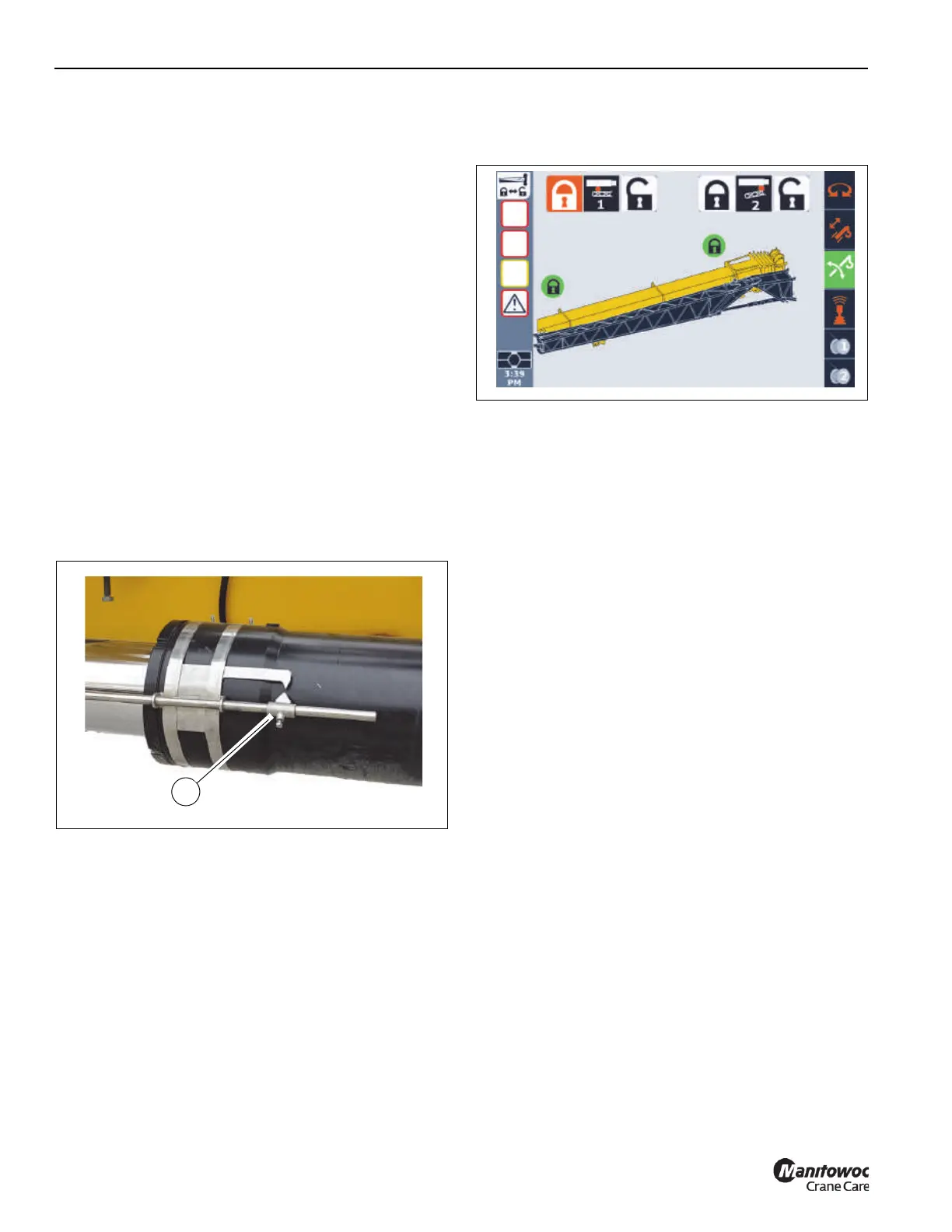

6. If erecting an optional hydraulic boom extension, make
sure the angle indicator (1, Figure 5-44) is aligned. If the
arrows are not aligned, adjust the boom extension offset
as needed to align the arrows. For more information, see
Setting the (Optional) Hydraulic Boom Extension Offset,
page 5-79.
7. In the ODM, verify that the front and rear mounting pins
are securely installed. Visually confirm that the pins are
installed.
8. Tie a tag line (1, Figure 5-37) to the end of the boom
extension base section (2). The tag line will assist when
swinging the boom extension to the boom nose.
9. Retract the captive retaining pin (1, Figure 5-45) from
the bracket (2) to release the rear boom extension ramp
(3) from the stowed position. Swing the rear boom
extension ramp (3) into the deployed position. Retract
the captive pin (4) to secure the ramp in the deployed
position.
