5-66 Published 7-23-2020, Control # 668-02
SET-UP AND INSTALLATION GRT9165 OPERATOR MANUAL

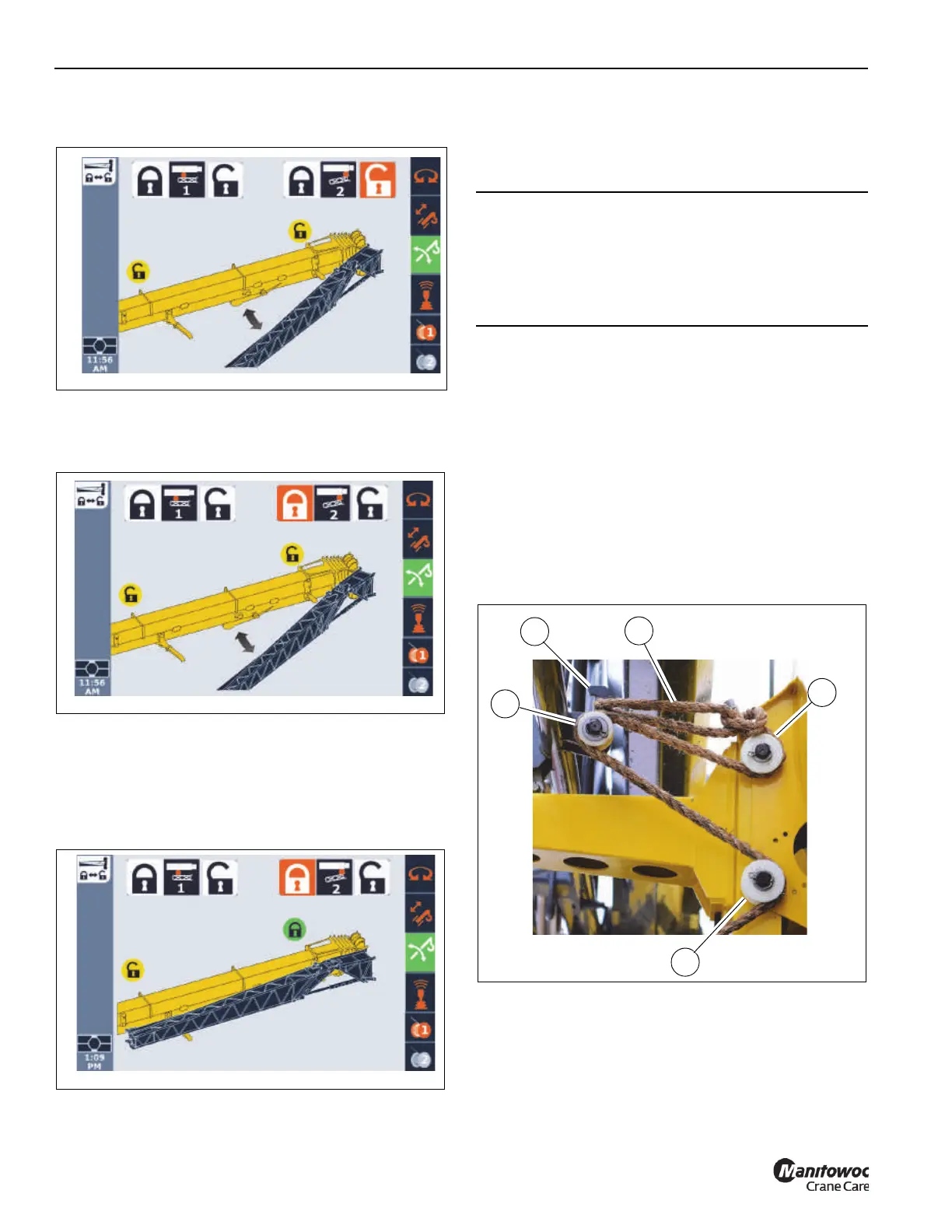

15. From the operator cab or with the remote control, lock
the front boom extension pin (Pin #2) as follows:
a. Use the ODM control pad arrow buttons or jog dial
to highlight the Pin #2 lock icon.
The lock icon highlights (orange).
b. Press and hold the OK on the ODM control pad or
press down on the jog dial.
Pin #2 is extended. The pin status indicator icon
turns green when the pin is fully extended and the
boom extension is displayed in the intermediate
installation position.
16. Make sure the ODM shows that the front mounting pin
(Pin #2) is extended. Visually confirm that the front
mounting pin is securely installed. Lock the handle (1,
Figure 5-38) with pin (2).
17. Turn the jack screw (3, Figure 5-40) clockwise with the
impact wrench, extension, and 14 mm impact socket to
retract the boom extension installation pins (4) from the
boom nose.
18. Secure the boom extension to the side of the main boom
using a tag line as follows:
a. Loop a tag line rope (2, Figure 5-54) over hook (1).
b. Reeve the tag line on sheaves (3, 4, 5) as shown.
c. Pull the tag line to secure the boom extension in the
fully stowed position. Use the tag line as necessary
to adjust the position of the boom extension to
extend Pin #1.
.
19. In the ODM, highlight the lock icon and the extend the
rear boom extension pin (Pin #1) as follows:
DANGER
Crush Hazard
To avoid death or serious injury, make sure the front
mounting pin (Pin #2) is installed and the handle (1,
Figure 5-38) is locked prior to retracting the boom
extension installation pins (4, Figure 5-40).
