DANGER
7376100175
FOLLOW INSTRUCTIONS IN OPERATOR’S AND SAFETY HANDBOOK.
TO AVOID DEATH OR SERIOUS INJURY:
NEVER handle personnel with this machine
unless the requirements of the applicable
national, state and local regulations and
safety codes are met.
NEVER use this crane for bungee jumping
or any form of amusement or sport.
NEVER permit anyone to ride loads, hooks,
slings or other rigging for any reason.
NEVER get on or off a moving crane.
NEVER allow anyone other than the
operator to be on this crane while it is
operating or traveling.
ELECTRONIC EQUIPMENT on this
crane is intended as an aid to the operator.
Under no condition should it be relied upon
to replace the use of capacity charts and
operating instructions. Sole reliance upon
these electronic aids in place of good
operating practices can cause an accident.
Do not remove any decal, the load chart, or
the Operator’s and Safety Handbook from
this crane.
TIPPING HAZARD
To avoid death or serious injury,
ensure load and crane’s
FRQ¿JXUDWLRQDUHZLWKLQFDSDFLW\
as shown on crane’s load rating
chart and notes.
This crane should have a
functional load moment indicator
and control lock-out system.
Test daily for proper operation.
POSITION CRANE ON FIRM SURFACE.
EXTEND OUTRIGGERS AND LEVEL CRANE.
TWO-BLOCKING HAZARD
To avoid death or serious injury,
keep load handling devices away
from boom/jib tip when extending
or lowering the boom and when
hoisting up.
This crane should have a
functional anti-two-block and
control lock-out system.
Test daily for proper operation.
DO NOT PASS LOADS OR BOOM OVER
GROUND PERSONNEL.
Breathing diesel engine exhaust exposes you to chemicals
known to the State of California to cause cancer and birth
defects or other reproductive harm.
Always start and operate the engine in a well ventilated area.
If in an enclosed area, vent the exhaust to the outside.
Do not modify or tamper with the exhaust system.
Do not idle the engine except as necessary.
For more information, go to www.P65warnings.ca.gov/diesel
Battery posts, terminals, and related accessories contain
chemical lead and lead compounds, chemicals known to the
State of California to cause cancer, birth defects, and other
reproductive harm. Wash hands after handling.
Operation of this equipment may create sparks that can start
fires around dry vegetation. A spark arrestor may be required.
The owner/ operator should contact local fire agencies for
laws or regulations relating to fire prevention requirements.
California Proposition 65
California Spark Arrestor
81007557 REV C

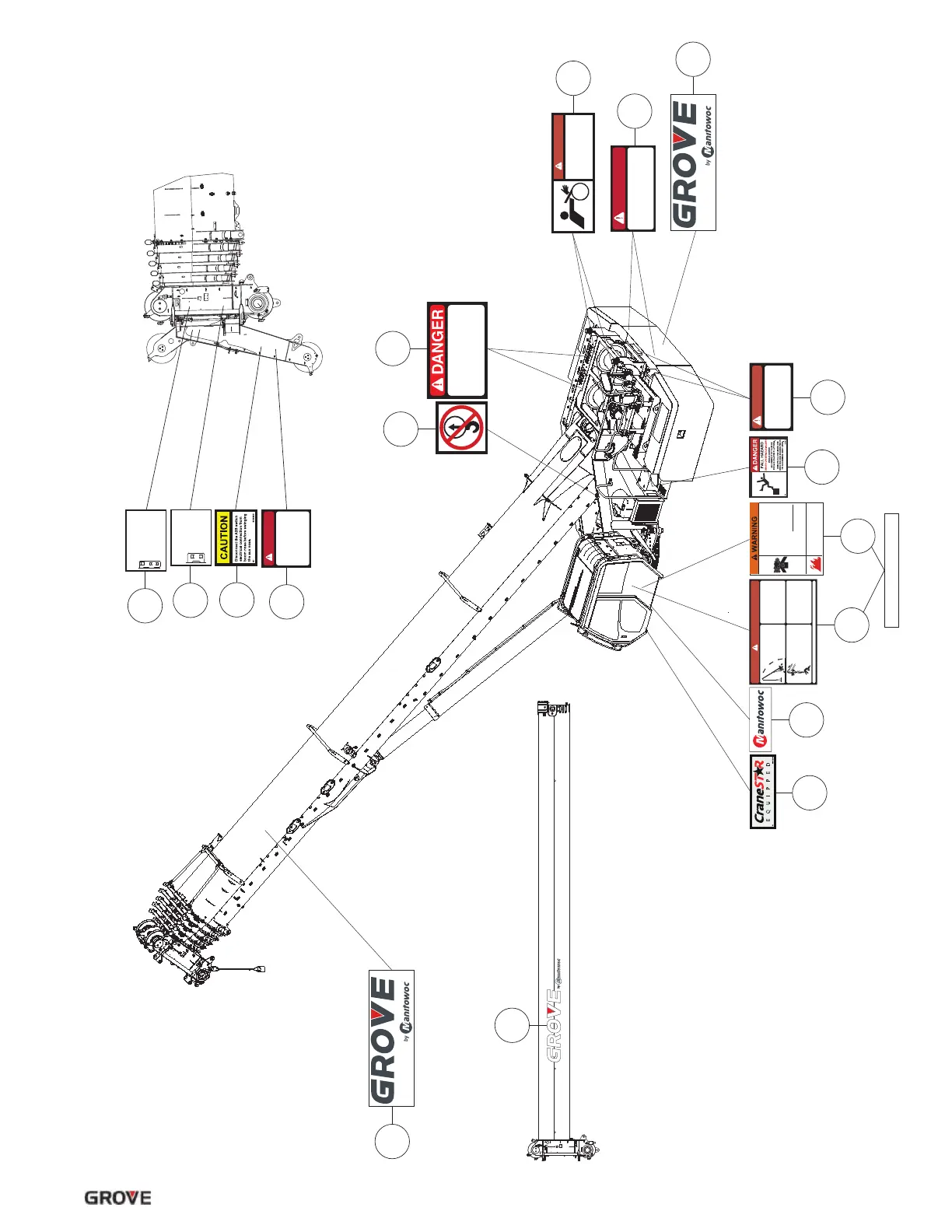

100
12
206
114
165
161
162
170
203
166
204
BOTH SIDES
DOOR WHEN IT’S COMPLETELY OPEN
DEATH OR SERIOUS INJURY MAY
RESULT WITH IMPROPER USE.
Lug for counterweight lifting and
installation only.
Not to be used for machine lifting
or tie down.
7376100089
DANGER
DANGER
DEATH OR SERIOUS INJURY MAY RESULT
IF PROPER OPERATING AND SETUP
PROCEDURES ARE NOT FOLLOWED.
When attaching wire rope to hoist
drum. Make sure the proper cable
wedge is used for that particular
cable size.
7376100079
G7
80000511
DANGER
ENTANGLEMENT HAZARD
Death or serious injury may result
if entanglement occurs during hoist
operation.
Keep all body parts and loose clothing
clear while hoist is running.
BOTH SIDES
202
DANGER
CRUSHING HAZARD
• DEATH OR SERIOUS INJURY COULD RESULT FROM BEING
CRUSHED BY FALLING COUNTERWEIGHT.
• FOLLOW INSTRUCTIONS IN OPERATOR’S AND SAFETY
HANDBOOK FOR COUNTERWEIGHT INSTALLATION AND
REMOVAL PROCEDURE.
80015011G7
184
187
186
185
ANTI-TWO-BLOCK HAZARD
Do not use auxiliary boom
nose anti-two-block switch
for boom extension.
6\VWHPIDLOXUHQRWL¿FDWLRQ
feature will not function.
DANGER
7376102014
AUX NOSE
BOOM FLY SECTION
168
7376102910
G7
MUST BE CLEARLY VISIBLE THROUGH
80101847 C4
80125564G7
XPG-CABLE REEL CONNECTION
X120-WIND SPEED INDICATOR
X130-AIRCRAFT WARNING LIGHT
BOOM EXTENSION
WIRING CONNECTIONS
80125566G7
X118-MAIN LIMIT SWITCH
X119-AUX LIMIT SWITCH
BOOM EXTENSION
WIRING CONNECTIONS
