Manitowoc Grove RT9130E-2 User Manual

Grove Published 3-1-2018, Control # 559-03 3-23
RT9130E-2 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
.

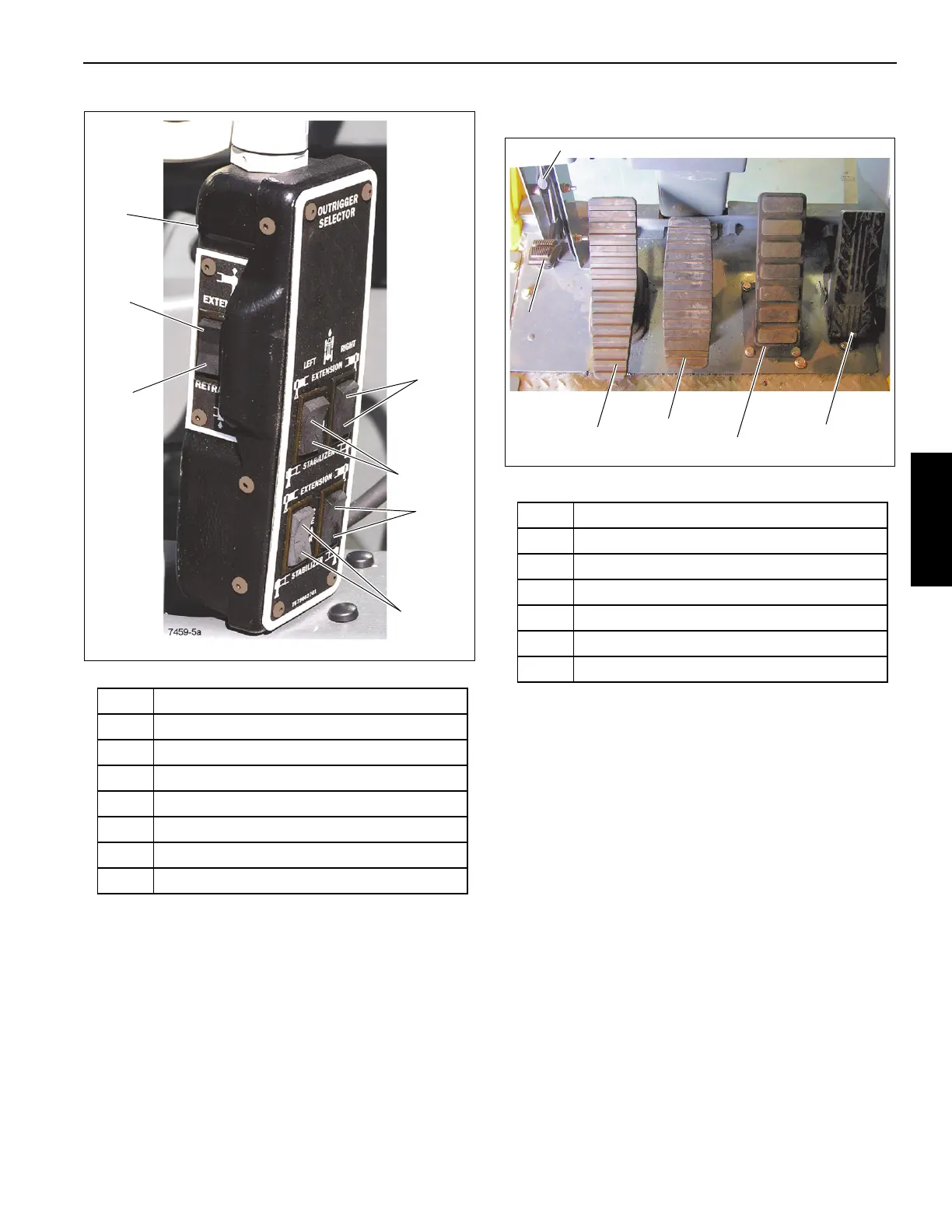

FOOT PEDAL CONTROLS
Figure 3-13 Item Numbers
Swing Lock Pedal
The Swing Lock Pedal (1, Figure 3-13) is located on the left
side of the crane cab floor. The brake pedal is used to
activate the swing lock and hold the turntable in position. To
release the swing lock, pull up on the Swing Lock Release
Lever (6).
Swing Brake Pedal
The Swing Brake Pedal (2, Figure 3-13) is located on the left
side of the cab floor. The Swing Brake Pedal is used to
actuate the swing brake to slow or stop swing motion.
Braking is proportional to pedal depression. With the pedal
not depressed and the swing brake control valve
disengaged, hydraulic pressure is applied to the brake,
overcoming spring pressure and releasing the brake.
Depressing the pedal actuates a swing power brake valve to
apply pressure to the brake assembly. This pressure aids the
spring pressure to overcome the hydraulic pressure being
applied to the brake release circuit and applies the spring
brake according to the pressure from the swing power brake
valve.
Item Description
1 Hand Held Control
2 Right Front Extension/Right Front Jack
3 Left Front Extension/Left Front Jack
4 Right Rear Extension/Right Rear Jack
5 Left Rear Extension/Left Rear Jack
6 Retract O/R
7 Extend O/R
3
FIGURE 3-12
1
4
5
6
2
7
Item Description
1 Swing Lock Pedal
2 Swing Brake Pedal
3 Telescope Control Foot Pedal
4 Service Brake Foot Pedal
5 Foot Throttle Pedal
6 Swing Lock Release Lever
FIGURE 3-13
7649-8
2
4
3
1
5
6
