RT9130E-2 OPERATOR MANUAL SET-UP AND INSTALLATION
4
Published 3-1-2018, Control # 559-03
GROVE
Hydraulic Connection on the Boom Inserts
The hydraulic connection is required for raising and lowering
the hydraulic jib. If the hydraulic connections for the hose
drum were separated on the left side, they have to be re-
established.
NOTE: The connections are made via quick couplings.
Half couplings which belong together are color
coded.
Connections on the 8 m (26 ft) Sections
At the rear of the 8 m (26 ft) inserts there are two hydraulic
hoses (1) with quick couplings. These hydraulic hoses can
be connected on the main boom head or on a second 8 m
(26 ft) insert (Figure 4-21)
For transportation, hydraulic hoses are stored in holders (2)
(Figure 4-21).
At the front of the 8 m (26 ft) inserts there are two quick
couplings (1) (Figure 4-22).
Connect the hydraulic hoses of the 11 m (36 ft) section or a
second 8 m (26 ft) insert here.
Electrical Connection on the Boom Inserts
This section describes the electrical connections on the 8 m
(26 ft) inserts. For establishing electrical connection on the
two-stage swingaway jib refer to Establish an Electrical
Connection Between the Lattice Extension and the Main
Boom, page 4-25.
Connections on the 8 m (26 ft) Sections
At the rear of the 8 m (26 ft) sections there is a cable with a
plug (3) (Figure 4-23).

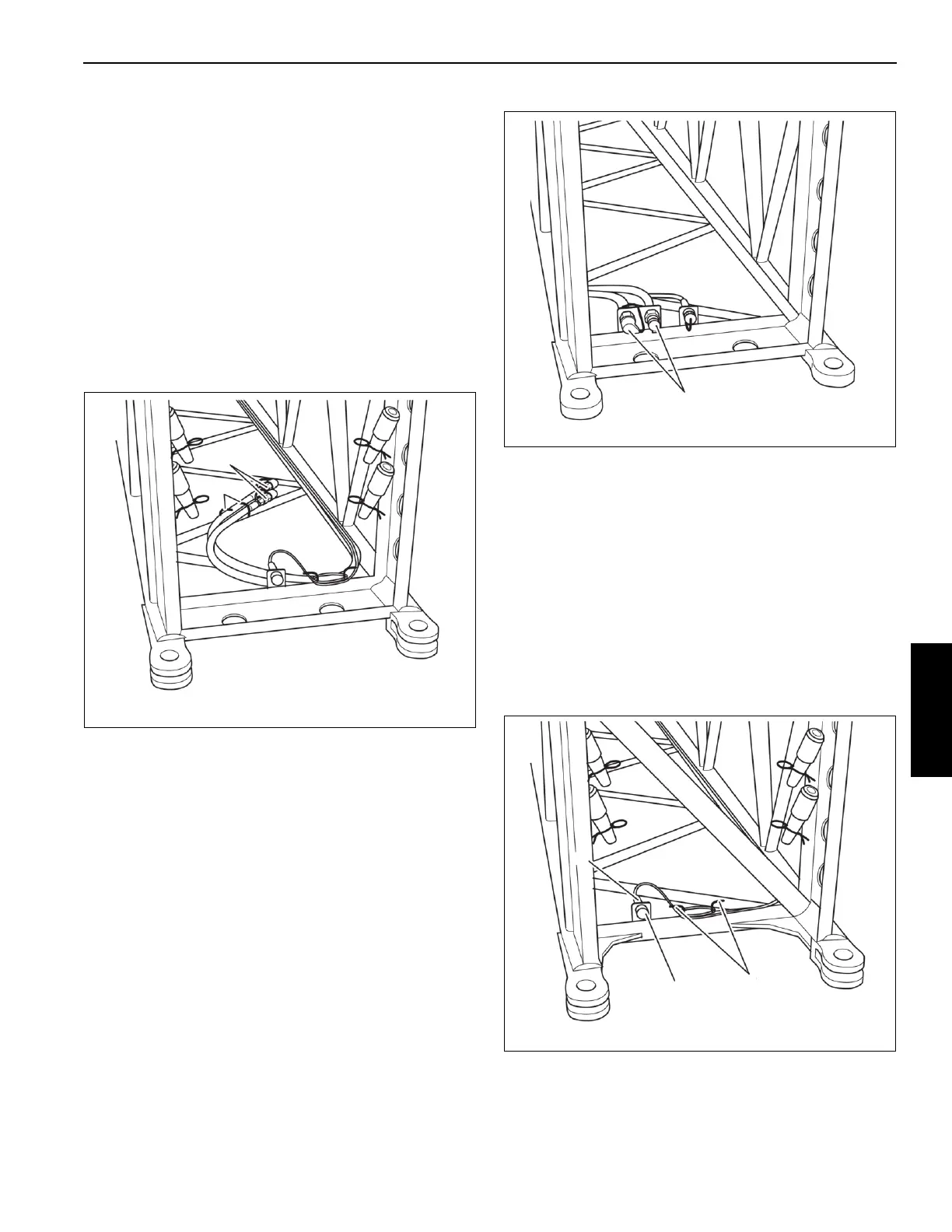

FIGURE 4-21
w1542a
1
2
FIGURE 4-22
1
w1539a
FIGURE 4-23
w2450a
1
2
3
