SET-UP AND INSTALLATION RT9130E-2 OPERATOR MANUAL
4-18
Published 3-1-2018, Control # 559-03
3. Use the remote mounted pinning cylinder control box
(Figure 4-14) located on either the left front or the right
rear side of the carrier and perform the following:
a. Position and hold the PIN ENABLE switch to the ON
position.
b. Position and hold the PIN CONTROL switch to the
DISENGAGE position until the pinning cylinder rods
are fully retracted.
4. Disconnect the carrier external electrical connector from
the outrigger external connection.
5. Disconnect the carrier hydraulic quick disconnects from
the external connections of the outrigger. Stow the
carrier lines inside the fender.
6. Lift the outrigger box from the carrier.
7. Stow the quick release pins in the stowage clamps on
the outrigger box.
Installation
NOTE: The outrigger box assembly weighs approximately
4307 kg (9495 lb).
1. Attach an adequate lifting device with lifting slings to the
lifting lugs provided on each end of the outrigger box.
2. Lift and position the outrigger box parallel with the rear or
front of the carrier.
3. Connect the carrier external electrical connector to the
outrigger external connection.
4. Install the carrier hydraulic quick disconnects to the
external connections of the outrigger.
5. Lower the outrigger box and align the pinning (power)
pin cylinder pins with the attach points on the carrier
frame.
6. Use the remote mounted pin control box (Figure 4-14)
located on either the left front or the right rear side of the
carrier and perform the following:
a. Position and hold the PIN ENABLE switch to the ON
position.
b. Position and hold the PIN CONTROL switch to the
ENGAGE position (Figure 4-14).
7. After the hydraulic cylinders have been activated, install
a quick release pin in the end of each of the power
cylinder rod ends.
8463

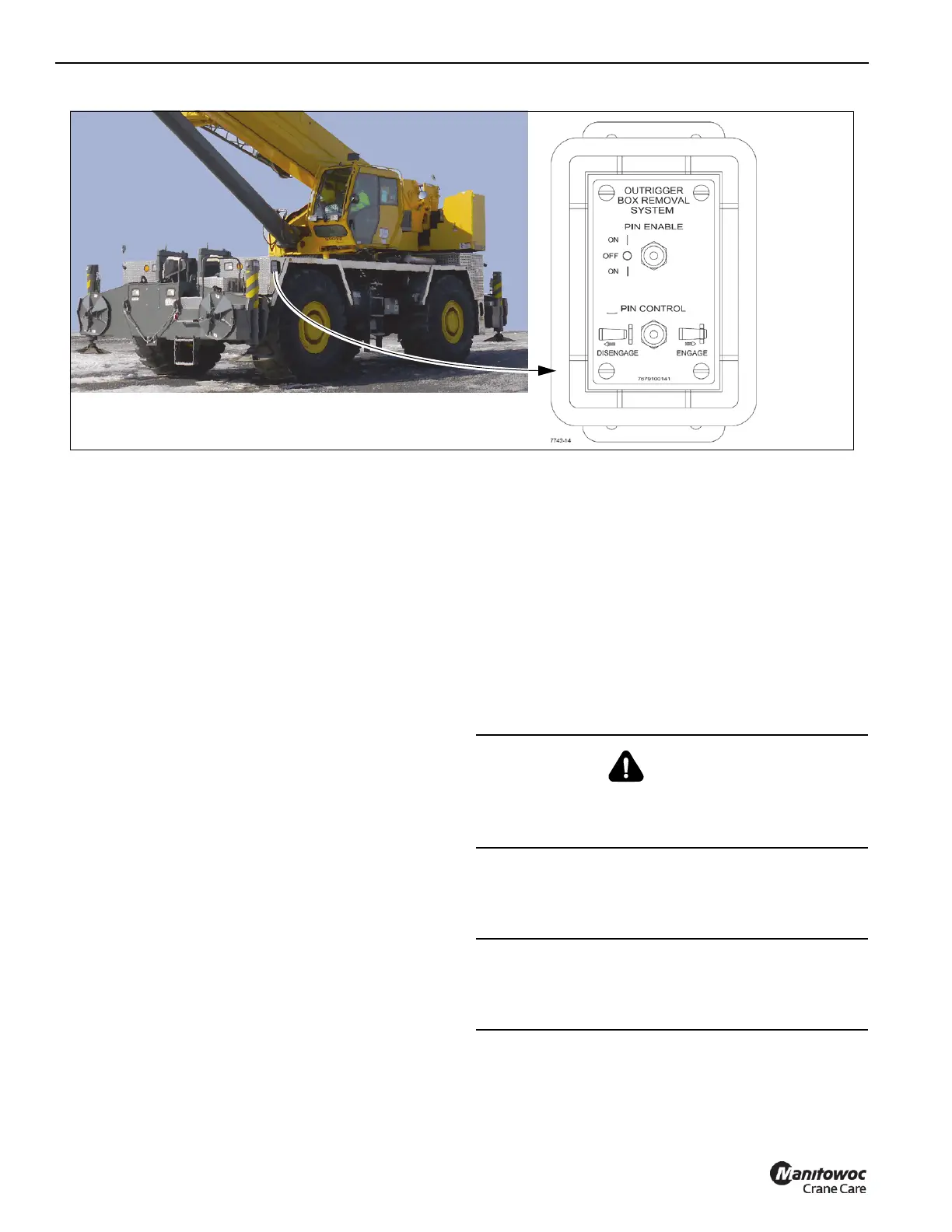

FIGURE 4-14
DANGER
The retaining pins must be properly installed and secured
in the power cylinder rod ends whenever the outrigger box
is on the carrier
CAUTION
If swinging the outrigger box over the side while on
rubber, the boom must be fully retracted and limited to a
6 m (20 ft) maximum radius.
