Manitowoc Grove RT9130E-2 - Setting Folding Swingaway Extension Offset

4-33
RT9130E-2 OPERATOR MANUAL SET-UP AND INSTALLATION
4
Published 3-1-2018, Control # 559-03
GROVE
Removing the Hoist Cable
Reverse sequence of operations to remove hoist cable.
Setting Folding Swingaway Extension Offset
1. Extend and set outriggers. Swing boom over front and
position above horizontal.
2. Block under tip of extension assembly section.
3. To set offset from a lesser to higher degree, perform the
following procedures (Figure 4-26).
DANGER
Ensure any blocking material used is adequate to support
the weight of the extension assembly without tipping or
falling.
CAUTION
Do not overload extension anchor fittings or extension
base section when lowering boom.

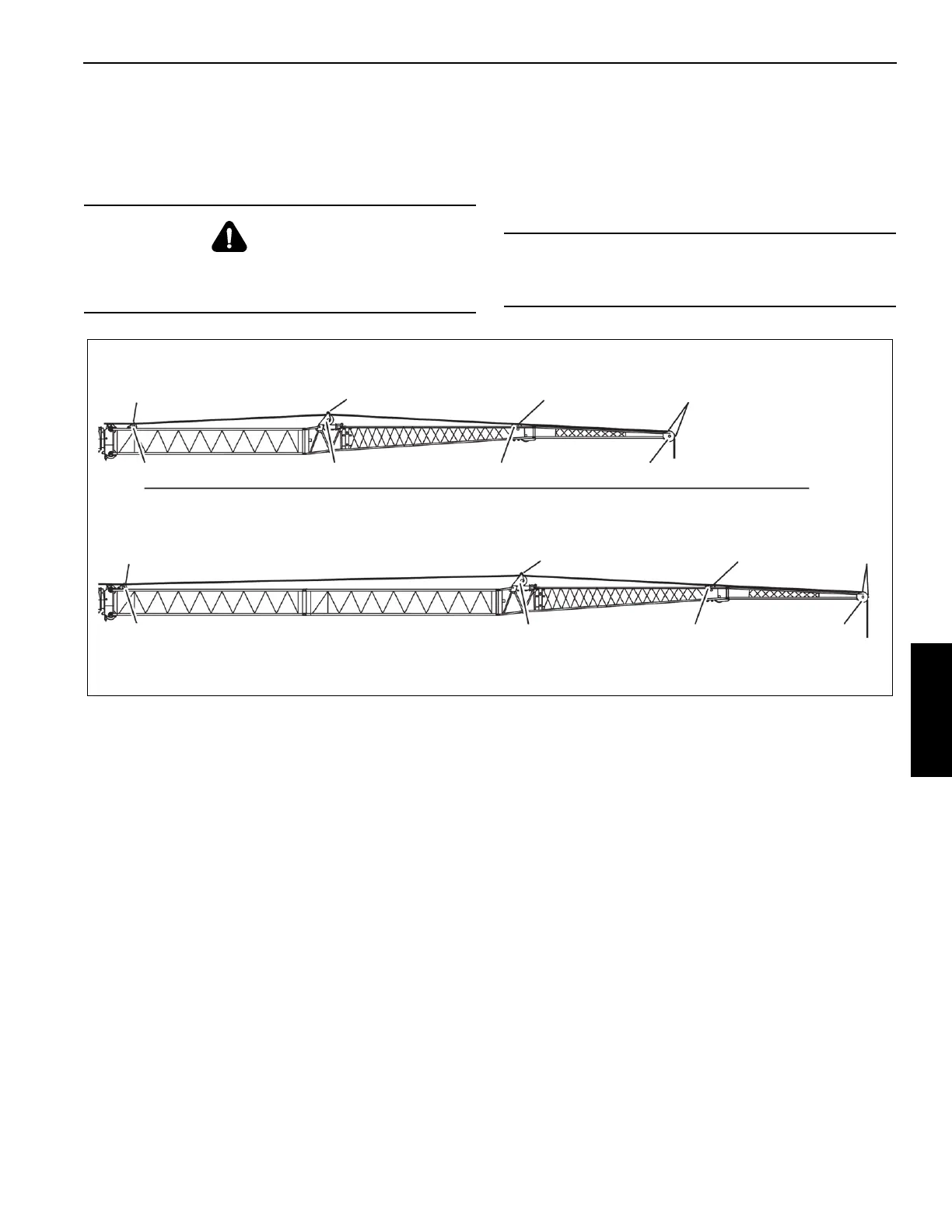

FIGURE 4-25
f0133a
1
111
1
11
1
54
3
2
2
34
5
