INTRODUCTION RT9130E-2 OPERATOR MANUAL
1-8 Published 3-1-2018, Control # 559-03
Hydraulic Pumps
NOTE: Pump output figures are theoretical.
Pump #1
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gear
Sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Output @ 2486 rpm w/ load
Section 1 . . . . . . . . . . . . .194 l/min (51.2 gpm)
Section 2 . . . . . . . . . . . . . 116 l/min (30.6 gpm)
Pump #2
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gear
Sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Output @ 2486 rpm w/ load
Section 1 . . . . . . . . . . . . . 115 l/min (30.3 gpm)
Pump #3
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gear
Sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Output @ 2486 rpm w/ load
Section 1 . . . . . . . . . . . . .194 l/min (51.2 gpm)
Section 2 . . . . . . . . . . . . . .58 l/min (15.3 gpm)
Pump #4
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gear
Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Output @2486 rpm w/ load
Section 1 . . . . . . . . . . . . . . 41 l/min (10.7 gpm)
Hoists
Model . . . . . . . . . . . . . . . . . . . . . . . . . . . HP35-26G
Drum Dimensions
Length . . . . . . . . . . . . . . . . . 626 mm (26.65 in)
Diameter . . . . . . . . . . . . . . . . . 381 mm (15 in)
Length (Standard) . . . . . . . . 676 mm (26.63 in)
Cable
Diameter . . . . . . . . . . . . . . . . . 19 mm (0.75 in)
Length-Main. . . . . . . . . . . . . . . . 290 m (951 ft)
Length-Aux. . . . . . . . . . . . . . . . . 214 m (702 ft)
Max. Permissible Line Pull (6x36)
. . . . . . . . . . . . . . . . . . . . . . . . . 7760 kg (17,070 lb)
Max. Single Line Speed . . . 171.3 m/min (562 fpm)
Hoist Motor Displacement
Low . . . . . . . . 80.3 cm
3
(4.9 in
3)
per revolution
High . . . . . . . . . .46 cm
3
(2.8 in
3)
per revolution
Oil Capacity . . . . . . . . . . . . . . . . . . . . . . 21 l (22 qt)

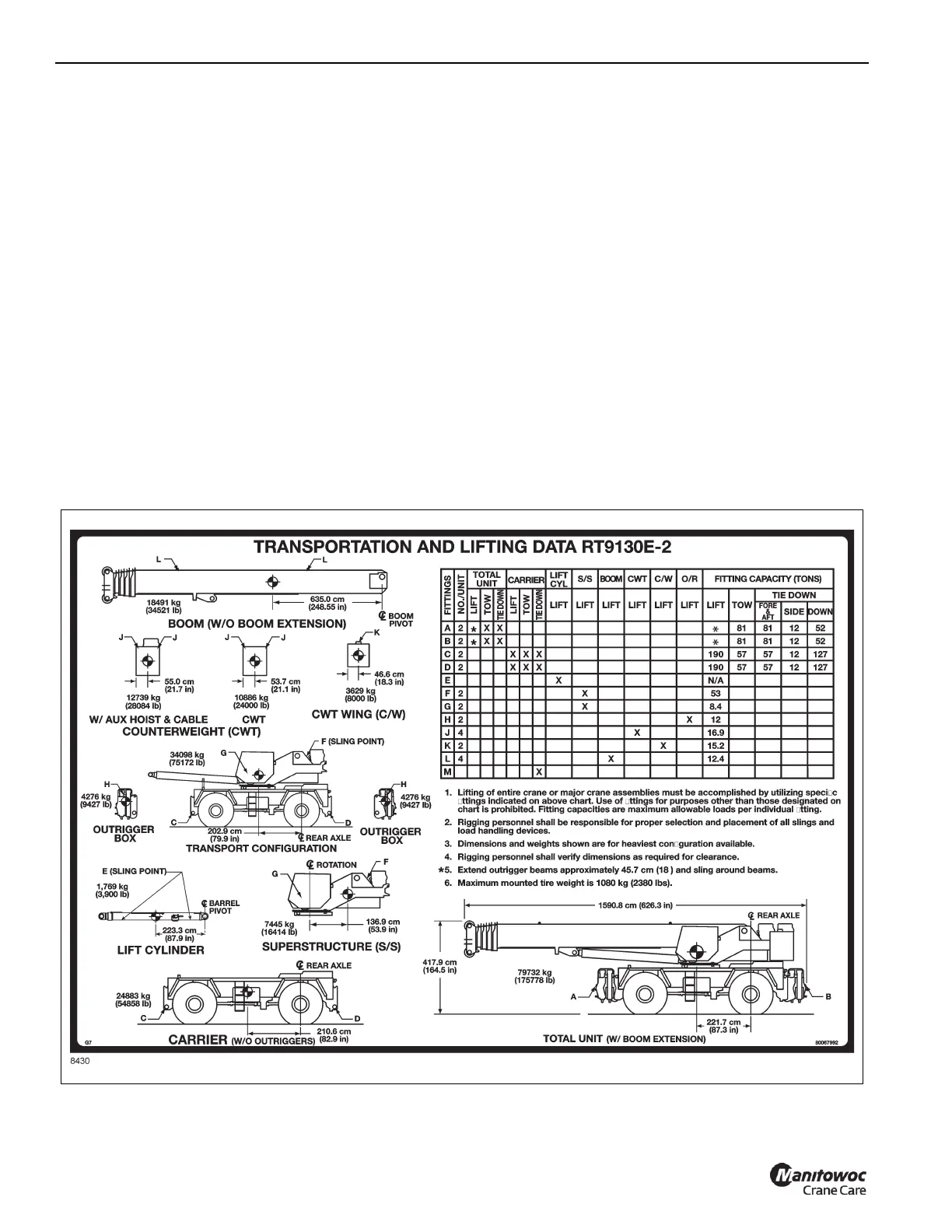

FIGURE 1-4
