SET-UP AND INSTALLATION RT9130E-2 OPERATOR MANUAL
4-2
Published 3-1-2018, Control # 559-03
4. Position the anchor wedge in the drum slot; pull firmly on
the free end (2) of the cable to secure the wedge.
NOTE: If the wedge does not seat securely in the slot,
carefully tap (3) the top of the wedge with a mallet.
5. Slowly rotate the drum, ensuring the first layer of cable is
evenly wound onto the drum.
Install the remainder of the cable, as applicable.
CABLE REEVING
NOTE: There are two types of cable (wire rope) available
on this crane; 6 x 36 WS and 35 x 7 (non-rotating).
Within the limits of the load and range charts and permissible
line pull, multi-part lines allow the operator to raise a greater
load than can be raised with a single part line. Various cable
reeving (part line) is possible with the boom nose and hook
block (Figure 4-7). This reeving should be accomplished by
a qualified rigger using standard rigging procedures.
NOTE: Also use the rope grab when using the Main Hoist
with lattice extensions
DANGER
Entanglement Hazard!
Death or serious injury may result should entanglement
occur during hoist operation.
Keep all body parts and loose clothing clear while hoist is
running.

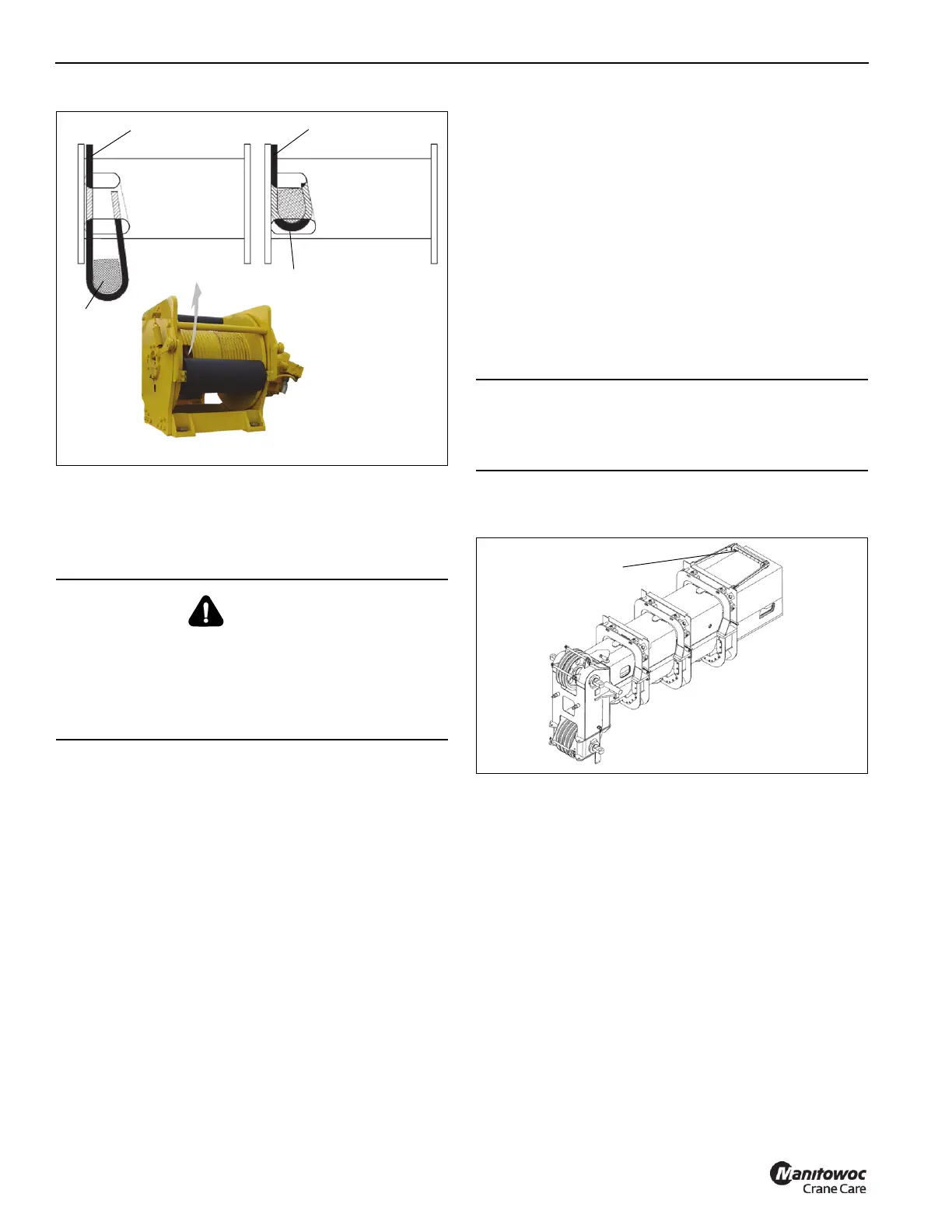

FIGURE 4-1
1
2
2
3
7312
CAUTION
Do not reeve auxiliary hoist rope through the rope grab.
Do reeve the main hoist rope through the rope grab.
(Figure 4-2).
FIGURE 4-2
7053
Rope Grab
