OPERATING CONTROLS AND PROCEDURES RT9130E-2 OPERATOR MANUAL
3-12 Published 3-1-2018, Control # 559-03

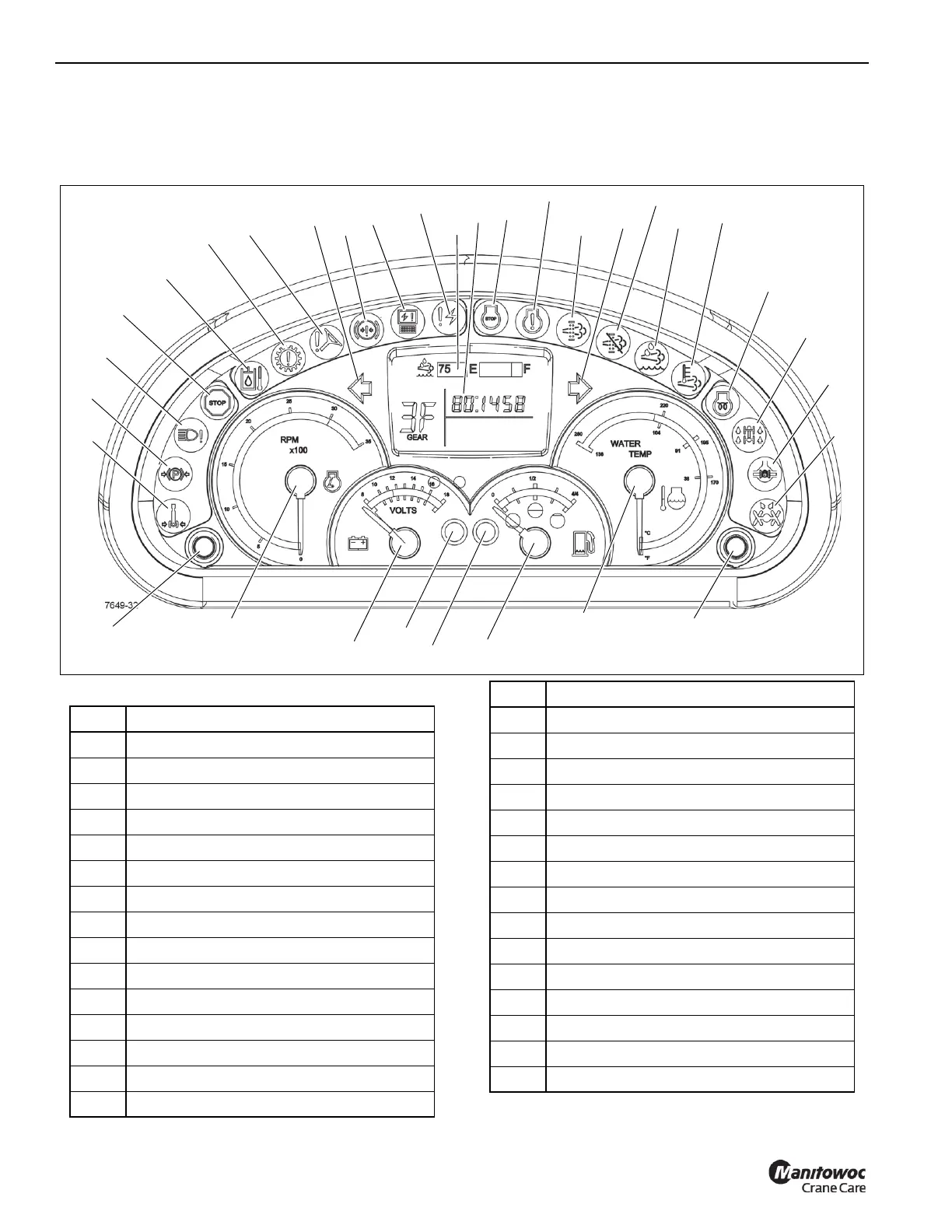

STEERING COLUMN INDICATOR AND
GAUGE DISPLAY
As a system check, the indicators will come on for two seconds when the ignition switch is turned to the RUN position.
Figure 3-7 Item Numbers
3
2
1
6
5
4
7
8
12
11
10
9
15
14
13
19
18
17
20
16
22
21
23
24
29
25
31
30
26
28
27
FIGURE 3-7
32
Item Description
1
Swing Brake Engaged
2 Parking Brake Engaged
3 Light Malfunction
4 Emergency Stop
5 Hydraulic Oil High Temperature
6 Transmission Warning
7 Low Steer Pressure
8 Left Turn Signal
9 Low Brake Pressure
10 Electronic Module Control
11
Electrical System Diagnostics
12 LCD Display
13 Engine Stop
14 Engine Warning
15 Exhaust System Cleaning Required
16 Right Turn Signal
17 Inhibit Cleaning Activated
18 Low Diesel Exhaust Fluid (DEF) Level
19 High Exhaust System Temperature (HEST)
20 Engine Wait to Start
21 Four Wheel Drive Engaged
22 Interaxle Locked
23 Rear Wheels Not Centered
24 Push Button Switch (no usage)
25 Engine Coolant Temperature Gauge
26 Fuel Gauge
27 Low Fuel Level Indicator
28 Battery Charge Indicator
29 Voltmeter
30 Tachometer
Item Description
