Grove Published 3-1-2018, Control # 559-03 3-17
RT9130E-2 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES

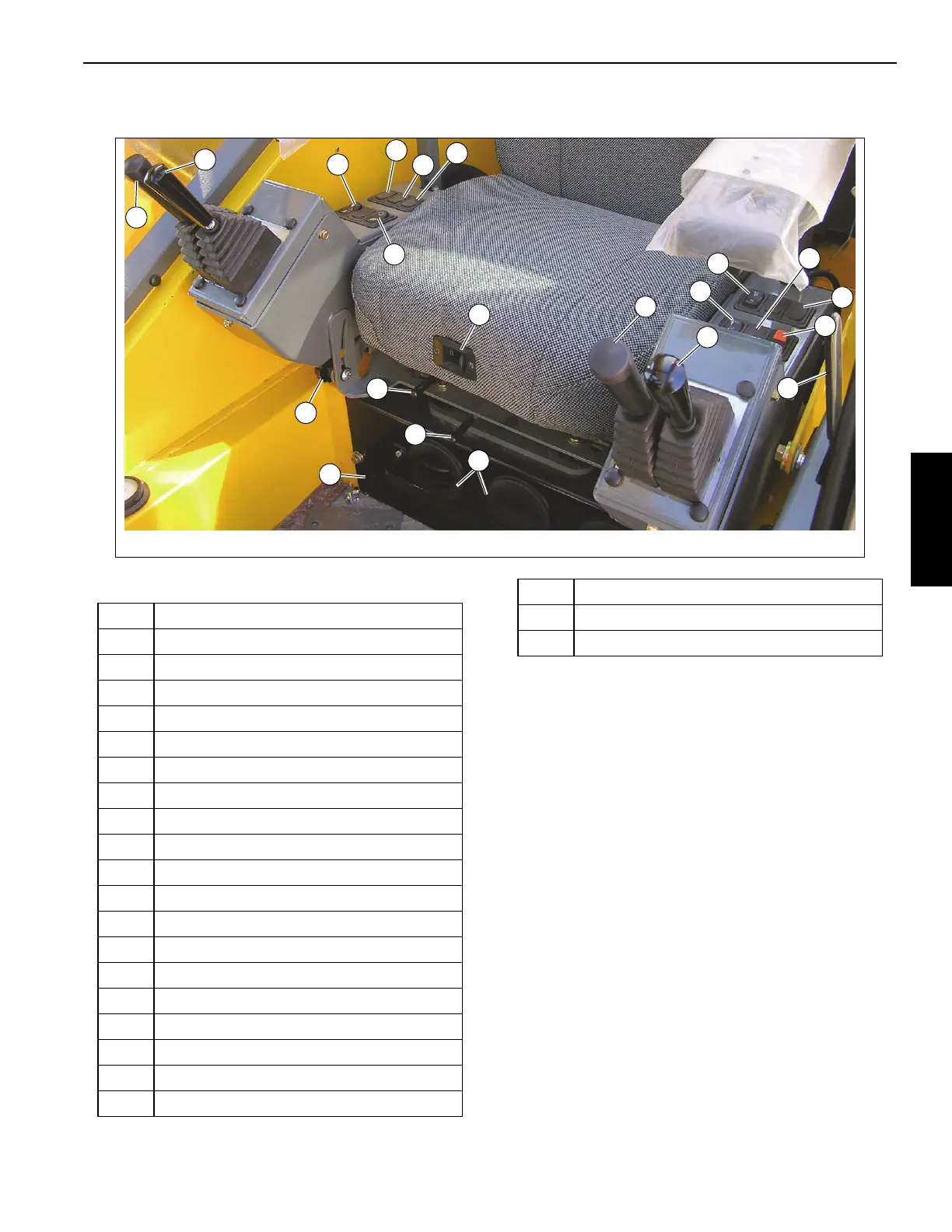

CONTROL SEAT ASSEMBLY - SINGLE AXIS
Figure 3-9 Item Numbers
Main Hoist Control (Single Axis Option)
The Main Hoist Control (1, Figure 3-9) is located on the right
armrest. The joystick, when pushed forward, lowers the
cable. When pulled back, it raises the cable.
Boom Lift Control (Single Axis Option)
The Boom Lift Control (2, Figure 3-9) is located on the right
armrest. The joystick, when pushed forward lowers the boom
or pulled back raises the boom.
Boom Lift and Main Hoist Control Lever
(Dual Axis Option — Not Shown)
The Boom Lift/Main Hoist Control Lever is located on the
right armrest. The controller, when pushed to the right lowers
the boom or pushed left raises the boom.
When used for main hoist, the controller, when pushed
forward lowers the cable or pulled back raises the cable.
Main Hoist Speed Selector Switch
The Main Hoist Speed Selector Switch (3, Figure 3-9) is a
three positioned maintained switch (High/Off/Low) that is
located on the right armrest. Positioning the switch to High
FIGURE 3-9
7649-4
4
3
2
1
5
6
7
15
12
10
11
14
13
8
9
16
17
18
19
20
21
Item Description
1
Main Hoist Control, Raise/ Lower
2 Boom Lift Control
3 Main Hoist Speed Switch
4 Auxiliary Hoist Raise/Lower
5 Swing Control, Left/Right
6 Auxiliary Hoist Speed Switch
7 Rear Steer Switch
8 Swing Brake Control Switch
9 Axle Differential Lock Control Switch
10
Cab Door Release
11 Seat Back Adjustment
12 AC/Heater Vents
13 Seat Slide Lever
14 Whole Seat Slide Lever
15 Right Arm Rest Adjustment
16 AC/Heater Climate Control Unit
17 Cab Tilt Switch
18 Luffing Jib Raise/Lower Switch
19 Luffing Jib On/Off Switch
20 Swing Speed Switch
21 Hydraulic Boost Switch
Item Description
