SET-UP AND INSTALLATION RT9130E-2 OPERATOR MANUAL
4-32
Published 3-1-2018, Control # 559-03
For transportation, the cable is wound around the holders (1)
and plug is inserted in the dummy socket (2) (Figure 4-23).

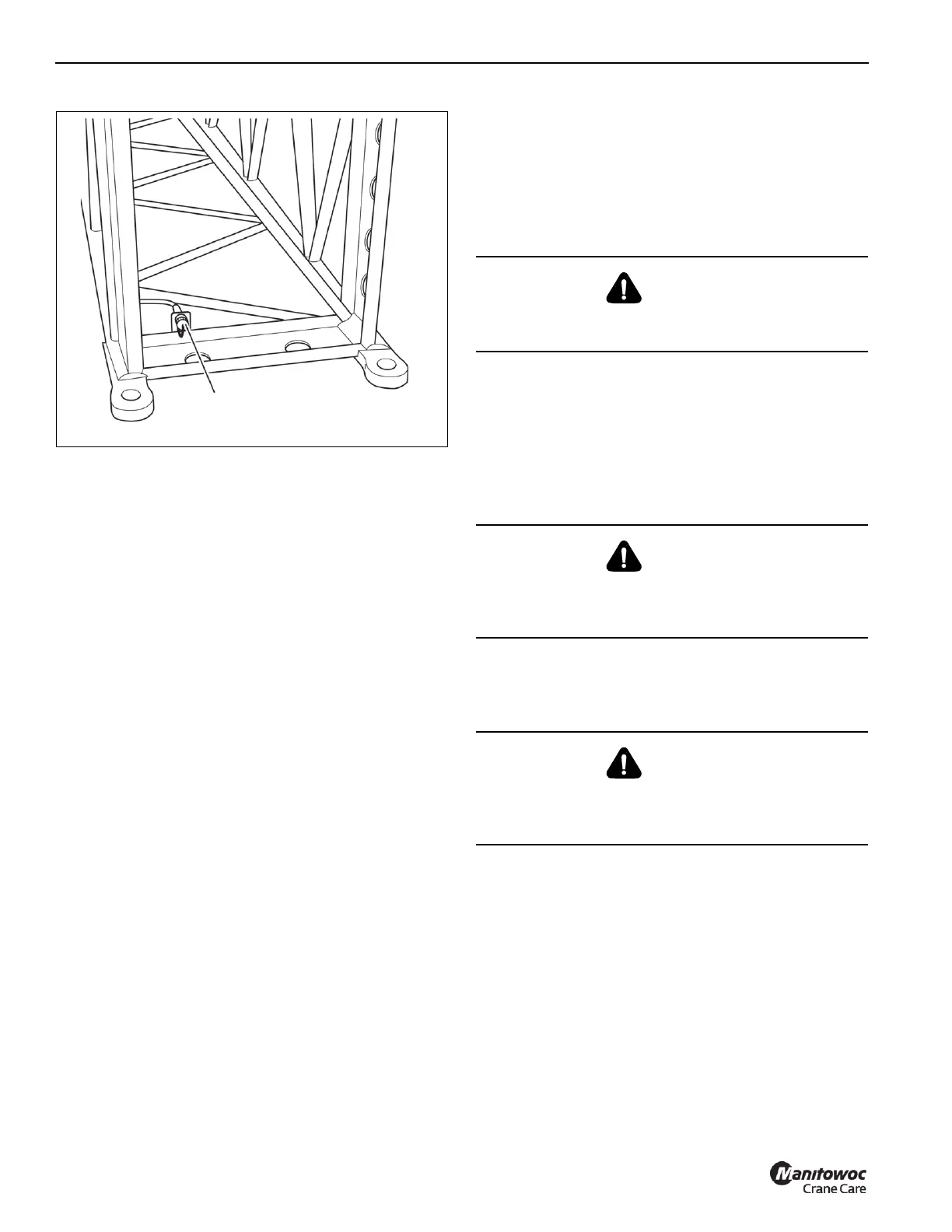

At front of the 8 m (26 ft) inserts there is a plug socket (1)
(Figure 4-24).
Connect cable of the 11 m (36 ft) section or a second 8 m (26
ft) insert here.
Establishing Electrical Connections
For the 26 m (85 ft) Jib
1. Connect the cable from the 8 m (26 ft) section to the
socket on the main boom head.
2. Connect the cable from the 11 m (36 ft) section to the
socket at the front of the 8 m (26 ft) section.
For the 34 m (112 ft) Jib
1. Connect the cable from the first 8 m (26 ft) section to the
socket on the main boom head.
2. Connect the cable from the second 8 m (26 ft) section to
the socket at the front of the first 8 m (26 ft) section.
3. Connect the cable from the 11 m (36 ft) section to the
socket at the front of the second 8 m (26 ft) section.
Folding Out/In the Deflection Sheaves on the
8 m (26 ft) Sections
This section describes only the folding in and out of the
deflection sheave on the 8 m (26 ft) insert.
NOTE: Fold the deflection sheave in for transportation.
Folding Out Deflection Sheave
1. Hold the deflection sheave by the strut and remove the
pin from the bore.
2. Fold the deflection sheave up and secure it by inserting
the pin into the bore.
3. Secure the pin with a retaining clip.
Folding In Deflection Sheave
1. Hold the deflection sheave by the strut and remove the
pin from the bore.
2. Fold the deflection sheave down and insert the pin in the
bore.
3. Fold the deflection sheave in for transportation.
4. Secure the pin with a retaining clip.
Positioning/Removing Hoist Cable
Positioning the Hoist Cable
• Remove hoist cable holding rollers and rods (1)
(Figure 4-25).
• Guide hoist cable via deflection sheaves (5), (4), (3) and
head sheave (2) on the 7 m (23 ft) section for the boom
insert(s) (Figure 4-25).
• Put all hoist cable holding rollers and rods back in place
and secure these with retaining clips.
• Attach the hook tackle. The hoist rope can only be
reeved once.
CAUTION
Make sure the deflection sheave is in the raised position
anytime the boom extension is erected.
CAUTION
Make sure the deflection sheave is folded in the down
position prior to transportation or damage to the crane
may result.
CAUTION
Always secure hoist cable holding rollers and rods with
retaining clips. This prevents hardware from coming
loose, falling down and injuring people.
