SET-UP AND INSTALLATION RT9130E-2 OPERATOR MANUAL
4-24
Published 3-1-2018, Control # 559-03
26
DETAIL D
7 m (23 Ft)
Section
(Fly)
Fly
Sheave
Connection Between Fly Nose and
11 m (36 ft) Section
27
28
31
32
30
29

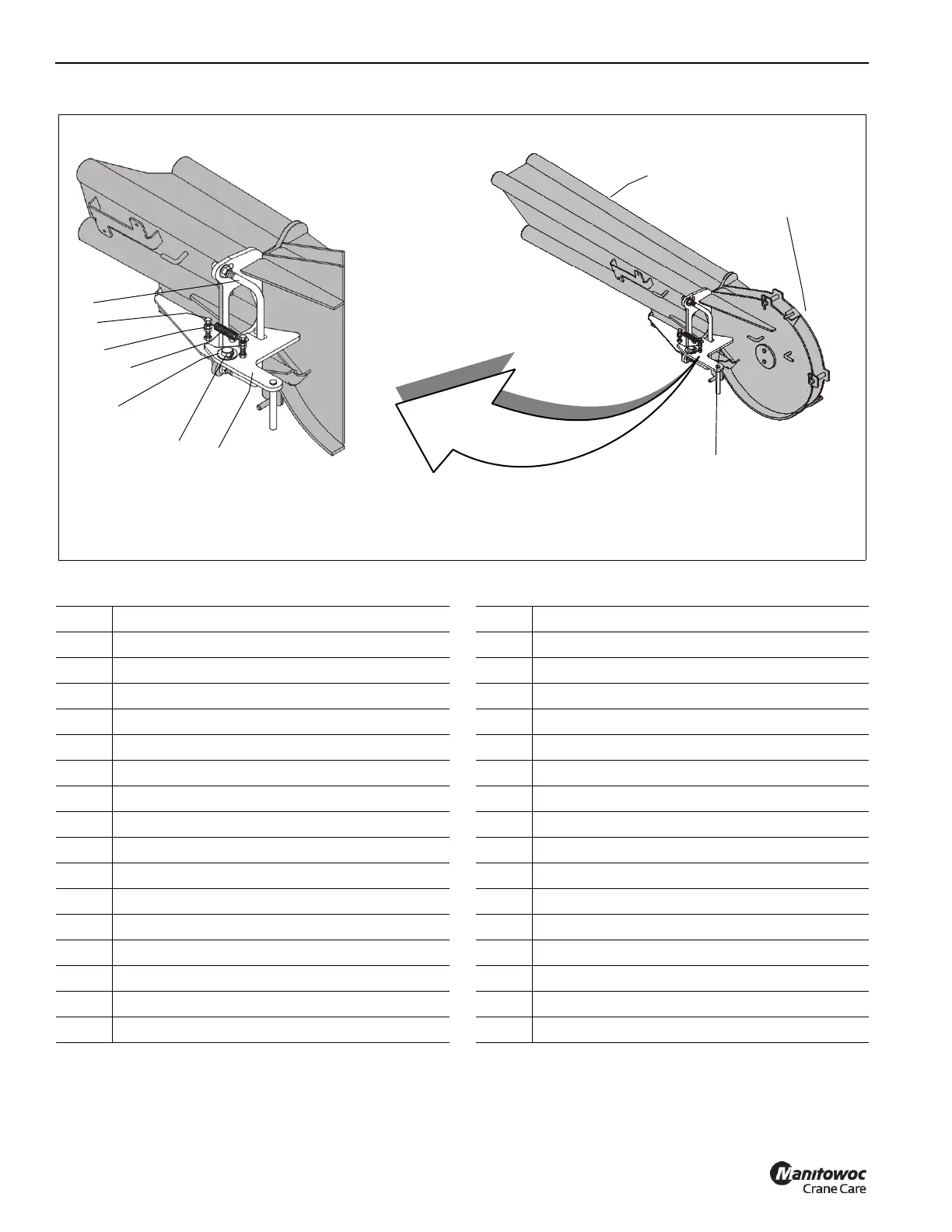

FIGURE 4-15 continued
Item Description
1
Retaining Pin
2 Mounting Plate
3Eye Bolt
4Pin
5 Guide Rail
6 Adjusting Bolt
7 Holding Bracket
8Plate
9Pin
10 Guide Rail Mounting Bracket
11 Threaded Plate
12 Grease Fitting
13 Supporting Roller
14 Pin
15 Roller Support
16
Attach Pins
Item Description
17 Retaining Clips
18 Plate
19 Rear Extension Support Bracket
20 Vertical Adjusting Bolts
21 Horizontal Adjusting Bolts
22 Mounting Bracket
23 Boom
24 7 m (23 ft) Jib
25 11 m (36 ft) Jib
26 Stirrup
27 Bolts
28 Nuts
29 Tension Spring
30 Spacer Ring
31 Pin
32 Catch Hook
