Manitowoc Grove TMS700E

Grove Published 01-29-2015, Control # 512-01 2-69
TMS700E SERVICE MANUAL HYDRAULIC SYSTEM
2

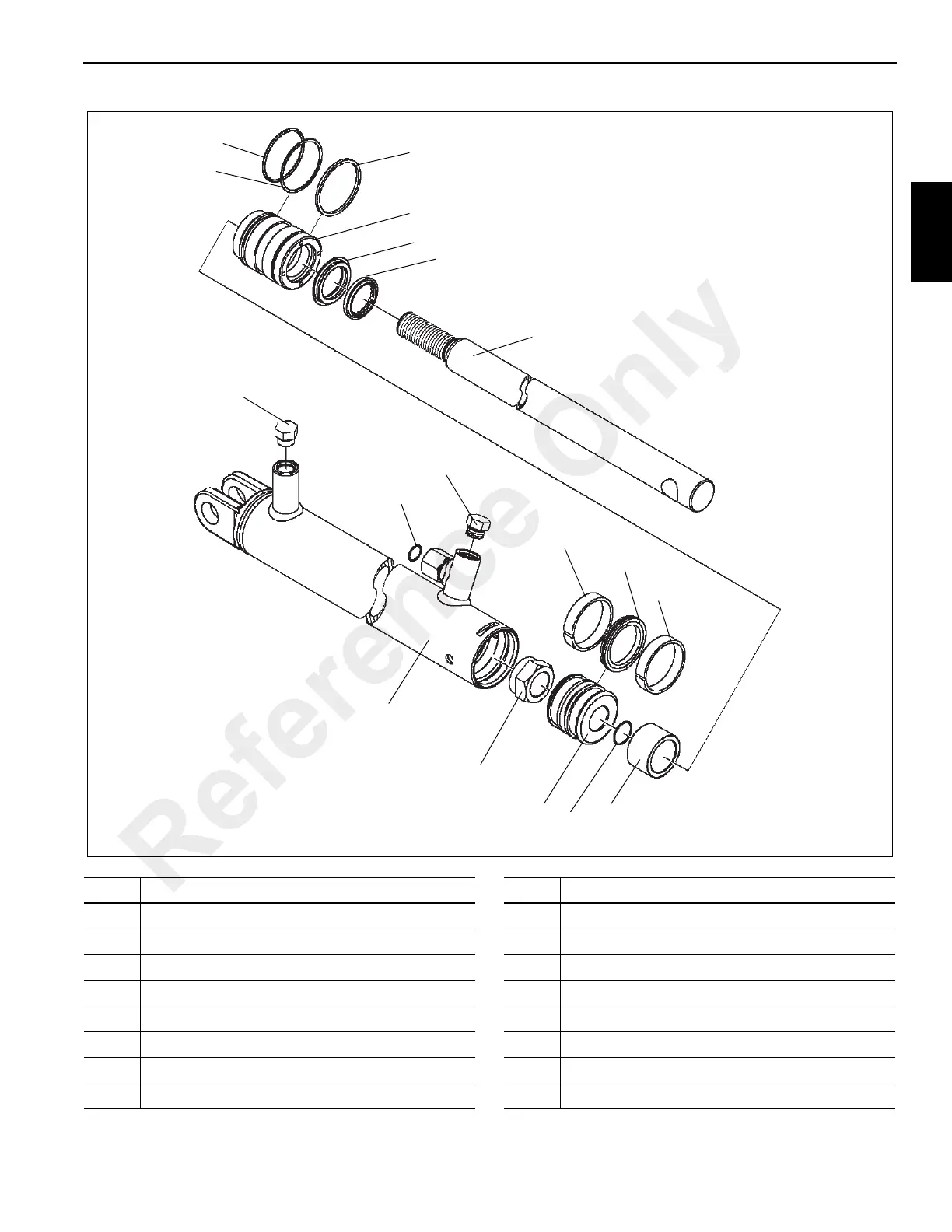

FIGURE 2-52
14
13
12
11
10
8
9
8
15
16
1
2
3
4
5
6
7
15
6231
Item Description
1O-ring
2 Backup Ring
3 Retaining Ring
4 Head
5 Seal
6 Wiper Ring
7Rod
8 Wear Ring
Item Description
9Seal
10 Spacer
11 O-ring
12 Piston
13 Locknut
14 Barrel
15 Plug
16 O-ring
Reference Only
