Manitowoc Grove TMS700E - QSM Exhaust System

Grove Published 01-29-2015, Control # 512-01 7-17
TMS700E SERVICE MANUAL POWER TRAIN
7
QSM Exhaust System
2
3
5
1

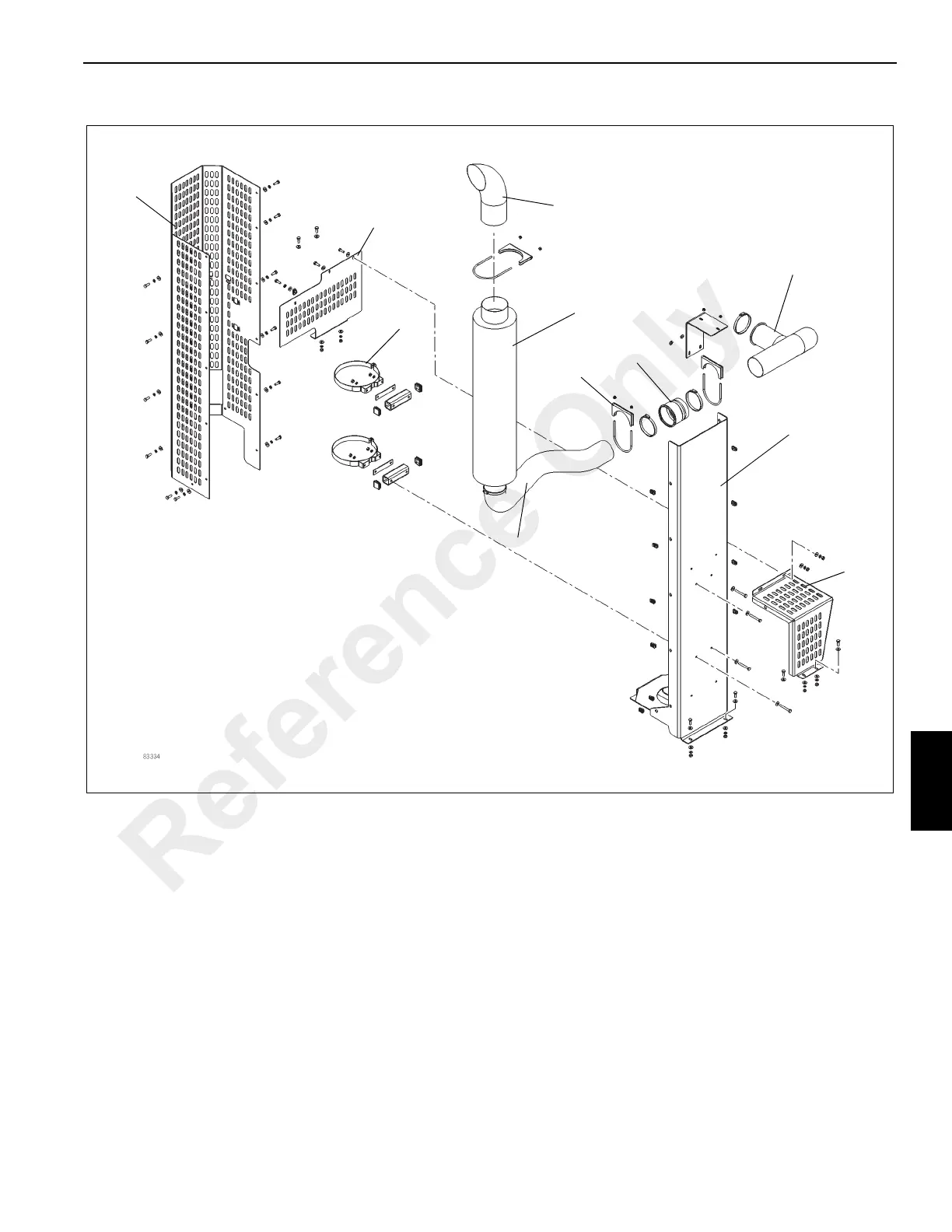

QSM Exhaust System
1. Muffler
2. Tube
3. Exhaust Stack
4. Mounting Band
5. Connector Assembly
6. Engine Exhaust Tube
7. Muffler Clamp
8. Muffler Mount
9. Exhaust Cover
10. Muffler Cover
11. Muffler Guard
4
9
8
6
7
11
10
7
