HYDRAULIC SYSTEM TMS700E SERVICE MANUAL
2-50 Published 01-29-2015, Control # 512-01
PRIORITY FLOW DIVIDER VALVE
Description
The priority flow divider (Figure 2-37) is located on the right
inside carrier frame forward of the front outrigger box. It
provides a controlled flow of oil to the optional air
conditioning compressor motor. The excess flow is passed
via a hydraulic swivel to the inlet of the swing directional
control valve.
On units not equipped with air conditioning, the regulated
flow is returned to the hydraulic reservoir.
Maintenance
Removal
1. Tag and disconnect the hydraulic lines from the valve
and cap or plug all openings and remove valve.
Installation
1. Connect the hydraulic lines as tagged during removal
2. Check the valve and hydraulic connections for leaks.
Make repairs as needed.

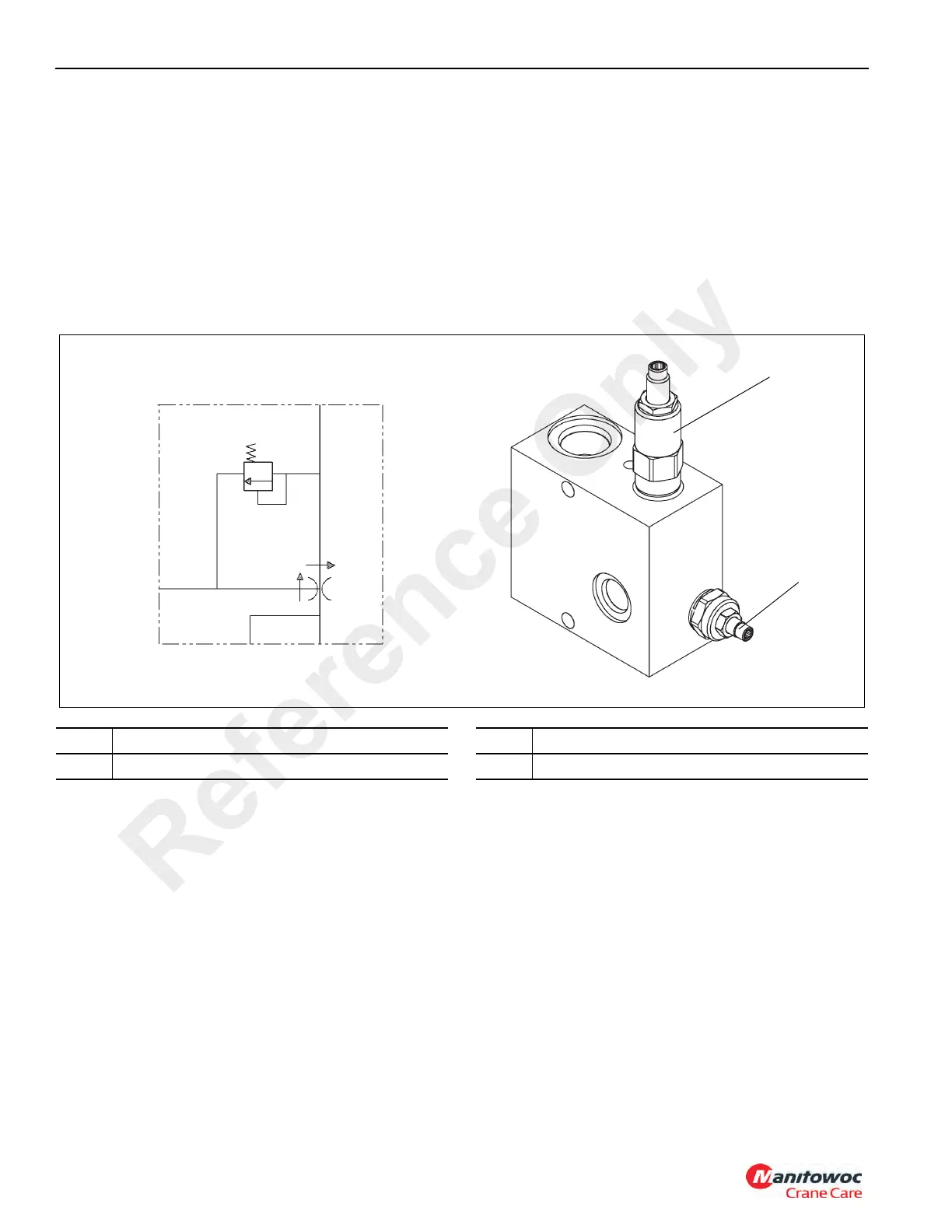

6872-1
FIGURE 2-37
1
6872-2
1500 PSI
10 GPM
A
T
P
2
Item Description
1 Adjustable Relief Valve (103.42 bar [1500 PSI])
Item Description
2 Adjustable Bypass Flow (37.85 lpm [10GPM])
Reference Only
