BOOM TMS700E SERVICE MANUAL
4-24 Published 01-29-2015, Control # 512-01
SWINGAWAY BOOM EXTENSION
Description
A 9.45 m (31 ft) fixed offsettable or a 9.45 to 17.07 m (31 to
56 ft) folding offsetable swingaway boom extension is
provided to obtain additional boom reach.
The boom extension mounts directly to the boom nose
utilizing a four point attachment. In addition, the swingaway
can be stowed on the right side of the boom Section 1.
Removing the attach pins from the attach points on the left
side of the boom nose allows the swingaway to be rotated
and stowed on the right side of the boom Section 1.
The fixed swingaway weighs approximately 774 kg (1706 lb)
and the folding swingaway weighs approximately 1102 kg
(2430 lb).
Maintenance
Removal
NOTE: If an adequate lifting device is available, the
swingaway boom extension can be dismounted
directly from the side of the boom.
See Figure 4-5 for swingawy boom extension
removal and installation illustration.
1. Fully extend and set the outriggers.
2. Position the boom over the rear.
3. If extended, fully retract all the boom sections and lower
the boom to minimum elevation to permit ease of
installation of pins and access to the boom nose.
NOTE: The auxiliary boom nose (rooster sheave) does not
have to be removed.
4. Extend the boom enough to disengage the spring
loaded boom extension stop block (refer to Figure 4-4).
5. Pull down on the handle to disengage the spring loaded
boom extension stop block. Place the end of the handle
in the retainer plate. Fully retract the boom.
NOTE: When the boom retracts, the handle will be
released allowing the stop block to engage when
the boom is extended.
6. Remove the retainer clips from the attach pins stowed in
the base of the swingaway and insert the attach pins
through the attach and anchor fittings on the right side of
the boom nose. Install the retainer clips in the attach
pins.
DANGER
Before attempting to erect or stow the swingaway, read
and strictly adhere to all danger decals installed on the
swingaway and stowage brackets.
CAUTION
If swingaway stinger is not to be removed, it should
remain on the stowage brackets on the side of the boom.

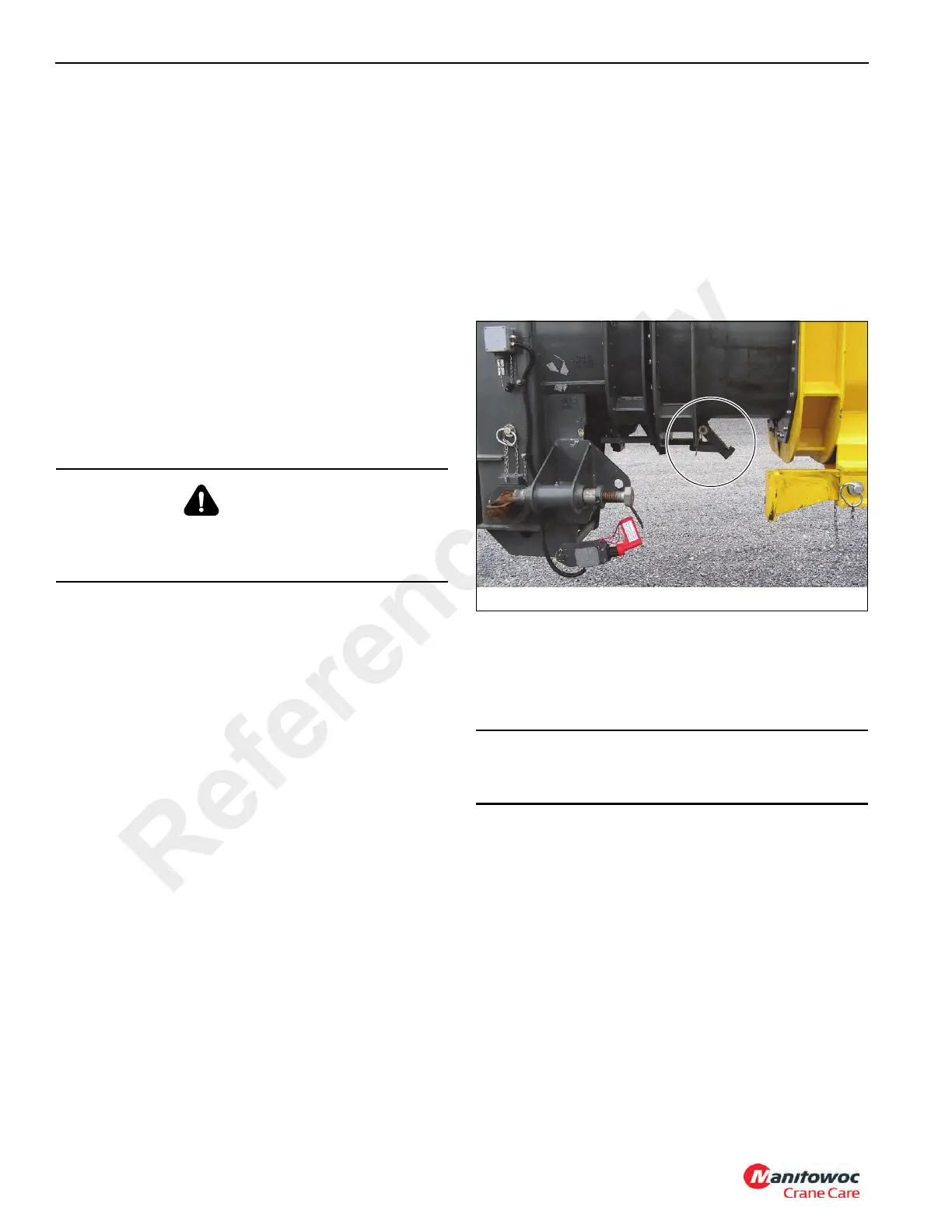

FIGURE 4-4
7921
Reference Only
