the camshaft through the spider and bracket so that the
camshaft turns freely.
Brake Shoe Installation
1. Put the upper brake shoe in position on the top anchor
pin. Hold the lower shoe on the bottom anchor pin and
install the two new retainer springs.
2. Rotate the lower brake shoe forward and install a new
brake shoe return spring (see Figure 8-47).
3. Pull each shoe away from the cam to permit enough
space to install the cam rollers and retainers. Press the
ears of the retainer together to permit the retainer to fit
between the brake shoe webs (see Figure 8-48).
4. Push the retainer into the brake shoe until its ears lock
into the holes in the shoe webs (see Figure 8-49).
5. Install the slack adjuster and adjust brakes. Refer to
Automatic Slack Adjuster, page 8-44.
Seal Lip
Camshaft
Bracket
Spider
Seal Lip

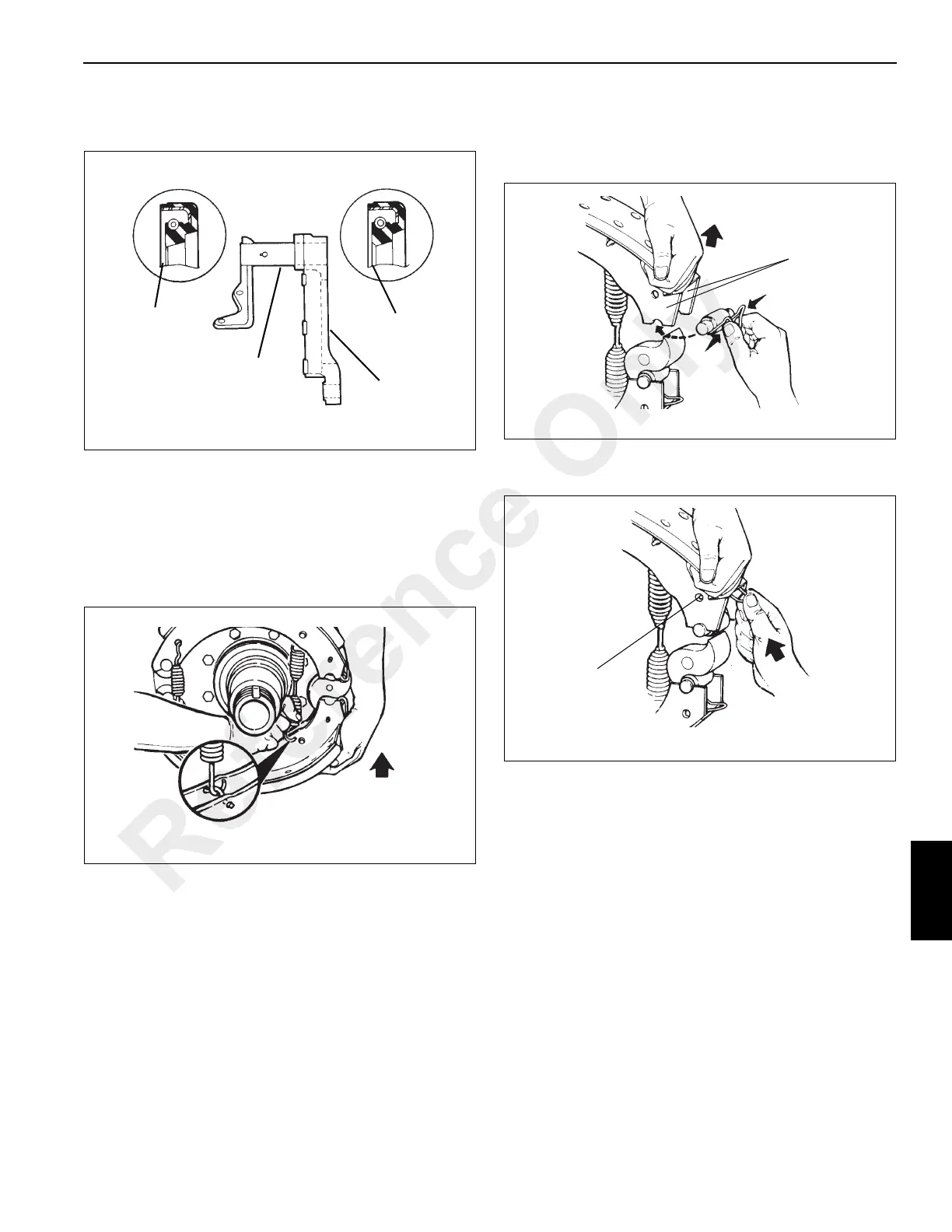

FIGURE 8-46
Rotate the lower shoe
up so that the return
spring can be installed.
FIGURE 8-47
Webs
Squeeze
FIGURE 8-48
Web Hole
Push
FIGURE 8-49
