Grove Published 01-29-2015, Control # 512-01 3-19
TMS700E SERVICE MANUAL ELECTRIC SYSTEM
Installation
1. Verify the pivot shaft and the wiper motor assembly link
and crank are in place on the motor bracket. (Washers
and clip springs fasten the link to the pivot pins on the
crank and the pivot shaft. The pivot shaft’s pivot pin
mounts in the hole nearest the end of the pivot shaft’s
lever.)
2. Connect the wiper motor to the motor bracket with
screws and washers. Connect the wiper motor’s shaft to
the wiper motor assembly crank with the nut and
washer.
3. Secure the adapter and the gasket of the pantograph
adapter assembly to the cab exterior with capscrews
and lockwashers.
4. Install the motor bracket and attached parts in the cab
interior with attaching hardware. Ensure the pivot shaft
sticks through the hole in the pantograph adapter
assembly.
NOTE: Take care not to damage any parts while moving
the bracket and attached parts around the steering
column.
5. Secure the pivot shaft to the pantograph adapter with the
pivot shaft assembly’s nut and washers. Install the
flanged sleeve on the pivot shaft.
6. Install the wiper arm on the shafts of the pantograph
adapter assembly and the pivot shaft assembly. Secure
the wiper arm to the pantograph adapter assembly shaft
with the assembly’s own washer and cap nut. Secure
the wiper arm to the pivot shaft with the pivot shaft
assembly’s own tapered sleeve, washer, and cap nut.
7. Connect the wiper arm’s washer hose to the washer
nozzle fitting assembly.
8. Connect the electrical leads to the wiper motor as
marked before removal.
9. Connect the battery.
Check
1. Squirt some cleaning fluid onto the windshield with the
windshield washer.
2. Operate the windshield wiper. Verify it works. (Replace
wiper blade as needed if it streaks or otherwise wipes
poorly.)
Windshield Washer Assembly Replacement
Removal
1. Disconnect the battery.
2. Locate the windshield washer container and pump.
3. Tag and disconnect the pump’s electrical lead and
ground wire.
4. Disconnect the hose from the windshield washer pump.
Point it so it won’t spill cleaning fluid. Catch cleaning fluid
from the windshield washer container with a suitable
container.
5. Remove four self tapping screws securing the
windshield washer container. Remove the windshield
washer container and pump.
6. Remove pump and pump seal from container.

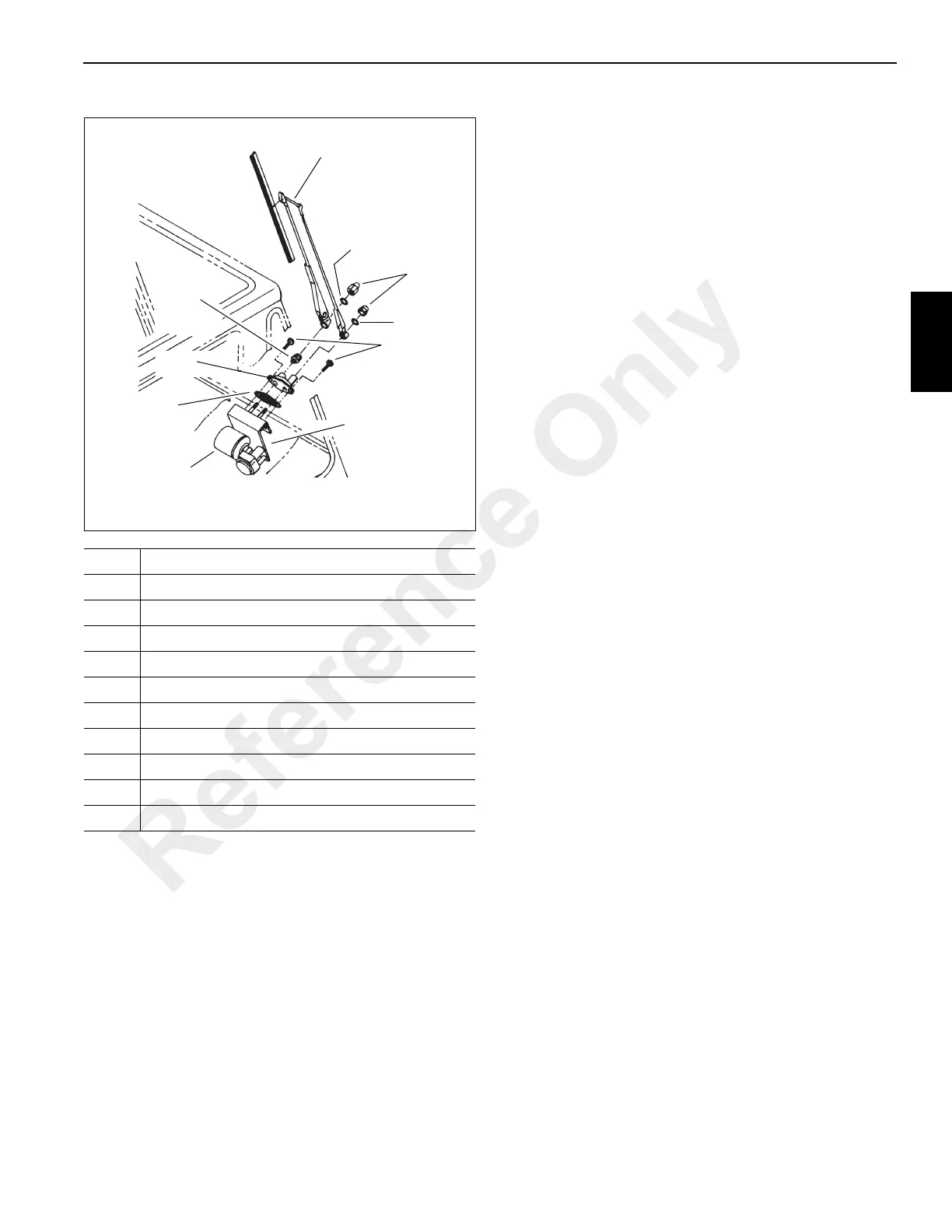

Item Description
1 Windshield Wiper Arm
2 Washer
3Nuts
4 Washer
5 Screws
6 Mounting Bracket
7 Serrated Collar
8 Mounting Plate
9 Gasket
10 Motor
3653
1
2
3
4
5
6
7
8
9
10
FIGURE 3-6
Reference Only
