TMS700E SERVICE MANUAL BOOM
4

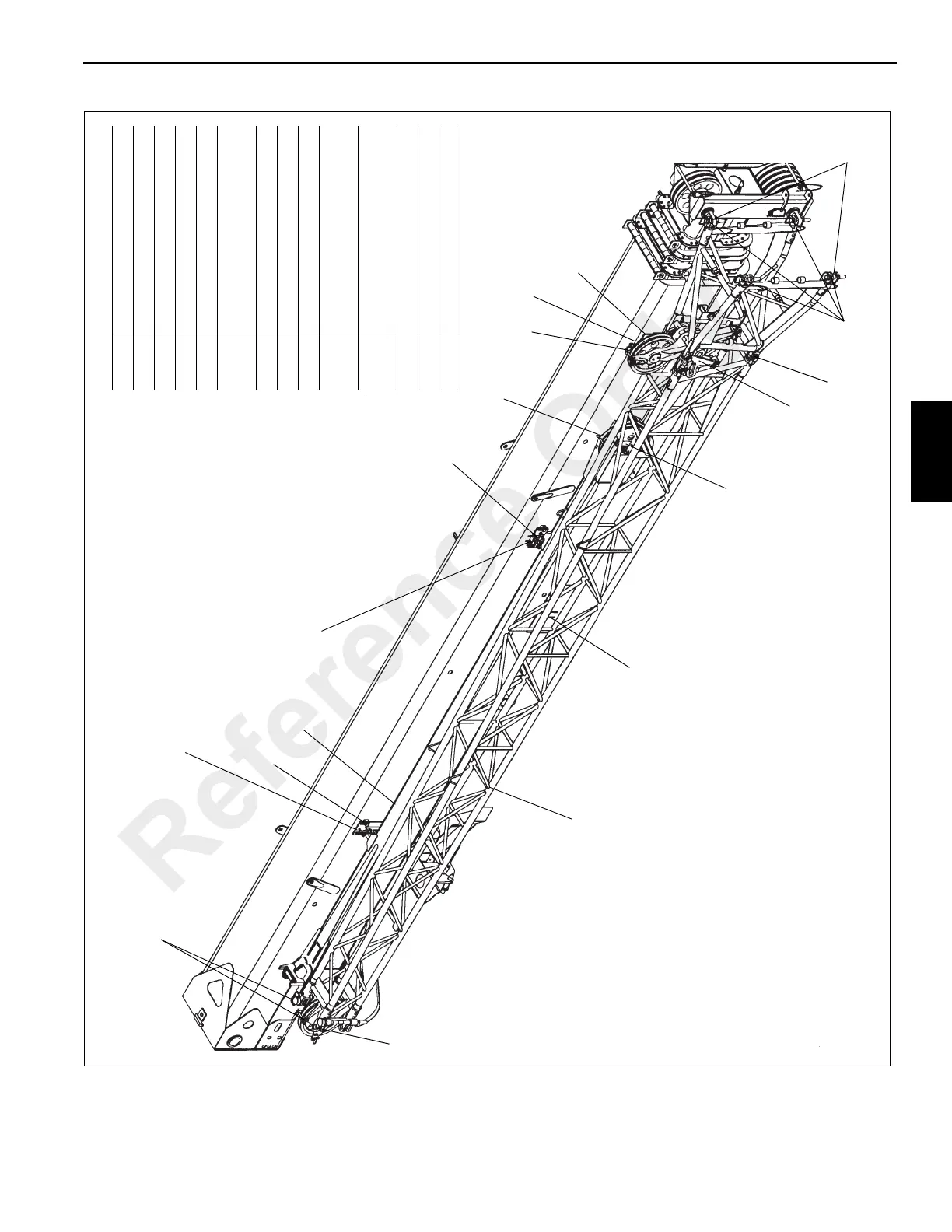

FIGURE 4-5
Item Description
1 Base To Section 4 Attach Pins 2 Section 1 3 Section 4 Section 4 Rear Stowage Bracket 5
Section 4 Section Front Stowage Bracket
6 Front Stowage Bracket 7 Swingaway Base Sheave 8Mast Assembly 9
Boom Nose To Swingaway Attach Fitting
10
Boom Nose To Swingaway Attach Pins
11 Offset Links 12 Offset Pivot Point 13 Section 4 Sheave
2
7
4
3
Detail C
5
Detail E
11
12
10
9
6
8
13
1
Detail D
Section 4 Rear Stowage Bracket
Detail B
Section 4 Front Stowage Bracket
Detail A
Front
Reference Only
