Manitowoc Grove TMS700E

HYDRAULIC SYSTEM TMS700E SERVICE MANUAL
2-72 Published 01-29-2015, Control # 512-01

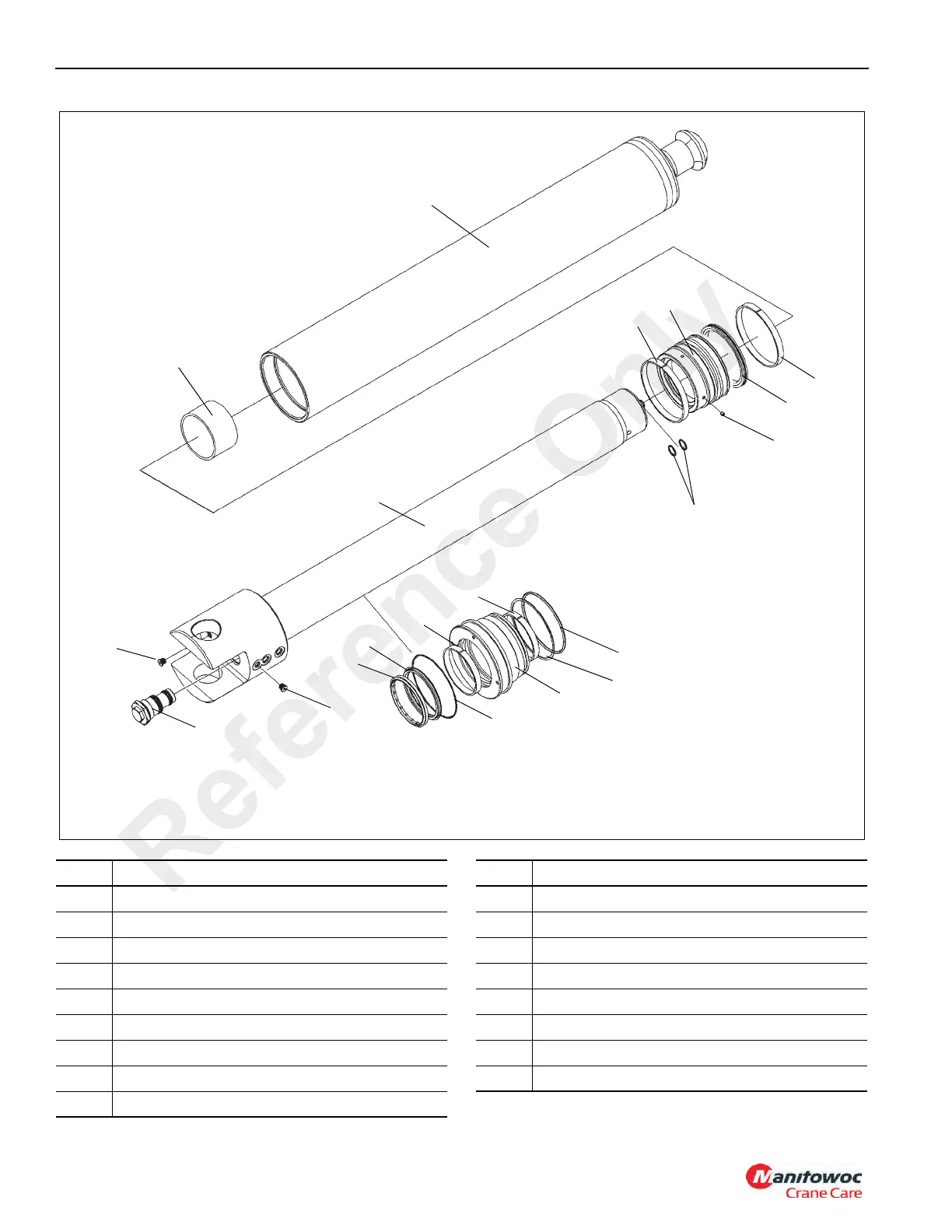

FIGURE 2-55
4
4
3
11
17
16
6
9
8
7
7
10
15
14
12
1
13
5
15
2
6229
Item Description
1 Barrel
2Spacer
3 Pilot Check Valve
4Plug
5Rod
6 Head
7 Wear Ring
8 Backup Ring
9O-ring
Item Description
10 O-ring
11 Wiper Ring
12 Setscrew
13 Piston
14 Ring Seal
15 Wear Ring
16 O-ring
17 Ring Seal
Reference Only
