HYDRAULIC SYSTEM TMS700E SERVICE MANUAL
2-76 Published 01-29-2015, Control # 512-01
.

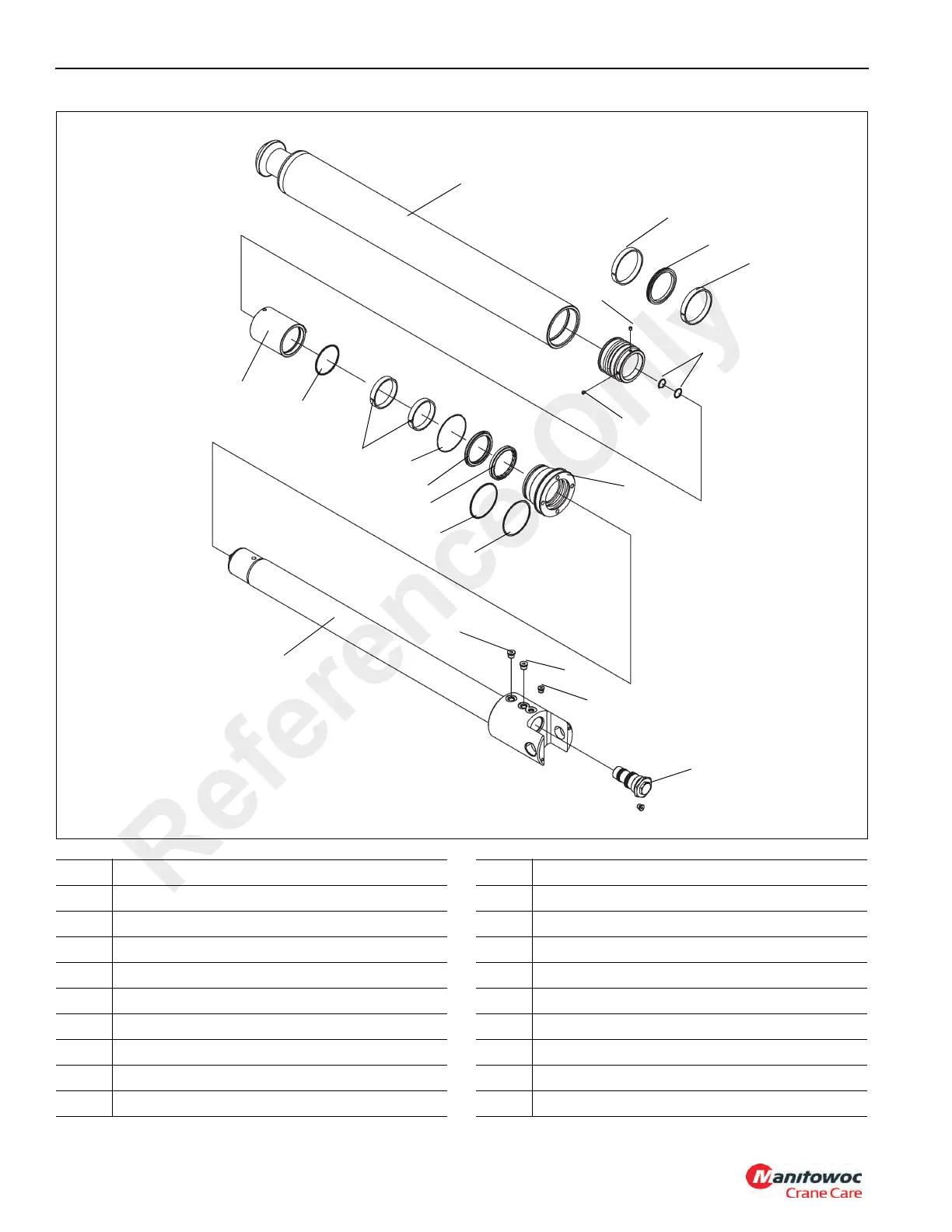

FIGURE 2-58
18
13
13
12
14
10
16
7
8
11
15
3
2
1
4
11
5
9
6
9
17
6467
Item Description
1O-ring
2 Backup Ring
3O-ring
4 Wiper Ring
5O-ring
6 Seal
7 Seal
8 Wear Ring
9 Wear Ring
Item Description
10 O-ring
11 Setscrew
12 Plug
13 Plug
14 Pilot Check Valve
15 Head
16 Spacer
17 Barrel
18 Rod
Reference Only
