Grove Published 01-29-2015, Control # 512-01 7-5
TMS700E SERVICE MANUAL POWER TRAIN
13. As needed, install ether cylinder if removed earlier.
14. Connect the battery cables, starting aid valve connector,
and engine electrical connections as marked during
removal.
15. Attach lifting device to and install the boom rest and after
treatment assembly.
16. Install the engine hood assembly, counterweight
stowage frame work, and the removed decking.
17. Plug after treatment wiring harness to carrier harness
and after treatment assembly and install straps to the
boom rest tie bars.

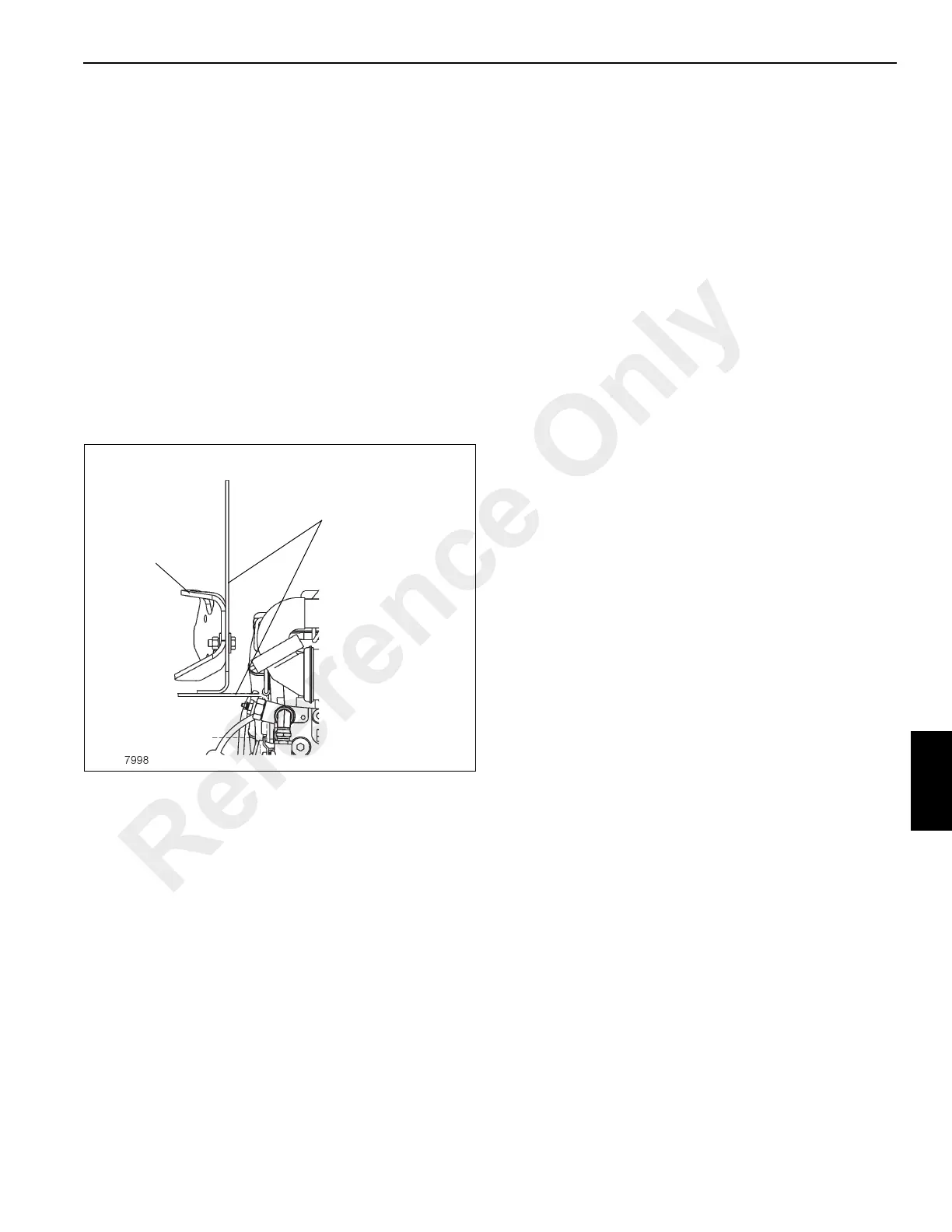

18. Remove the rear engine lifting bracket from the engine
and bolt it on the exhaust tubing clamp mounting bracket
(Figure 7-2). Install the exhaust tubing clamp mounting
bracket where the lifting bracket was removed. Install
the exhaust tubing and connect it to the engine.
19. Connect the starting aid tubing to the nozzle in the intake
manifold. Verify the nozzle orifice points upstream.
20. Connect the air cleaner tubing at the engine and air
cleaner.
21. Service the engine lubricating system, hydraulic
reservoir, and the engine cooling system.
22. Connect the battery.
23. Position the start relay on the inside of the hood and
secure with the bolts, washers, lockwashers, and nuts.
24. Fill the transmission with SAE GRADE 50 synthetic gear
lubricant (Spec. 6829013433).
25. Prime the fuel system and hydraulic pumps and start the
engine. Check all hoses for leaks.
26. Run the engine and transmission to fill the transmission
cooler and its lines to and from the transmission. Stop
the engine, check the transmission fluid level again, and
add SAE GRADE 50 synthetic gear lubricant to fill the
transmission to the full mark.
27. Shut down the engine and check all fluid levels.
Exhaust Tubing
Clamp Mounting
Bracket
(2 pieces)
Lifting
Bracket
FIGURE 7-2
Reference Only
