POWER TRAIN TMS700E SERVICE MANUAL
7-10 Published 01-29-2015, Control # 512-01

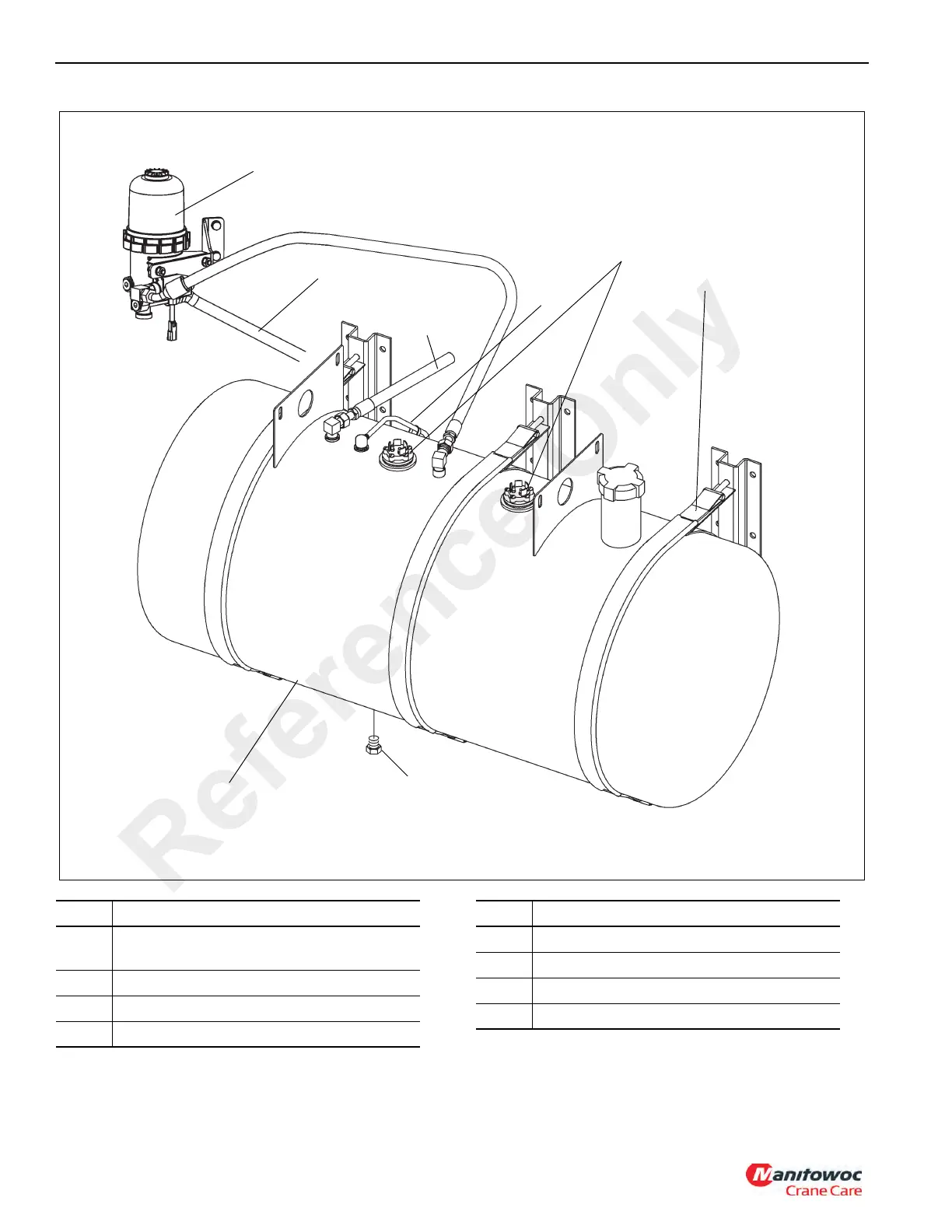

FIGURE 7-4
2
3
1
5
4
6
8
7
6781-1
Item Description
1
Fuel Return Line - From Fuel Cooler (QSM
shown)
2 Fuel Supply Line - To Engine
3 Fuel Filter-Water Separator
4 Fuel Level Senders
Item Description
5 Vent Tube
6 Mounting Strap
7 Fuel Tank
8Plug
Reference Only
