3. Run the engine for 5 minutes and recheck the
antifreeze/coolant level. Refill as necessary repeating
step 1.
Engine Antifreeze/Coolant Fill Procedure (after a
complete draining of the system)
NOTE: If the engine coolant is changed, the coolant filter
must also be changed.
1. Open cab heater line valves and SCR cooling line
valves.
2. Open petcocks at the Diesel Exhaust Fluid (DEF) Tank
(1,2) (Figure 7-8), Decomposition Pipe enclosure (3)
and Top Radiator Tube to allow trapped air to bleed.
3. Slowly fill the system at 11 l/min (3.0 gpm) to the bottom
of the surge tank fill neck.
NOTE: A fill rate faster than 11 l/min (3.0 gpm) can give a
false reading.
4. Verify a steady stream of fluid (no more than 1 l (1 qt)) at
DEF tank petcocks (1 and 2) then close.
5. Verify a steady stream of fluid (no more than 1 l (1 qt)) at
the decomposition pipe enclosure petcock (3) then
close.
6. Verify a steady stream of fluid (no more than 1 l (1 qt)) at
the top radiator tube petcock then close.
7. Start the engine and run at idle for 10 seconds.
Accelerate to high idle for 1 minute and return to idle.
8. Top off the surge tank.
9. Operate the engine through two (2) thermal cycles and
re-check the fluid level. Re-fill as necessary repeating
Step #3.
Antifreeze/Supplemental Coolant Additives
Maintenance Summary
Cooling System Level Check Interval
Daily or 10 hours
The cooling system level should be checked every 10 hours
of operation or daily, whichever comes first. Refer to
Lubrication, page 9-1.
SCA Level Check/Coolant Filter Change Interval
6 months or 500 hours
• Check SCA Levels (use only Coolant Test Kit, Grove P/
N 9414101675, to check the coolant additive
concentration in the cooling system).
The Coolant Filter contains molybdate. Therefore, it is
important to use the Grove Coolant Test Kit, which
checks the molybdate level, regardless of whether the
SCA used to replenish the coolant system contains
molybdate or not.
Only add coolant additive if levels are less than 1.2 units/
gal.
NOTE: An inadequate concentration of coolant additive
can result in major corrosive damage to the cooling
system components. Over concentration can
cause formation of a “gel” that can cause restriction
or plugging of coolant passages, and overheating.
• Change coolant filter.

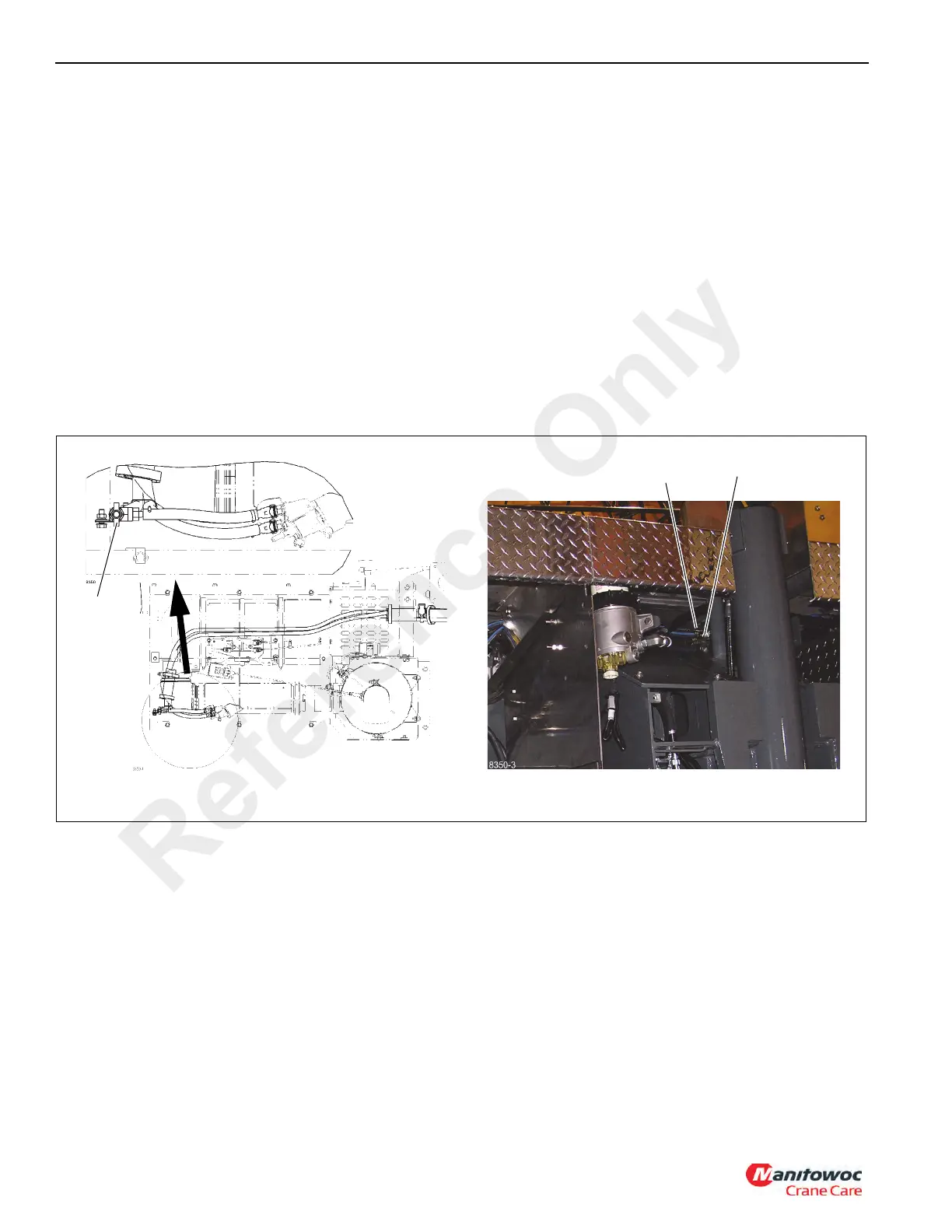

FIGURE 7-8
1
2
3
Reference Only
