LUBRICATION TMS700E SERVICE MANUAL
9-12 Published 01-29-2015, Control # 512-01
40. Retract Cable Sheaves
Lube Type - EP-MPG
Lube Interval - 250 hours or 3 months, whichever
interval occurs first
Lube Amount - Until grease extrudes
Application - 2 grease fittings; extend boom for entry
through access holes in front of Section 2.
41. Telescope Cylinder Wear Pads
Lube Type - EP-MPG
Lube Interval - Every boom teardown.
Lube Amount - Thoroughly coat all areas the wear pads
move on.
Application - By brush: 2 places.
NOTE: Should boom chatter or rubbing noises in the boom
occur, it will be necessary to lubricate the telescope
cylinder wear pads. By adding an extension
adapter to a grease gun the wear pads and wear
areas can be reached through the lubrication
access holes in the side of the boom and through
the access hole in the boom nose between the
sheaves. Extend boom for access to holes as
needed.
42. Section 2 Side Wear Pads
Lube Type - EP-MPG
Lube Interval - 250 hours or 3 months, whichever
interval occurs first
Lube Amount - Thoroughly coat all areas the wear pads
move on.
Application - By brush: 2 places; with boom in extended
position through access holes in Section 1.
43. Boom Section Upper Wear Pads
Lube Type - EP-MPG
Lube Interval - 50 hours or 1 week, whichever interval
occurs first
Lube Amount - Until grease extrudes
Application - 6 grease fittings; with boom in extended
position through access holes.

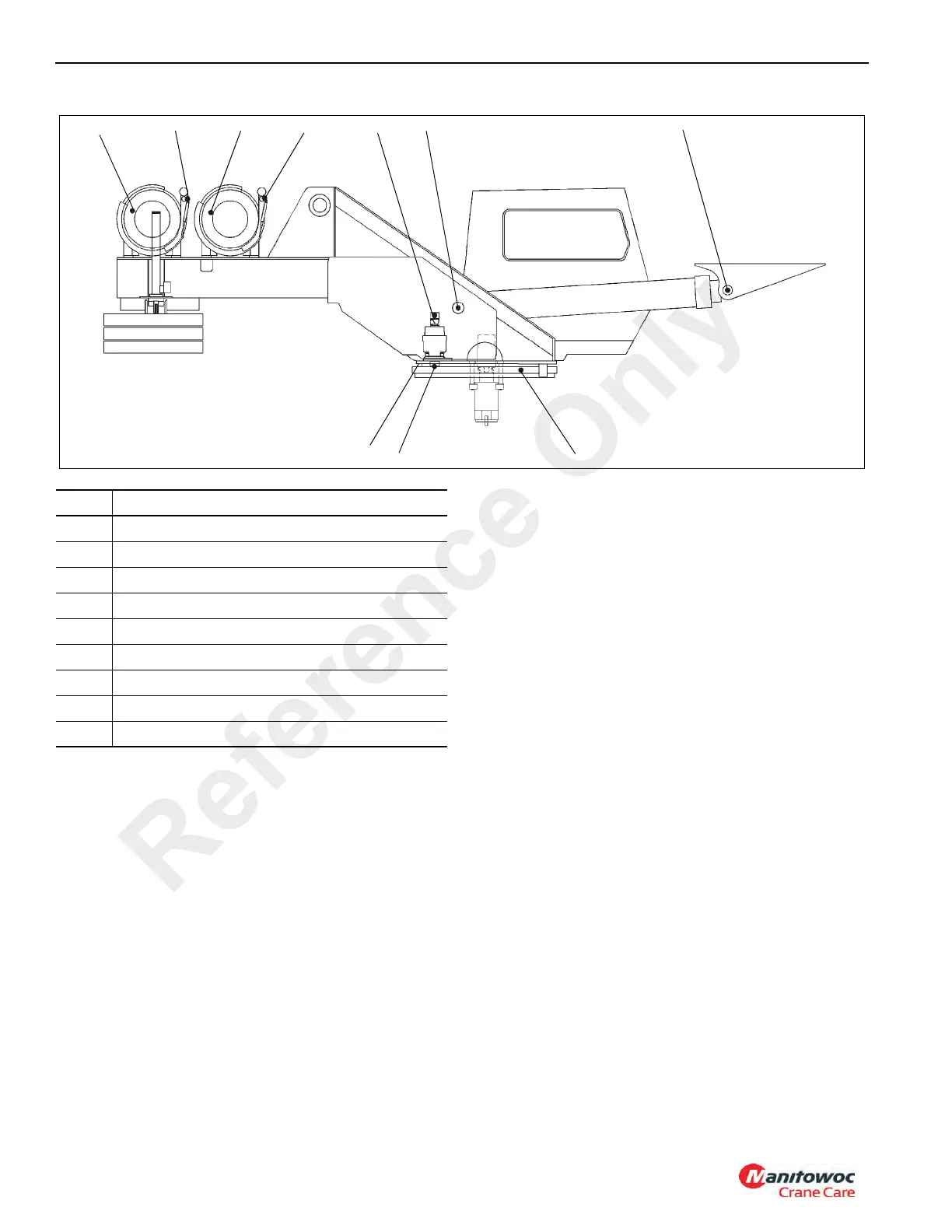

FIGURE 9-3
30
36
37 35
37
34
32
31
33
32a
Item Description
30 Turntable Gear Box
31 Turntable Gear and Drive Pinion
32 Turntable Bearing
32a Swivel Lock Pin
33 Upper Lift Cylinder Pivot Pin
34 Lower Lift Cylinder Pivot Pin
35 Main Hoist
36 Auxiliary Hoist (Optional)
37 Cable Guard Roller and Guide Roller (possible)
Reference Only
