HYDRAULIC SYSTEM TMS700E SERVICE MANUAL
2-42 Published 01-29-2015, Control # 512-01
NOTE: The holding valve should turn by hand until
compression of the O-rings begins.
4. Carefully install the holding valve into the port block until
fully seated.
5. Test the check valve and port block by operating the lift
cylinder and/or the telescope cylinder, as applicable.
Verify lift cylinder and/or telescope cylinder works
without problems; verify there is no leaking. Make
repairs as needed.
CAUTION
Do not damage the O-rings during installation of the
holding valve. If the holding valve turns freely then gets
hard to turn, then easy to turn; remove the holding valve
and check the O-rings. They have probably been
damaged by a sharp edge of a port.
1
2
6
5
6
4
3
2
4
1
5
3

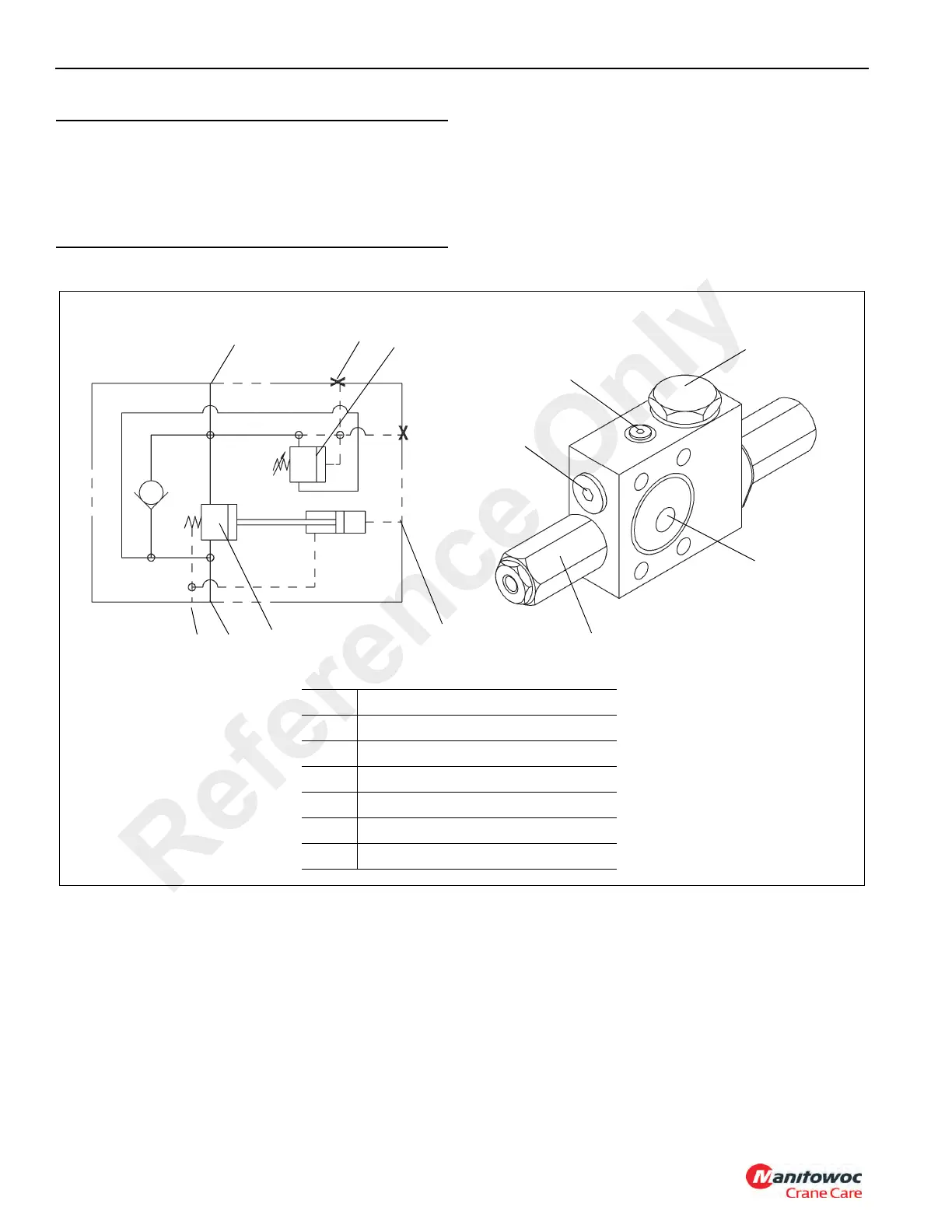

Item Description
1 Cylinder Port
2 Gauge Port
3Drain
4Valve Port
5 Pilot
6 Thermal Relief
FIGURE 2-30
6139-1
6139-2
Reference Only
