Manitowoc Published 05-26-17, Control # 238-02 4-9
MLC165-1 SERVICE/MAINTENANCE MANUAL BOOM
4
4
Replacement Specifications
Any strap not within specifications listed in Table 4-1 must be
replaced.
Table 4-1Strap Specifications
Corrosion or Abrasion
See Figure 4-8 for the following procedure.
For quick identification by repair workers, clearly mark
damaged areas with brightly colored tape.
1. Sandblast to remove corrosion. Do not grind!
2. Determine reduction in cross-sectional area.
3. If reduction is less than 3% of strap cross-sectional area,
paint strap to maintain continuous protective coating.
4. If reduction is 3% or more of strap cross-sectional area,
remove strap from service.
WARNING
If damage to strap exceeds that allowed within
specification, do not operate crane until strap has been
replaced.
Operating crane with a damaged strap can cause
structural failure or collapse of boom, jib, mast, or other
crane components.
Condition Reference
Allowable
Tolerance
or Deviation
Corrective Action
Dent
Figure 4-7
View A
< 3% of strap
thickness
Monitor condition.
≥ 3% of strap
thickness
Remove strap
from service.
Crack or
Break
Figure 4-7
View B
None
Remove strap
from service.
Kink
Figure 4-7
View C
None
Remove strap
from service.
Corrosion
or Abrasion
Figure 4-8
<3% of strap
cross-
sectional area
Sandblast and paint
to maintain
continuous
protective coating.
≥3% of strap
cross-
sectional area
Remove strap
from service.
Straightness
(gradual or
sweeping
bend)
Figure 4-9
Table 4-2
Remove strap from
service if deviation
exceeds maximum
allowed.
Flatness
(includes
twisted
straps)
Figure 4-10
Table 4-3
Remove strap from
service if deviation
exceeds maximum
allowed.
Elongated
Holes
Figure 4-11
None
Remove strap
from service.
Length
Figure 4-12
None
Remove strap
from service.
< = less than
≥ = equal to or greater than

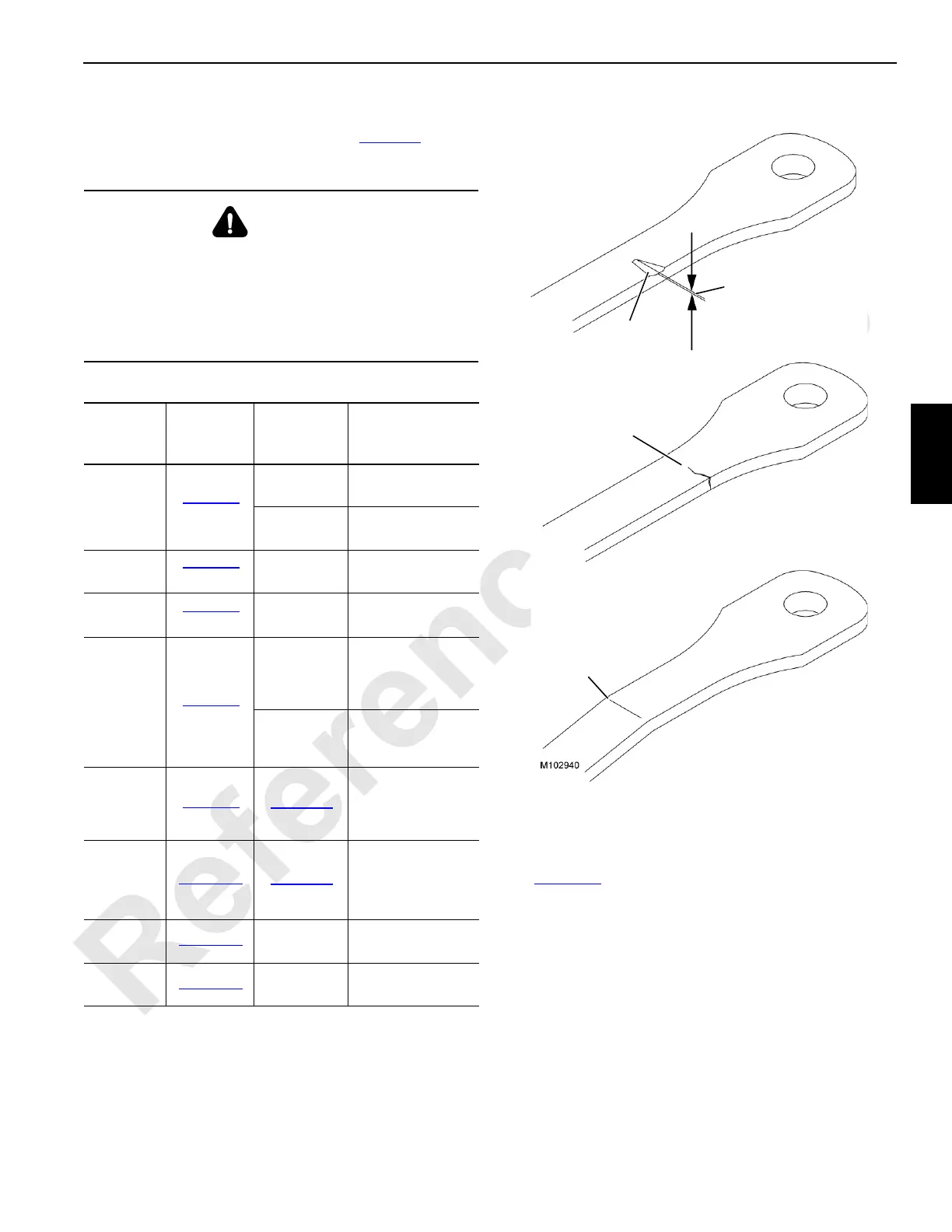

Figure 4-7
Dent
Depth
of Dent
Kink
Do not straighten or bend into
alignment. Remove from service.
Crack or
Break
Do not weld. Strap cannot be
repaired. Remove from service.
View A
View B
View C
