HYDRAULIC SYSTEM MLC165-1 SERVICE/MAINTENANCE MANUAL
2-32
Published 05-26-17, Control # 238-02
Swing Speed Test
NOTE Perform this check in an area where crane can be
swung without interference.
1. At the main display, navigate to the Swing Diagnostic
screen (Figure 2-29 on page 2-32
).
2. Start engine and run at high idle.
3. Move the swing handle fully left.
4. At the Swing Diagnostic screen, verify the swing speed
is within the limits of Table 2-1 on page 2-15
.
5. Return the swing handle to the center and allow the
rotating bed to come to a stop.
6. Move the swing handle fully right.
7. At the Swing Diagnostic screen, verify the swing speed
is within the limits of Table 2-1 on page 2-15
.
8. Return the swing handle to the center and allow the
rotating bed to come to a stop.
9. Shut off the engine.

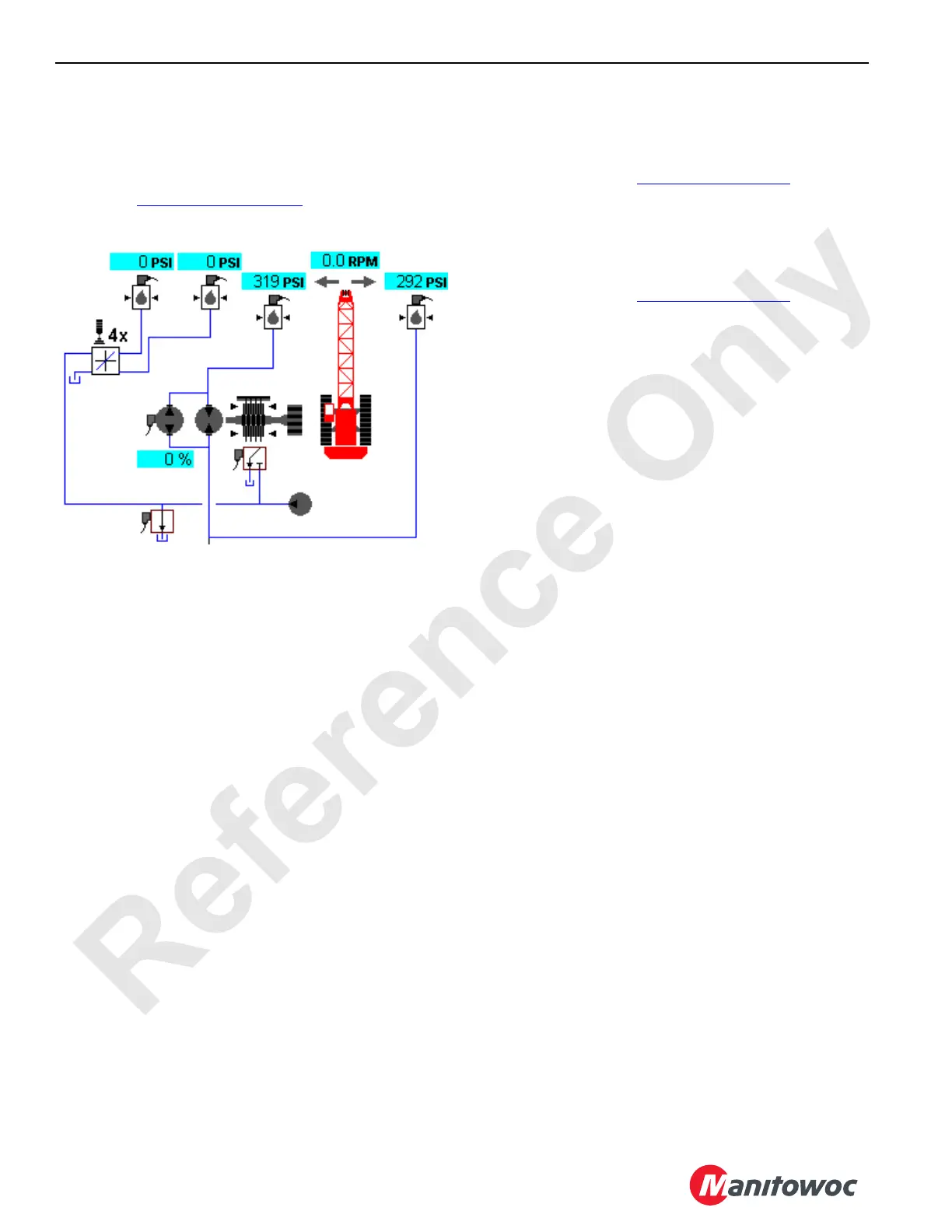

Figure 2-29. Swing Diagnostic Screen
M100926
