Manitowoc MLC165-1 - Minimum Bail Limits and Pressure Rollers (Drums 1 and 2)

Reference Only
HOISTS MLC165-1 SERVICE/MAINTENANCE MANUAL
5-40
Published 05-26-17, Control # 238-02
MINIMUM BAIL LIMITS AND PRESSURE
ROLLERS (DRUMS 1 AND 2)
The optional minimum bail limits and pressure rollers for the
front and rear drums are identified in Figure 5-28
.
Item Description Note
1 Drum 1 (front drum) Bail Limit See Minimum Bail Limit (Drum 1 and 2)
on page 5-43.
2 Drum 2 (rear drum) Bail Limit See Minimum Bail Limit (Drum 1 and 2)
on page 5-43.
3 Drum 2 (rear drum) Pressure Roller See Pressure Roller (Drum 2)
on page 5-45.
4 Drum 1 (front drum) Pressure Roller See Pressure Roller (Drum 1)
on page 5-45.

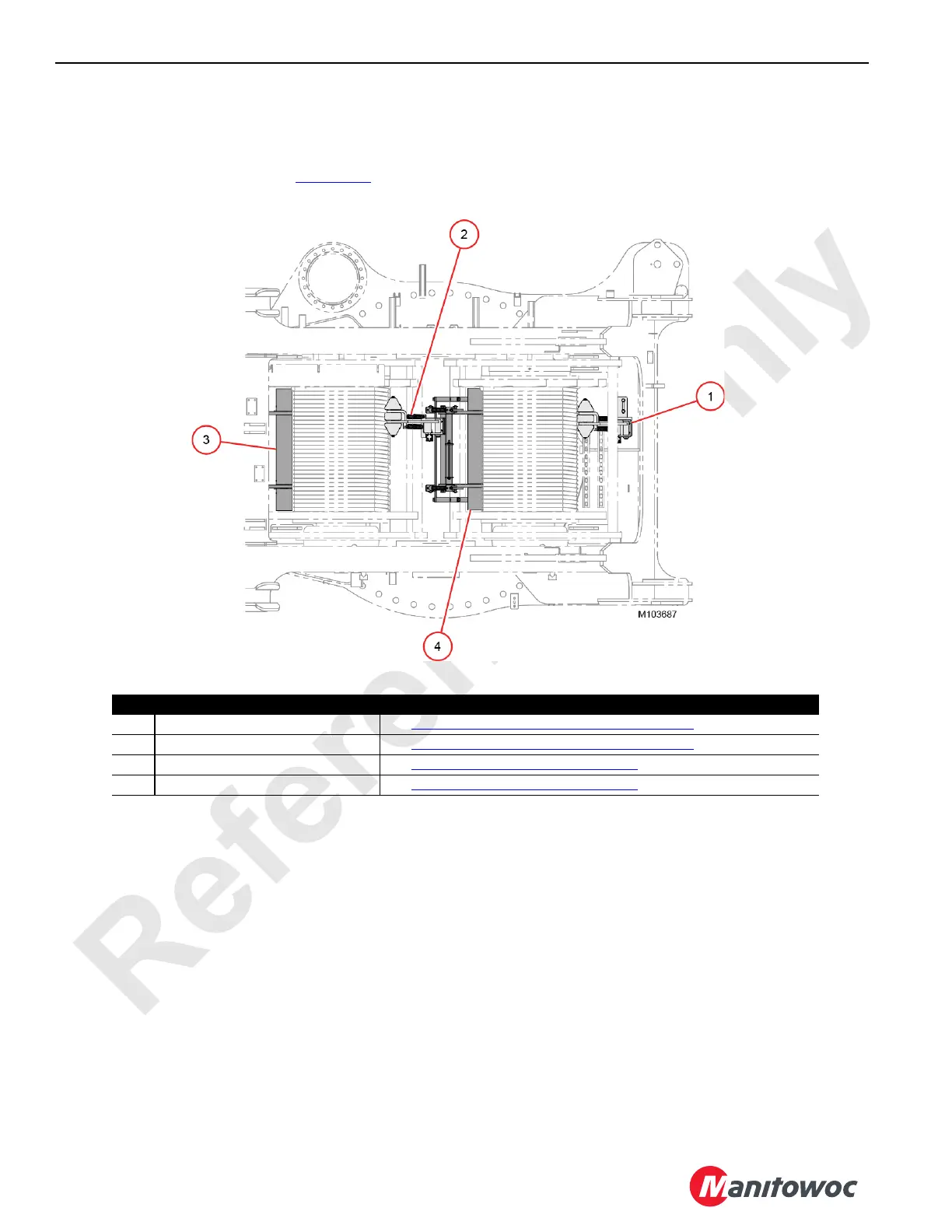

Figure 5-28. Minimum Bail Limits and Pressure Rollers (Drums 1 and 2)
