Manitowoc Published 05-26-17, Control # 238-02 2-11
MLC165-1 SERVICE/MAINTENANCE MANUAL HYDRAULIC SYSTEM
2
2
Accessory Manifold
The accessory manifold receives flow from the accessory
pump. Solenoid valves in the manifold control flow to the
accessory cylinders listed in Figure 2-14
. The lower
accessory valve, HS-502, of the manifold is driven by node
5. When the operator enables the manual valves from the
main display screen, HS-502 opens, providing flow to the
carbody valve manifold.

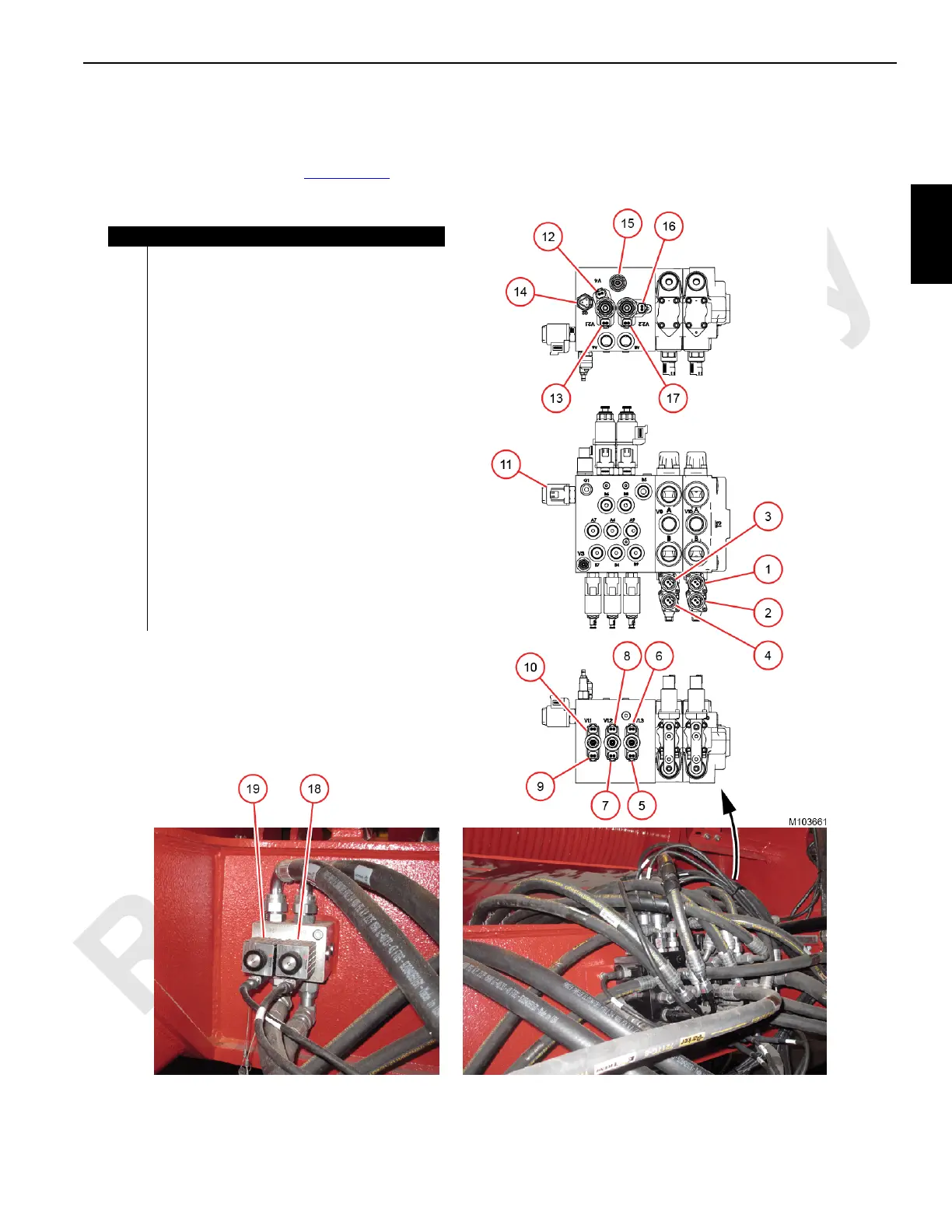

Figure 2-14. Accessory Manifold
Item Description
1 Mast-Assist Arm Cylinder Extend
2 Mast-Assist Arm Cylinder Retract
3 Self-Assembly Cylinder Extend
4 Self-Assembly Cylinder Retract
5 Counterweight Inner Pins Extend
6 Counterweight Inner Pins Retract
7 Boom Hinge Pins Extend
8 Boom Hinge Pins Retract
9 Cab Tilt Cylinder Extend
10 Cab Tilt Cylinder Retract
11 Lower Accessories Enable
12 Left Counterweight-Handling Cylinder Extend
13 Left Counterweight-Handling Cylinder Retract
14 Accessories Pressure Transducer
15 Warning Circuit Enable
16 Right Counterweight-Handling Cylinder Extend
17 Right Counterweight-Handling Cylinder Retract
18 Rigging Winch In
19 Rigging Winch Out
Under Rear of Rotating Bed Looking Forward
