Manitowoc MLC165-1 Service Maintenance Manual

Reference Only
Manitowoc Published 05-26-17, Control # 238-02 2-27
MLC165-1 SERVICE/MAINTENANCE MANUAL HYDRAULIC SYSTEM
2
2
Replacing the Swing Filter
See Figure 2-26 for this procedure.
Replace the swing filter element (on top of swing pump) if the
visual indicator (1) turns from green to red and at each oil
change interval.
To replace the swing filter:
1. Stop the engine.
2. Close the hydraulic tank shutoff valve.
3. Remove the swing pump FA port plug (2) to drain the oil
from the swing filter into a suitable container.
4. Reinstall the swing pump FA port plug.
5. Remove the filter bowl (3) by rotating it counter-
clockwise.
6. Remove the used filter element and dispose of it
properly.
7. Lubricate the filter bowl threads using clean hydraulic oil.
8. Inspect and lubricate the new filter element O-ring (5)
using clean hydraulic oil.
9. Install the filter element onto the filter head.
10. Install the filter bowl onto the filter head by rotating it
clockwise and tightening.
11. Start the engine and allow it to idle for five minutes to
allow the charge pump to fill the filter and purge air
before swinging.
12. Run the swing hydraulic system and check for leaks.
Service as required.

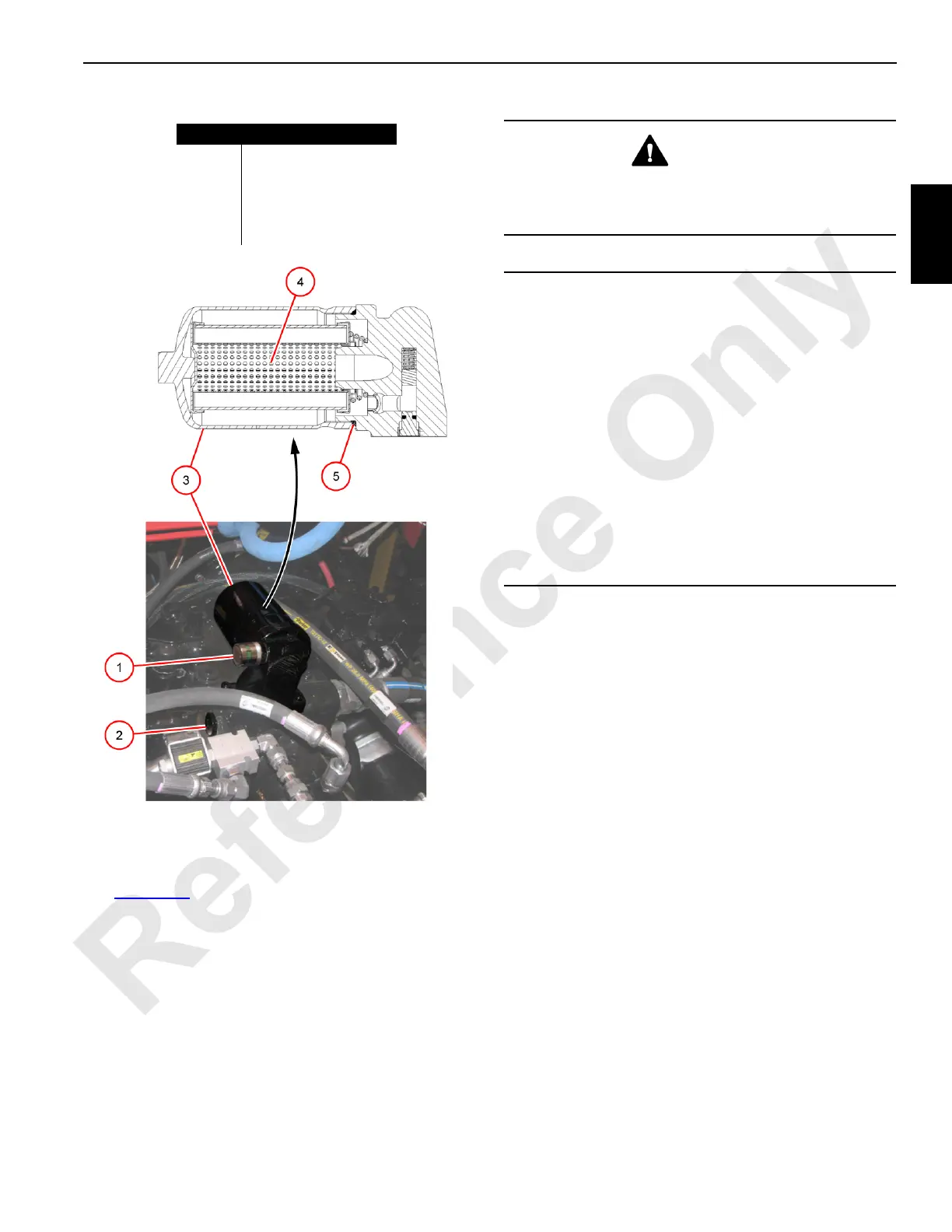

Figure 2-26. Swing Filter
M100509
Item Description
1 Visual Indicator
2 Swing Pump FA Port
3Filter Bowl
4 Filter Element
5 Filter Element O-Ring
WARNING
Burn Hazard
Oil in the swing pump may be extremely hot. Allow the
hydraulic oil to cool before replacing the swing filter.
CAUTION
Avoid Hydraulic System Damage
Original Equipment Manufacturers’ filter elements—
available from Manitowoc—must be used on this crane.
Substituting with any other brand or type filter element is
not allowed.
Filter elements made by other manufacturers may
collapse under pressure. This action will allow unfiltered
oil to be drawn into hydraulic system—pumps, motors,
and valves can be destroyed.
Manitowoc will reject warranty claims for damaged
hydraulic components if proper hydraulic filter elements
are not used.
Do not attempt to clean or reuse elements.
Do not operate crane without filter elements installed.
