HYDRAULIC SYSTEM MLC165-1 SERVICE/MAINTENANCE MANUAL
2-28
Published 05-26-17, Control # 238-02

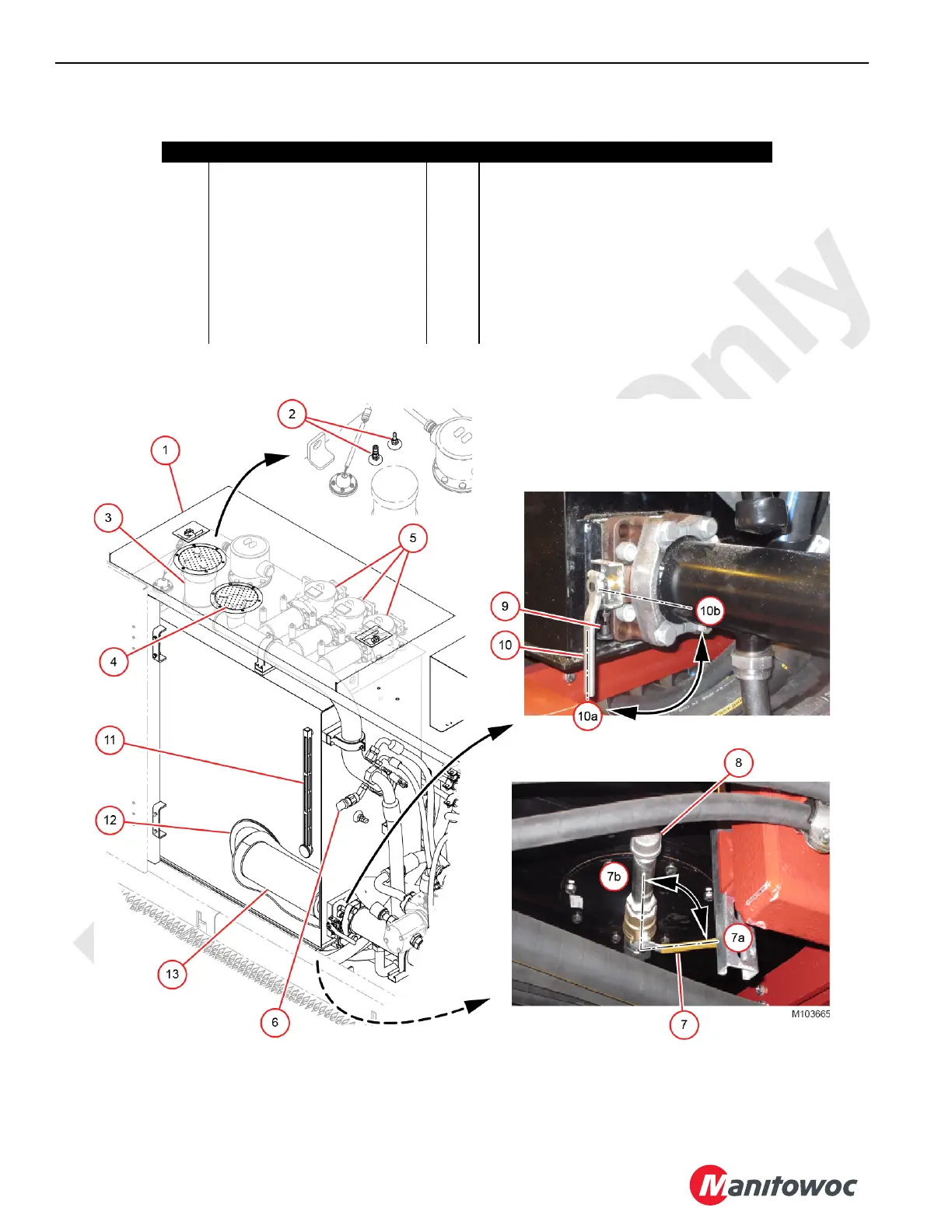

Figure 2-27. Hydraulic Tank
Item Description Item Description
1 Cover 8 Drain Pipe
2 Air Vent Valves (2) 9 Locking Pin (pull out to turn handle)
3 Breather (see NOTE) 10 Shut-off Handle
4 Manual Fill Port Plug (see NOTE) 10a Closed Position
5 Return Filters (3) 10b Opened Position
6 Power-Fill Coupling 11 Oil Level Gauge with Temperature Gauge
7 Drain Valve Handle 12 Access Cover
7a Closed Position 13 Suction Filter (Accessible under threaded cover)
7b Opened Position
