Manitowoc Published 05-26-17, Control # 238-02 2-7
MLC165-1 SERVICE/MAINTENANCE MANUAL HYDRAULIC SYSTEM
2
2
Swing Motor
Figure 2-9 illustrates the swing motor. See Swing System
Overview on page 6-1 for a detailed operational description
of the swing system.
Cooling Fan Motor
The cooling fan motor (Figure 2-10) is a fixed-displacement
motor that rotates the cooling fan. The motor is driven by the
fan-cooling pump. illustrates the fan motor.

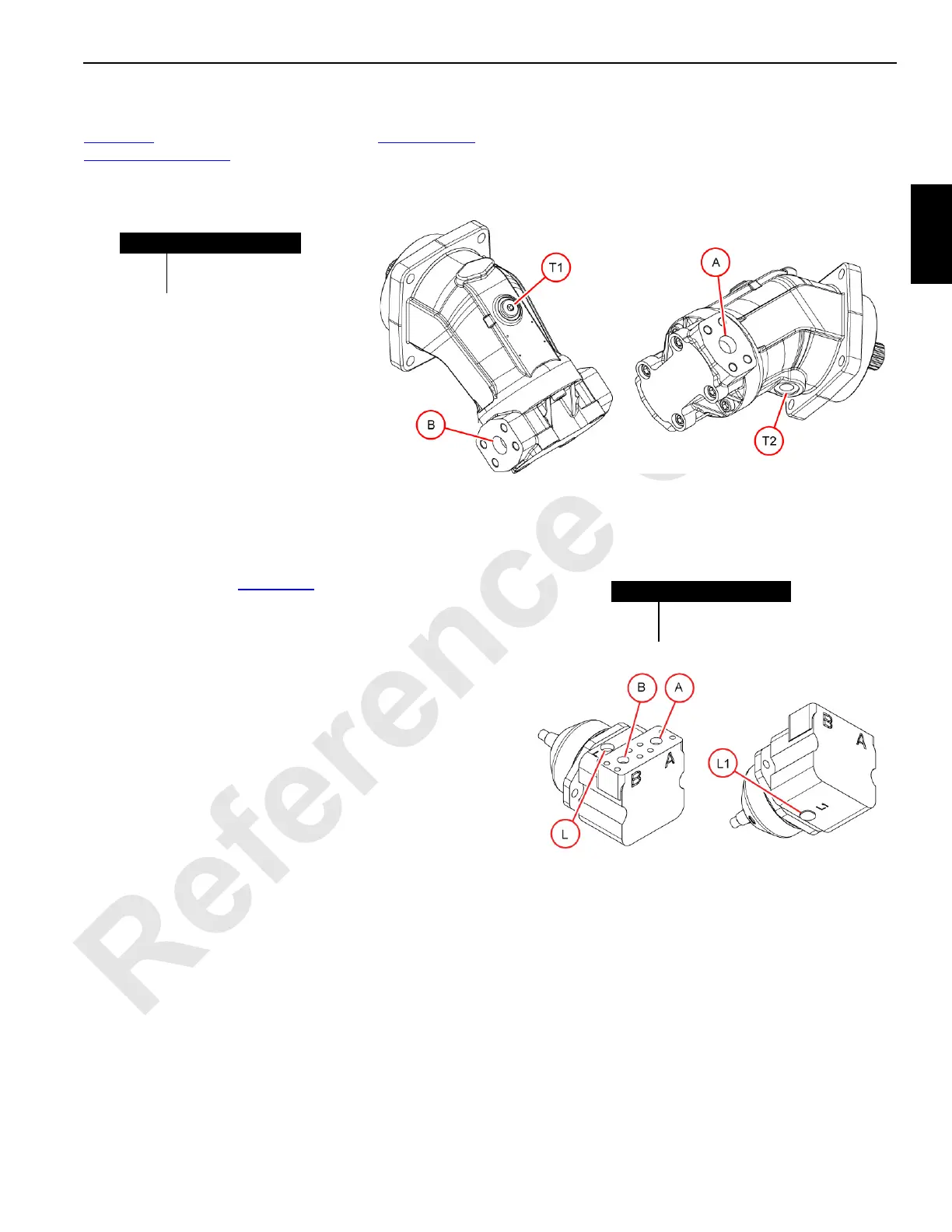

Figure 2-9. Swing Motor
M100912
Item Description
A, B Pressure Ports
T1, T2 Case Drain Ports
Figure 2-10. Cooling Fan Motor
M100913
Item Description
A, B Pressure Ports
L, L1 Case Drain Ports
