POWER TRAIN MLC165-1 SERVICE/MAINTENANCE MANUAL
7-2
Published 05-26-17, Control # 238-02
Loose Hold-Downs
Loose hold-downs will allow the battery to vibrate in the
holder. This can cause cracks or wear in the container and
cause the acid to leak. Leaking acid corrodes terminals and
cables, causing high resistance at the battery connections
which weakens the battery. Hold-downs can also distort or
crack the container.
Overloads
Avoid prolonged cranking or the addition of extra electric
devices. These can drain the battery and may cause
excessive heat.
Multiple Battery System
The crane’s 24V system is powered by two 12V batteries
connected in series (Figure 7-1
and Figure 7-4, page 7-5).
Always refer to the wiring diagram for the correct
connections. Be careful not to reverse the battery
connections. Installing the batteries with electrical
connections that are reversed will not only damage batteries
but also the crane’s electrical system, voltage regulator, and/
or alternator.
Maintenance
Checking Battery State-of-Charge
Special equipment is required to properly determine the
condition of a battery that has been in service. However, a
voltmeter can be used to determine a battery’s state-of-
charge by checking the voltage between the battery
terminals (Figure 7-2
) (Table 7-2).
This open-circuit test is the simplest test but not as accurate
in determining a battery’s condition as a hydrometer test.
The advantage is that the cell covers do not need to be
opened, eliminating the possibility of cell contamination and
electrolyte spill.
NOTE Do not use this test method if the battery has been
recently charged by a charger or alternator. Recent
charging places a high surface charge voltage
which is not a true indication of actual battery
voltage.

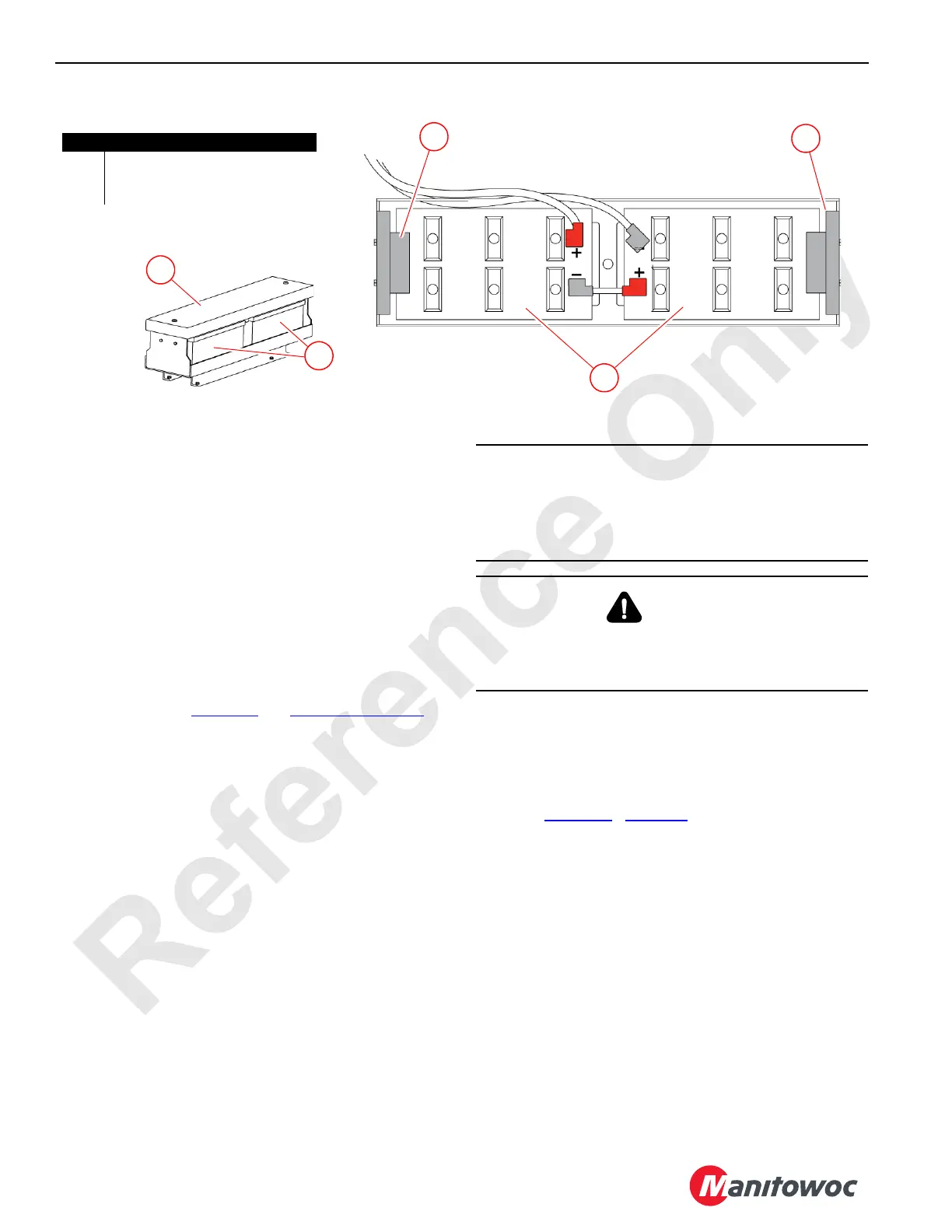

Figure 7-1. Batteries
Item Description
1 Battery Hold-Down
2 12V Batteries (connected parallel)
3 Battery Cover with Latches
1
1
2
2
3
M100704
M100706
CAUTION
Engine Damage!
To avoid possible engine faults and undesirable
operation, make sure the engine ignition switch has been
off five minutes before disconnecting the batteries.
WARNING
Personal Injury Hazard
Each battery weighs 130 lb (59 kg). Use proper lifting
procedures.
