Reference Only
HOISTS MLC165-1 SERVICE/MAINTENANCE MANUAL
5-28
Published 05-26-17, Control # 238-02

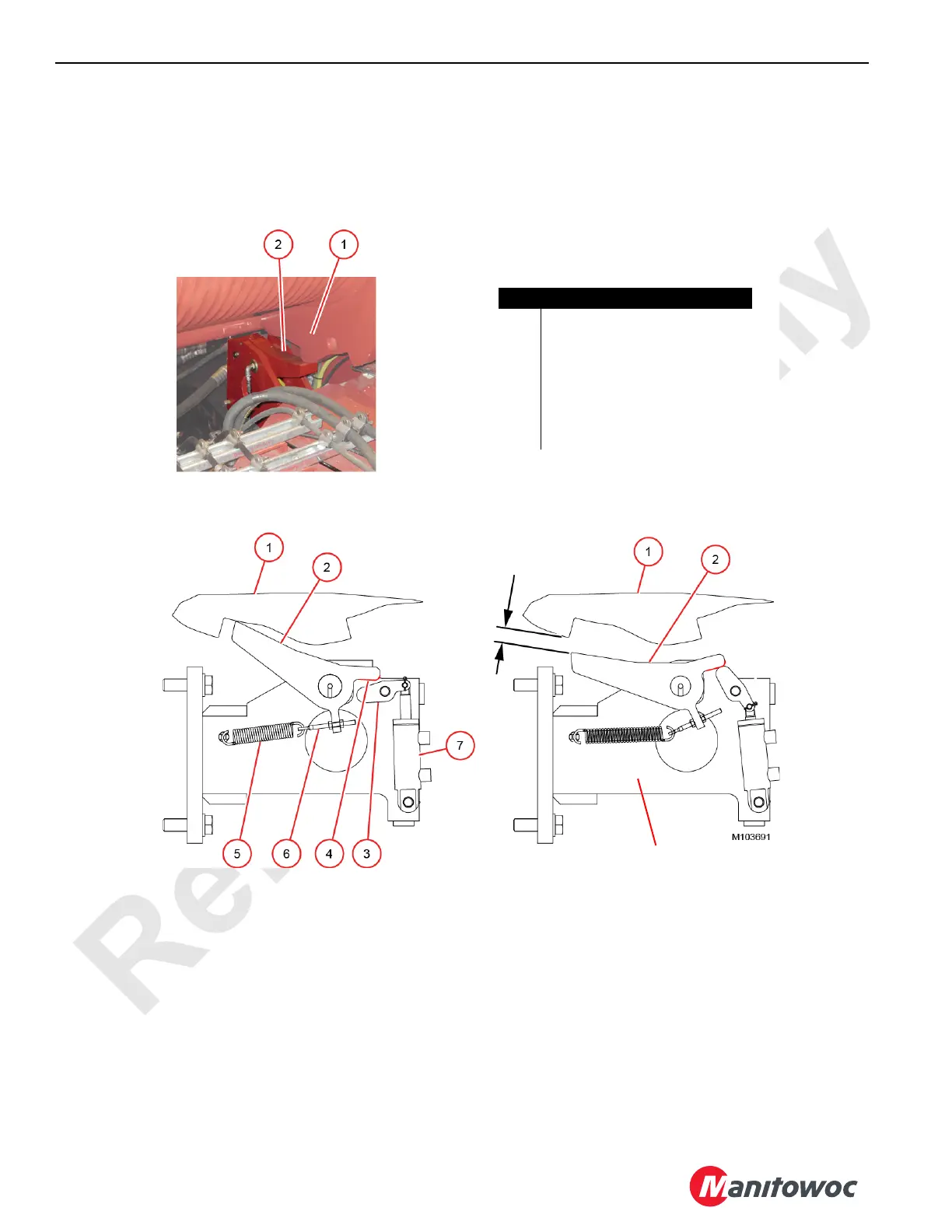

Figure 5-21. Drum 1 Pawl
Item Description
1 Drum Ratchet
2Pawl
3Cam
4 Apply grease to this area
5Spring
6 Eyebolt
7 Hydraulic Cylinder
View A
Bracket Broken
Away for Clarity
View B
View at Front of Rotating Bed
19/32 in (15 mm) to
1-1/16 in (27 mm)
