HOISTS MLC165-1 SERVICE/MAINTENANCE MANUAL
5-30
Published 05-26-17, Control # 238-02

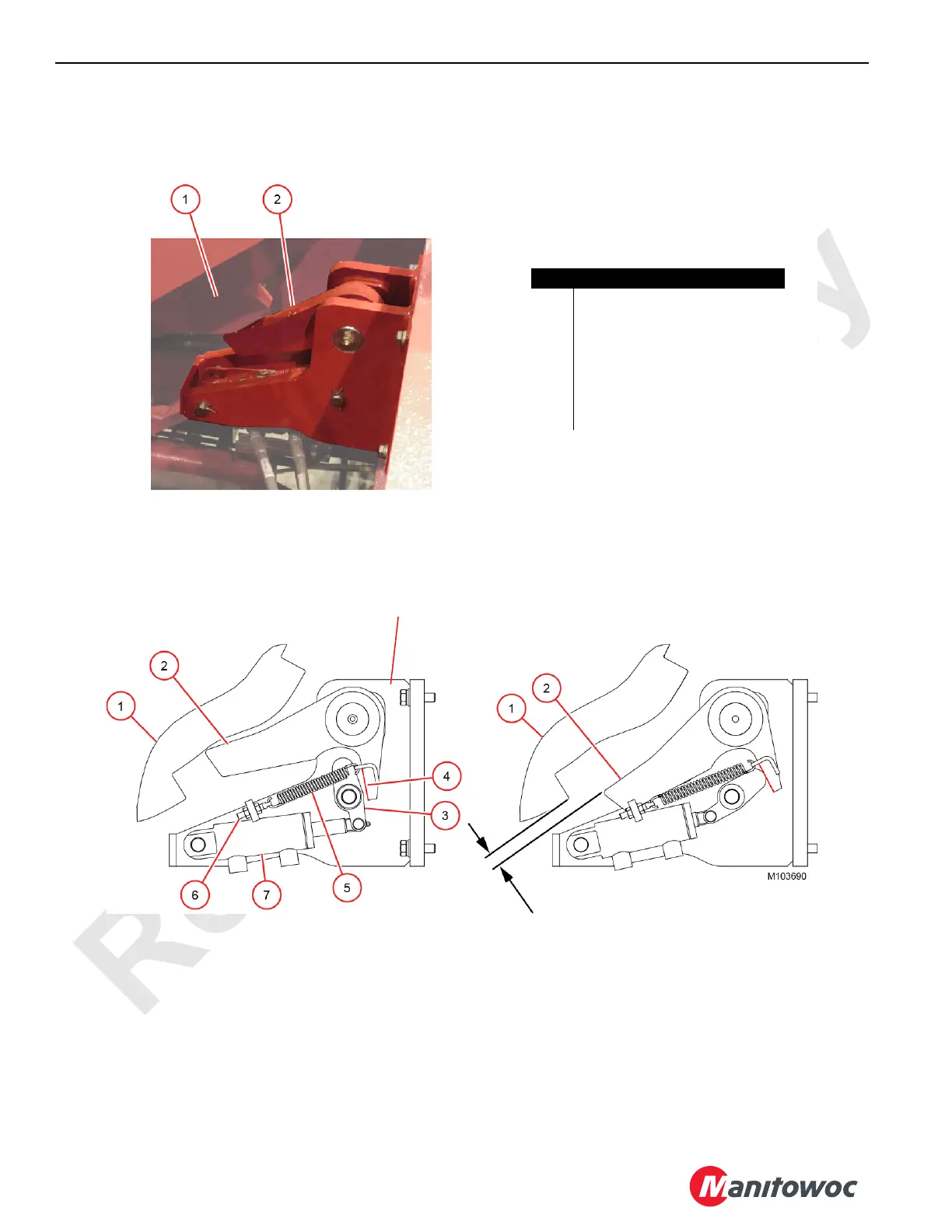

Figure 5-22. Drum 4 Pawl
Item Description
1 Drum Ratchet
2Pawl
3Cam
4 Apply grease to this area
5Spring
6 Eyebolt
7 Hydraulic Cylinder
View A
Bracket Broken
Away for Clarity
View B
View at Boom Hoist Drum on Top of Rotating Bed
7/16 in (11 mm) to
3/4 in (19 mm)
5-7/64 in
(130mm)
5-29/32 in
(150mm)
