HOISTS MLC165-1 SERVICE/MAINTENANCE MANUAL
5-36
Published 05-26-17, Control # 238-02
Limit Switch Wiring
Wire Color
Switch
Terminal
Function
Black 13 N/O
Green 14 24 VDC Supply
White 21 N/C
Blue 14-22 Jumper
M100747
Item Description
1 Auxiliary Drum
2 Bail Limit Rollers
3 Lever
4 Limit Switch Arm
5 Limit Switch
6 Spring (2)
7 Eyebolt (2)
8Screw (4)
9 Limit Switch Head
10 Limit Switch Cover
11 Limit Switch Shaft
12 Screw (9/64 in socket)
13 Screw and Washer (4)
14 Actuator Bracket
15 Cap Screw (2)
16 Cable Connector
A View of Rollers Against Bare Drum
B View of Limit Switch
C View of Wiring Inside Limit Switch

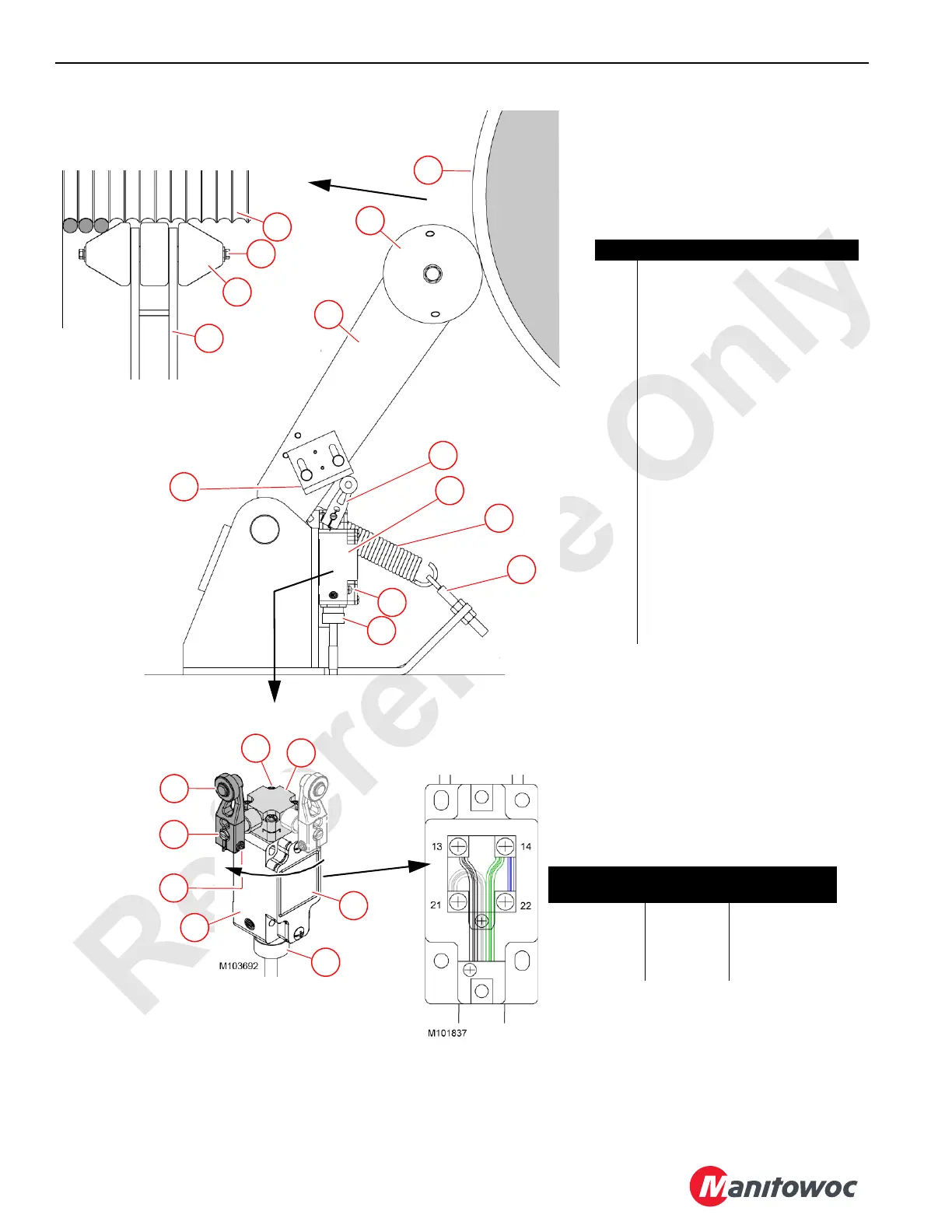

Figure 5-26. Minimum Bail Limit Assembly (Drum 3)
M100749
1
4
5
6
7
13
10
14
15
4
9
1
2
3
3
2
2
8
16
16
5
View A
View B
View C
11
12
