HOISTS MLC165-1 SERVICE/MAINTENANCE MANUAL
5-42
Published 05-26-17, Control # 238-02
Limit Switch Wiring
Wire Color
Switch
Terminal
Function
Black 13 N/O
Green 14 24 VDC Supply
White 21 N/C
Blue 14 to 22 Jumper
Item Description
1 Bail Limit Rollers
2 Cap Screw (2)
3Drum
4 Lever
5 Actuator
6 Spring (2)
7 Eyebolt (2)
8 Limit Switch Arm
9 Limit Switch
10 Screw, Nut, and Lock Washer (2)
11 Cable Connector
12 Screw (4)
13 Limit Switch Head
14 Limit Switch Shaft
15 Screw (9/64 in socket)
16 Limit Switch Cover
A View of Rollers Against Bare Drum
B View of Limit Switch
B View of Wiring Inside Limit Switch
3
9
6
7
10
16
8
3
4
1
15
12
2
1
5
8
13
14

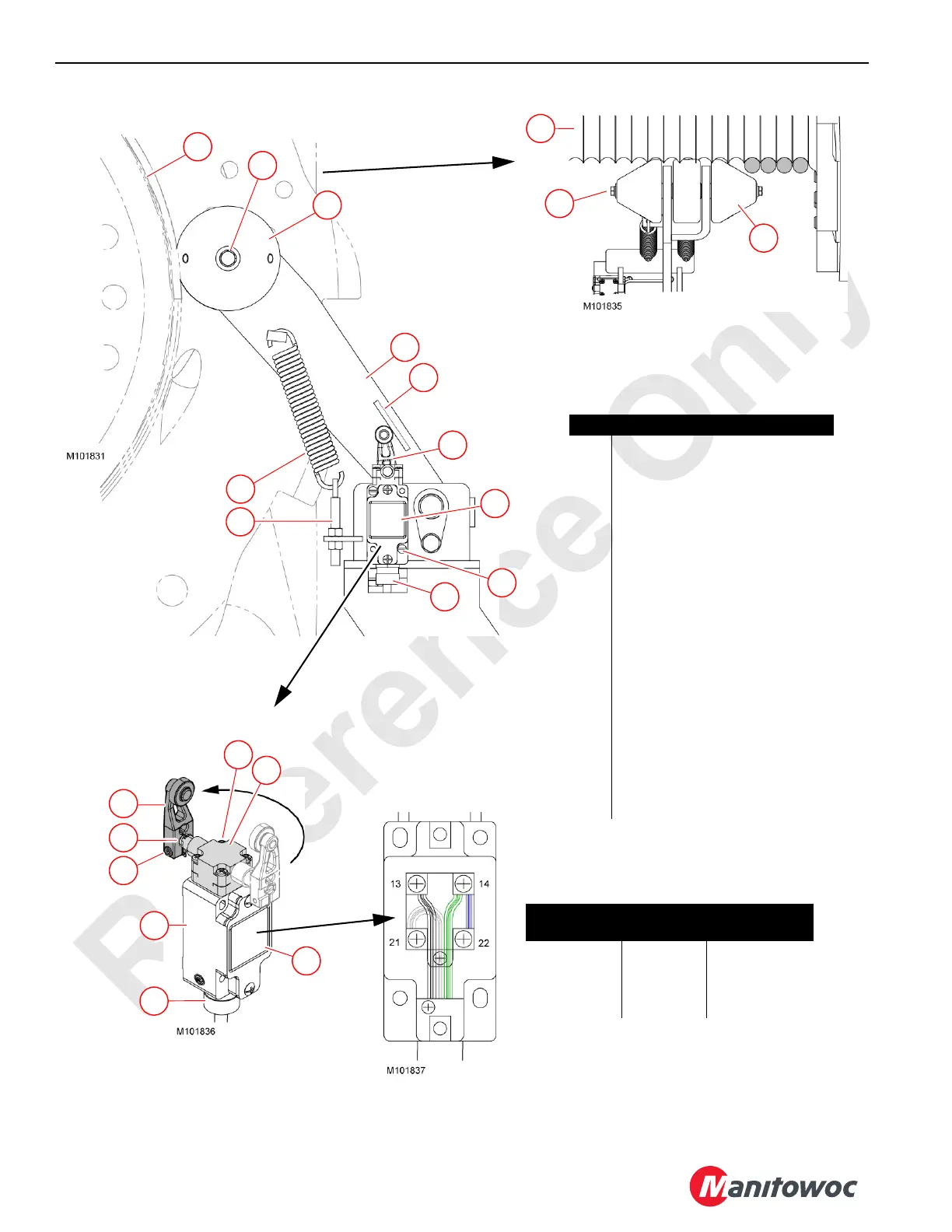

Figure 5-29. Minimum Bail Limit (Front or Rear Drum)
Front Drum Shown
Rear Drum Similar
2
11
11
9
View A
View B
View C
