10. Install the service cover (4), making sure the O-ring is in
place. Fasten the latches. The cover should go on
without extra force. Push the reset button on the service
indicator.
Never use the latches on the cover to force the filters
into the air cleaner. It is tempting to assume that the
cover will do the job of sealing the filter, but it will not.
Using latches to push filters in could damage the
housing and will void the warranty.

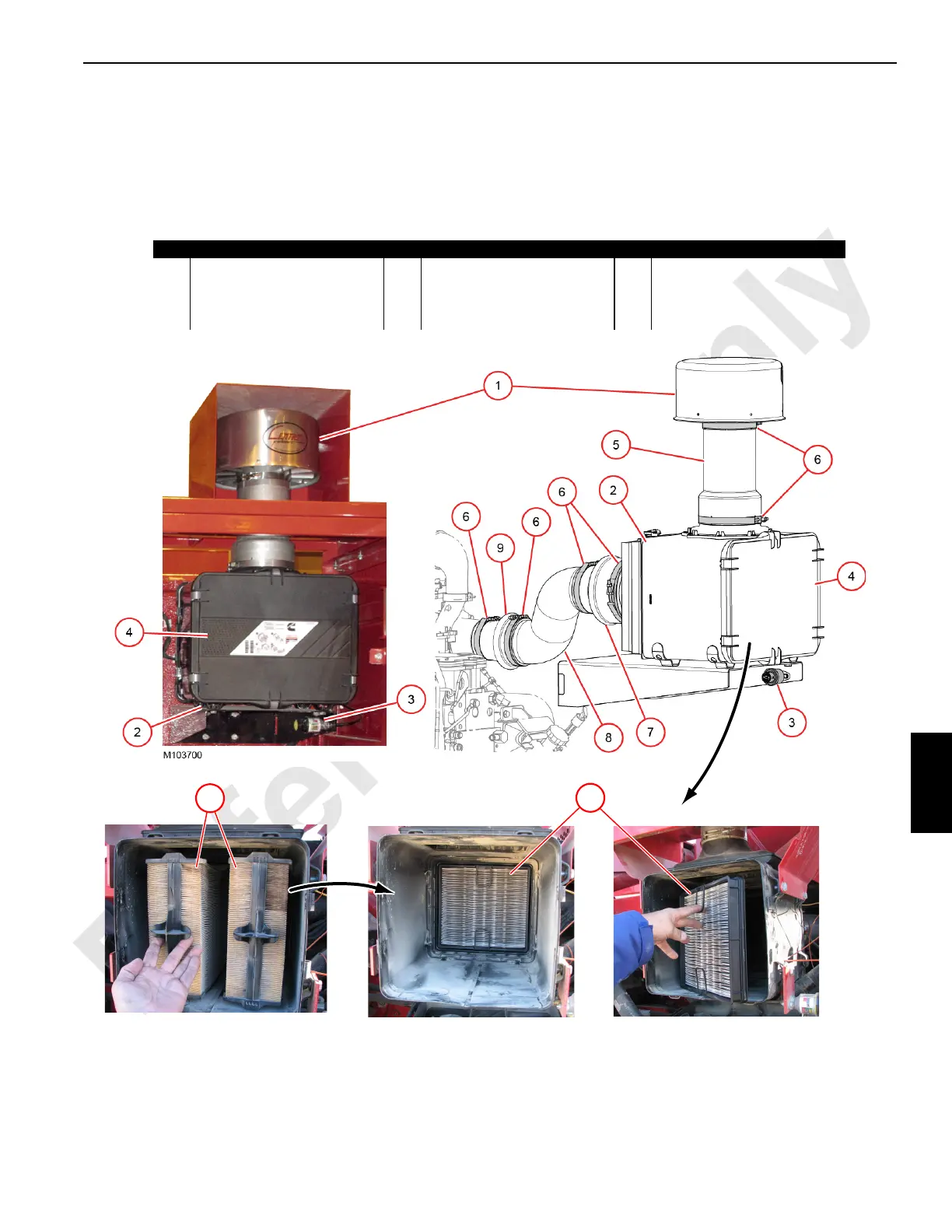

Figure 7-5. Air Cleaner
Item Description Item Description Item Description
1 Air Inlet Cap with Pre-Cleaner 5 Steel Tube 9 Rubber Reducer
2 Air Cleaner Housing 6 Clamp (6 at various sizes) 10 Primary Filter (2)
3 Service Indicator 7 Rubber Reducer 11 Secondary Filter
4 Service Cover 8 Steel Tube
M100769
