Manitowoc MLC165-1 Service Maintenance Manual

Reference Only
UNDER CARRIAGE MLC165-1 SERVICE/MAINTENANCE MANUAL
8-4
Published 05-26-17, Control # 238-02

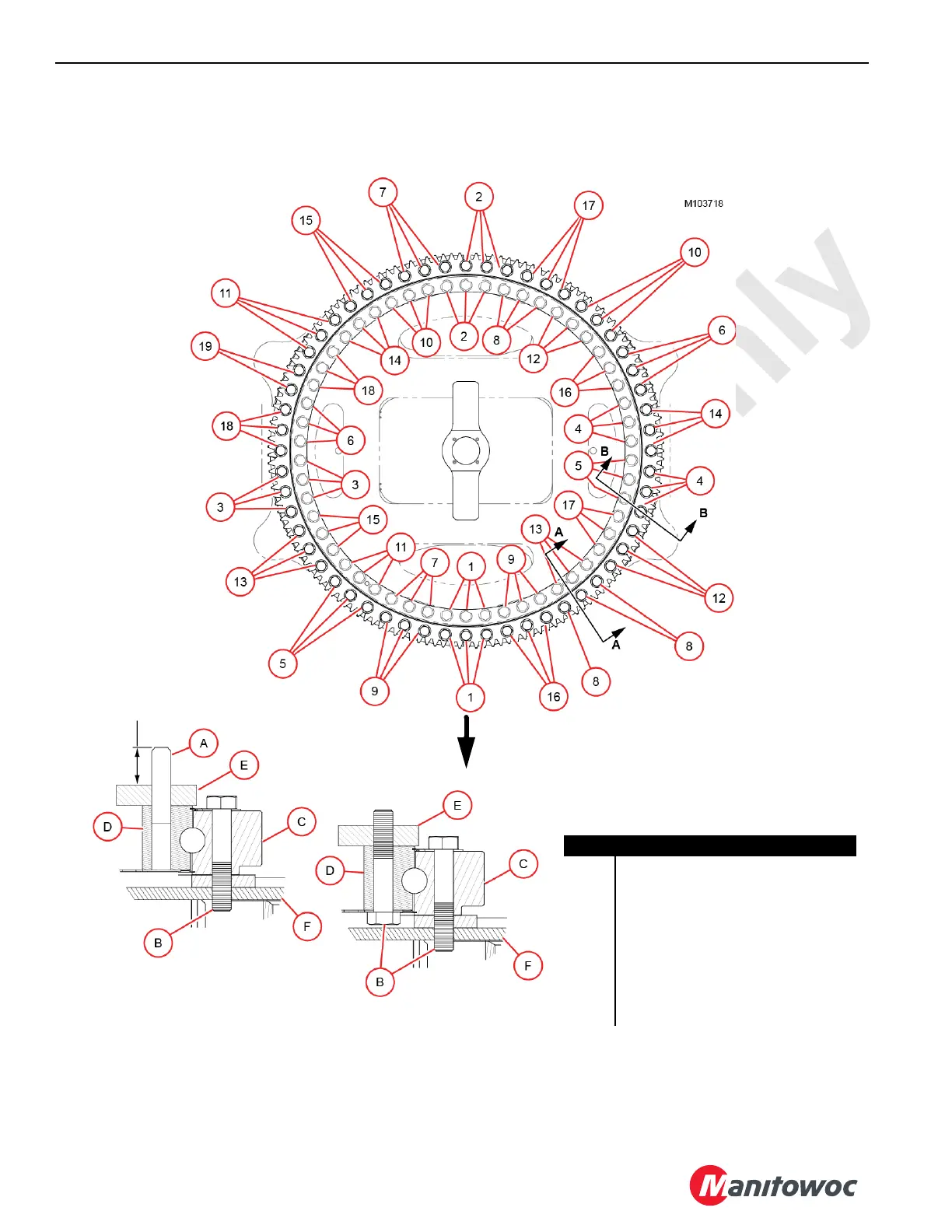

Figure 8-3. Turntable Bearing Bolts
Item Description
A Dowel Pin (2 places)
B 1-1/2 in 6 UNC x 8 in Long Grade 8 Bolt
with Flat Steel Washers
56 Places Outer Ring
54 Places Inner Ring
C Outer Ring
D Inner Ring
E Rotating Bed
F Carbody
31/32 in (50 mm)
View B-B
View A-A
Front of Rotating Bed
and Front of Carbody
