UNDER CARRIAGE MLC165-1 SERVICE/MAINTENANCE MANUAL

8-6

Published 05-26-17, Control # 238-02

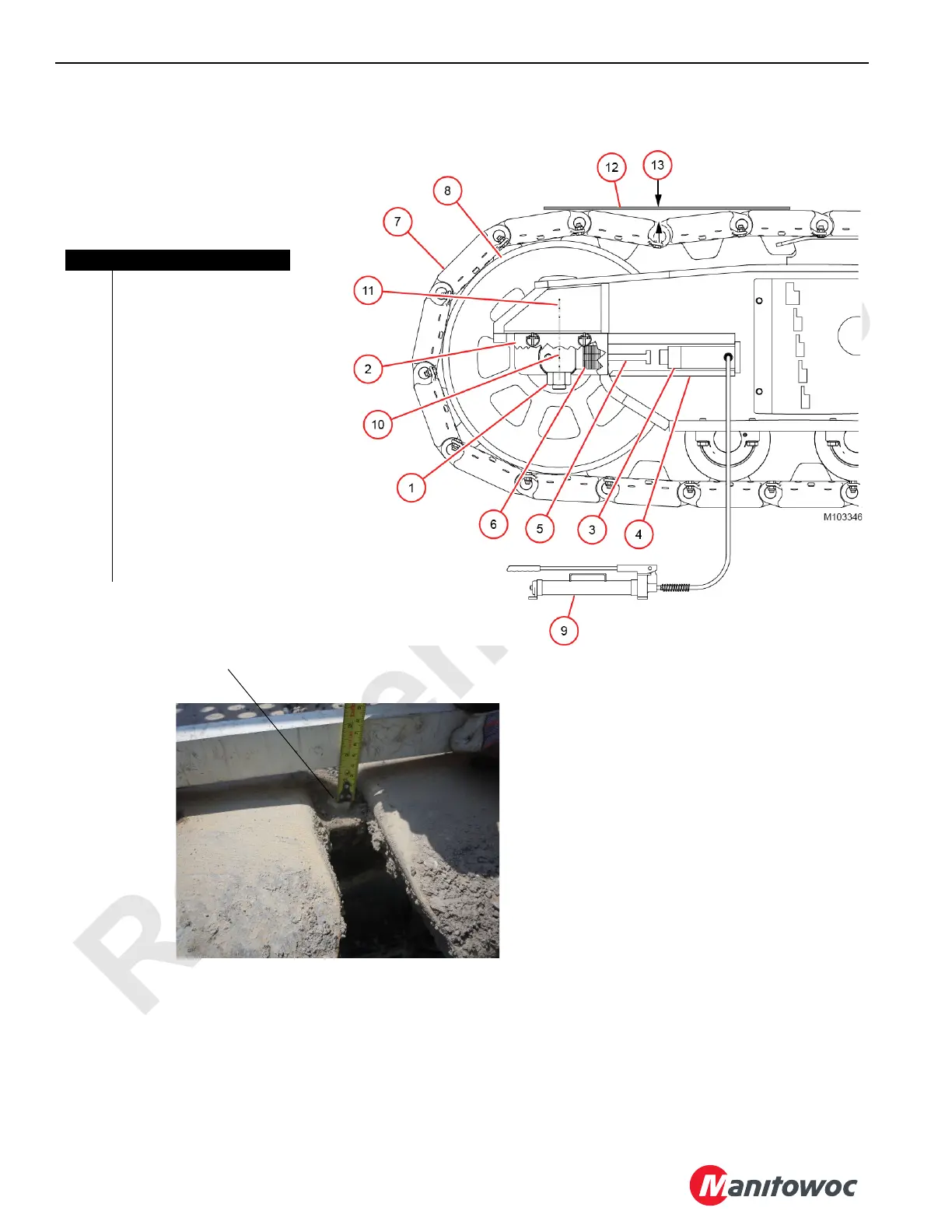

Figure 8-4. Crawler Slack Measurement and Adjustment

Item Description

1 Bolt and Nut

2 Cover

3 Jack Cylinder

4 Support

5Rod

6 Shim - 0.134 in (3,4 mm)

Shim 0.250 in (6,4 mm)

7 Tread

8 Front Crawler Roller

9 Hand Pump

10 Center Punch A

11 Center Punch Line B

12 Straight Edge

13 Gap:

1 in (25 mm) Tight Limit

2.2 in (55 mm) Loose Limit


Pin Keeper Bolt

See View B for items 12 and 13.

View A

View B
